Modular Valves

Knowledge Base

Learn More >

Versatility is the key when it comes to Clippard's Minimatic® Modular Valves. Available in an unlimited variety of directional, low, pressure and special control valves, each is encased in a body designed to mount and link together with a simple piping system. These Modular Valves are the supreme "Plug and Play" devices for pneumatic applications.

View PDF Catalog of Modular Valves
View Circuit Ideas and Applications
View Assembly Tips
View Octoport Key (manifold porting)

  3-Way Valves
Single-pilot, multi-pilot and delay pilot valves as well as specialty valves available in a multitude of configurations including Normally-Closed, Normally-Open and fully-ported,
  4-Way Valves
Single-pilot, multi-pilot and delay pilot valves as well as specialty valves available in a multitude of configurations including Normally-Closed, Normally-Open and fully-ported,
  Sequencing Valves
Sequence subplates used as an expansion unit. #10-32 port connections provided for signal inputs, supply and jumper connections for linking multiple boards together. Valves must be ordered separately.
  Additional Valves
A variety of specialty valves including electronic valves, flow control valves, shuttle valves and pulse valves.
  Accessories

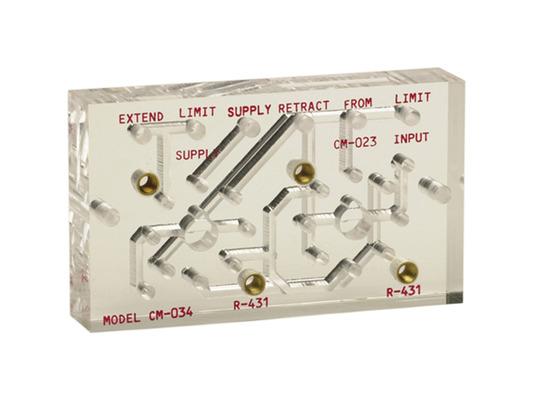

Mounting Subplates provide mounting for up to three modular valves, and provide various port options. Very compact size, lightweight, easy-tomount, and valves are easily replaced.



To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-77 of 77
R-101 Subplate, Interlocking, #10-32
R-305 3-Way, Spring Return, Fully-Ported Valve, Low Pressure
R-333 3-Way Delay In, Spring Return, Fully-Ported Valve
R-337 3-Way Spring Return, Fully-Ported, Piloted Valve
CM-036 Adapter Subplate - Double Module - 1/8"" Ports
R-334 3-Way Delay In, 2-Position. Fully-Ported Valve
R-355 Dual Normally-Open 3-Way Valves
R-338 3-Way, 2-Position, Fully-Ported, Double Piloted Valve
R-801 Filter Module, 25 Micron
R-482-12 4-Way 2-Position, Electronic Valve, 12 VDC
R-811 Octoport Connector
R-111 Subplate, Panel Mounting, #10-32
R-301 3-Way Spring Return, Fully-Ported Piloted Valve
R-311 3-Way Multiple Pilot, Spring Return Valve
R-315 3-Way Dual Pilot Valve
R-321 3-Way Combination Valve
R-322 3-Way Combination Valve
R-331 3-Way Delay In, Spring Return, Fully-Ported Valve
R-104-PKG Molded Octoport Gasket, Pack of 5
R-105-PKG #10-32 Screws & Lockwashers, Pack of 10
R-107-20-PKG 2" Standoff Kit, Pack of 4
R-302 3-Way, 2-Position Double-Piloted, Fully-Ported Valve
R-310 3-Way Memory Valve
R-312 3-Way Multiple Pilot Valve
R-323 3-Way Combination Valve
R-325 3-Way Low Pressure Combination Valve
R-332 3-Way Delay In, 2-Position, Fully-Ported Valve
R-352 Dual 3-Way Valve, Common Inlet
R-401 4-Way Valve, Spring Return, Pilot-Operated, Fully-Ported Valve
R-402 4-Way Valve, 5-Ported, 2-Position
R-405 4-Way Valve, 5-Ported, LP Pilot
R-410 4-Way, 5-Ported, Memory Valve
R-421 Dual 4-Way, 5-Ported, 3-Position
R-431 4-Way Spring Return, Fully-Ported, Twin Pilot Valve
R-433 4-Way Spring Return, Fully-Ported, Dual Pilot Valve,
R-434 4-Way 2 Position, Double Piloted Valve
R-451 4-Way Binary Trigger Valve
R-462 4-Way Double-Pilot, 2-Position, Fully-Ported, 6 Ported Valve
R-602 Dual Shuttles Valves, Independent
R-603 Dual Shuttles Valve, 3-Input
R-701 Pressure Regulator
R-436 Dual 4-Way, Twin Pilot Valve, 2-Position
R-441 4-Way Spring Return, Bleed Piloted Valve
R-442 4-Way Spring Return, Bleed Piloted Valve
R-445 4-Way Delay In & Out
R-454 4-Way Double-Piloted, Fully-Ported, 2-Position Delay Valve
R-461 4-Way Double-Pilot, Fully-Ported, 6-Ported Valve
R-465 4-Way 6-Ported, LP Pilot
R-472 4-Way 2 Position, Fully-Ported Amplified Pilot Valve
R-501 Flow Control & Volume Valve
R-502 Flow Control & Volume Valve
R-614 Modular Valve with 4 Check Valves
R-932 Sequence Valve
CM-025 Subplate for R-932 Sequencing System (2 Valves)
R-324 3-Way Combination Valve
R-412 4-Way, 5-Ported, Memory Valve
R-353 Dual 3-Way, 3-Input "And"
R-343 3-Way Delay Out, Spring Return, Fully-Ported Valve
R-351 Dual 3-Way Valves, Independent
R-341 3-Way Delay Out, Spring Return, Fully-Ported Valve
R-443 4-Way Delay Out, Screw Adjustment
R-314 3-Way Multiple Pilot Valve
R-432 4-Way 2 Position, Fully-Ported, Double Pilot Valve
R-453 4-Way Spring Return, Fully-Ported, 5 Port, Delay In Valve
R-471 4-Way Spring Return, Fully-Ported Amplified Pilot Valve
CM-035 Subplate for R-932 Sequencing System (4 valves)
CM-037 Adapter Subplate - Triple Module - 1/8"" Ports
R-821 1.2 Cubic Inch Volume Chamber
R-482-24 4-Way 2-Position, Electronic Valve, 24 VDC
CM-04 Universal #10-32 Subplate
R-711 Pulse Valve
CM-02 Adapter Subplate - Single Module, 1/8" Ports
R-481-12 4-Way Spring Return, Electronic Valve, 12 VDC
R-481-24 4-Way Spring Return, Electronic Valve, 24 VDC
CM-024 Subplate for R-932 Sequencing System (5 Valves)
CM-026 Subplate for R-932 Sequencing System (3 Valves)
CM-027 Subplate for R-932 Sequencing System (1 Valve)
