| Max PSI | 120 PSIG |
|---|---|
| Temperature Range | 30 to 180°F |
| Weight (lbs.) | 0.2100 |
Notes
2 3/4. Valves must be ordered separately.
Uses

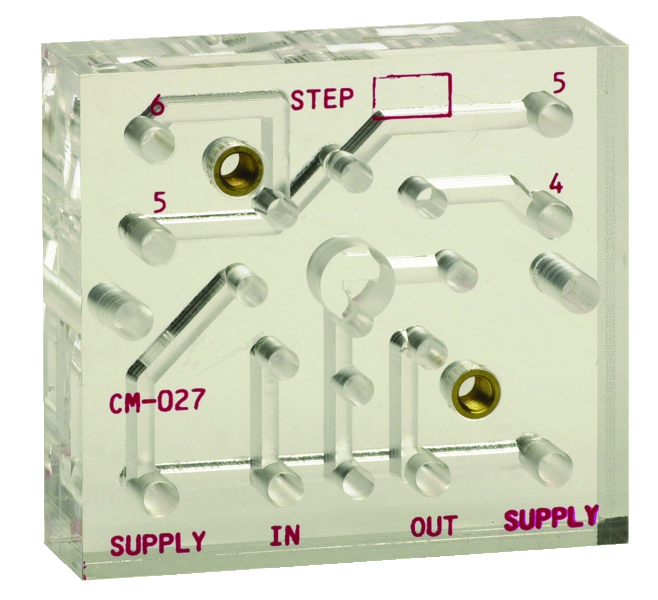

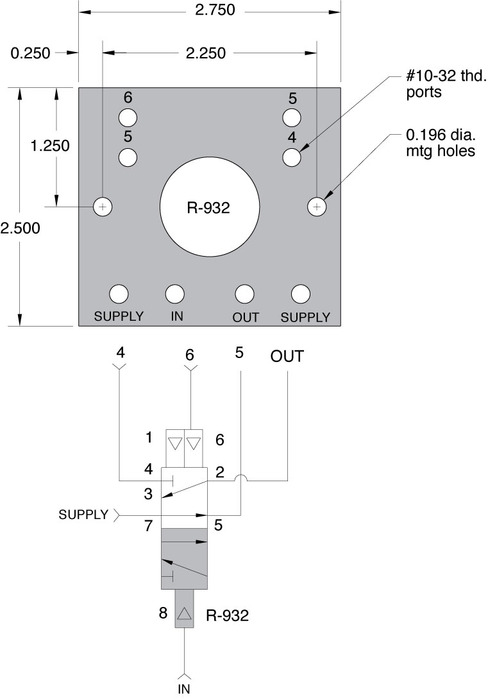

Single valve sequence subplate used as an expansion unit. 10-32 port connections provided for signal inputs, step outputs, supply and jumper connections for linking multiple boards together.
