R-305

More Views

R-305

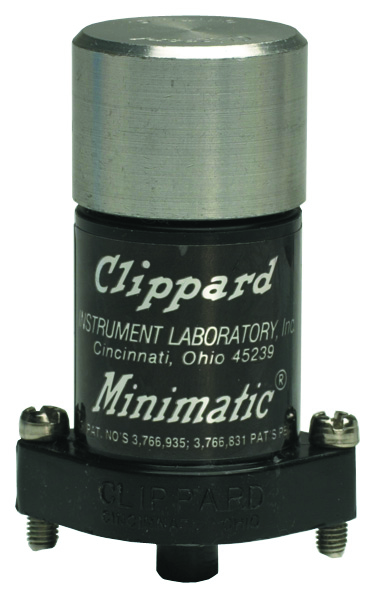

3-Way, Spring Return, Fully-Ported Valve, Low Pressure
Estimated to ship within 1 to 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.3200
Get CAD files:

Notes

Minimum Pilot Pressure: 15 psig

Uses

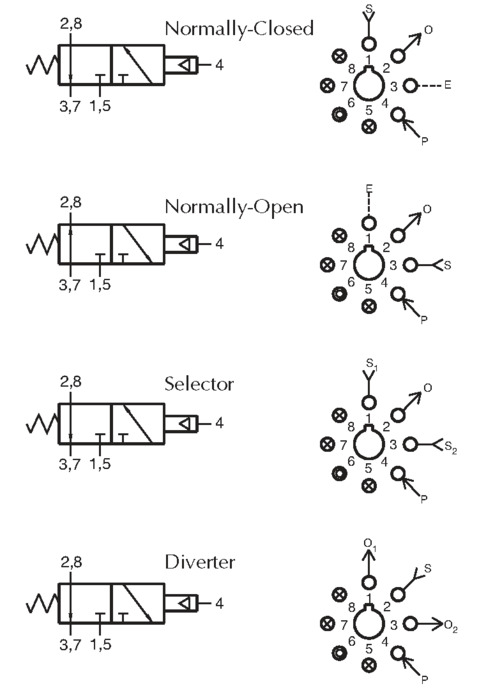

R-305 is a 3-way, spring-retrun fully ported valve with a low pressure pilot. Pilot pressure signals as low as 10 psi will actuate the valve. The valve can be used normally-OPEN, normally-CLOSED, as a Selector or as a Diverter. The R-305 may be used in
