Air Pilot Valves

Knowledge Base

Learn More >
Air pilot valves are ideal for reliable and simple control. The force output of an air pilot is much more powerful than the power produced from electrical solenoids or actuators. This makes air pilot valves versatile for remote applications where higher air flow and/or lower power are required as well as when simplicity and cost savings are important. These products include many styles of air pilot and modular series along with a variety of acrylic piped manifolds and convenient, compact circuit models.
  Low Pressure Air Pilot Valves
The term low pressure is a relative term. These series of valves can sense pressure down to 1.5" H20 and actuate amplifier valves that will give out put pressure of 150 psi and over 25 scfm to cover most high flow miniature pneumatic applications.
  Miniature Brass Air-Piloted Valves
The PAV Series Normally-Open or Normally-Closed 2-Way valves incorporate an integral pilot actuator that provides a compact assembly and simple installation. The internal valving is identical to the MAV-2 or MAVO-2. They are ideal for remote and miniature applications which require higher air flow and/or lower power.
  Air Pilot Valve Actuators

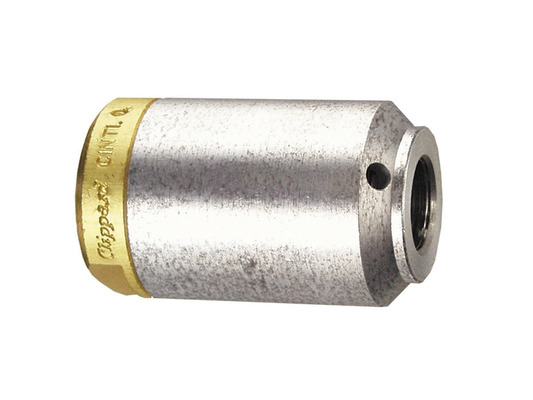

Air Pilot Valve Actuators thread onto the tops of Clippard miniature 2-way, 3-way, and 4-way valves to provide fast pilot actuation from a pneumatic signal. They permit wide circuit flexibility and minimize cost, hazards and complexity by allowing many control functions to be accomplished pneumatically.
  Modular Valves

Versatility is the key when it comes to Clippard's Minimatic® Modular Valves. Available in an unlimited variety of directional, low, pressure and special control valves, each is encased in a body designed to mount and link together with a simple piping system. These Modular Valves are the supreme "Plug and Play" devices for pneumatic applications.

  Maximatic Air Pilot Valves

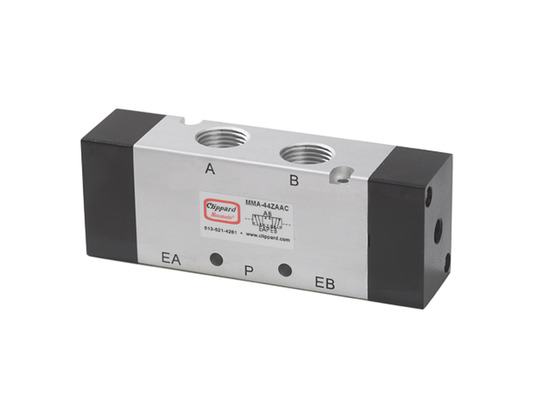

Maximatic® Air Pilot Valves are spool type valves with single or double air pilots. They have a 1/8" NPT external pilot port and feature pressure ranges from 0 to 124 psig. Maximatic® Air Pilot Valves are available in 3-way or 4-way configurations, in port sizes from #10-32 thread to 1/2" NPT.

® Maximatic is a registered trademark of Clippard Instrument Laboratory, Inc.




To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

Need help? Contact Us >

Part No.
Product Description 1-100 of 144 Page: 1 ->2
CM-025 Subplate for R-932 Sequencing System (2 Valves)
M-2012-VAC Pow-R-Amp Vacuum Control Valve
2012-G Pow-R-Amp Glue Valve
2013-12 12 VDC Electronic Fluidamp Valve
CM-024 Subplate for R-932 Sequencing System (5 Valves)
M-MPA-7 Air Pilot Actuator, 7/8" Bore, G1/8 Inlet
M-MPA-3P Air Pilot Actuator, G3/8 Bore, G1/8 Inlet
R-711 Pulse Valve
2012 Pow-R-Amp Control Valve
R-482-12 4-Way 2-Position, Electronic Valve, 12 VDC
MMA-33WAS 3/8" 3-Way Single Air Pilot Spring Return Valve
MMA-31PAS 1/8" 3-Way Single Air Pilot Spring Return Valve
MMA-32QAS 1/4" 3-Way Single Air Pilot Spring Return Valve
MMA-34ZAS 1/2" 3-Way Single Air Pilot Spring Return Valve
MMA-31NAA #10-32 3-Way Double Air Pilot Valve
MMA-31NAS #10-32 3-Way Single Air Pilot Spring Return Valve
MMA-31PAA 1/8" 3-Way Double Air Pilot Valve
MMA-32QAA 1/4" 3-Way Double Air Pilot Valve
MMA-33WAA 3/8" 3-Way Double Air Pilot Valve
MMA-34ZAA 1/2" 3-Way Double Air Pilot Valve
MMA-41NAA #10-32 5 Port 4-Way Dbl. Pilot Actuated Air Valve
MMA-43WAS 3/8" NPT 5 Port 4-Way Air Pilot Valve
MMA-41PAAP 1/8" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Pres Center
MMA-41PAA 1/8" NPT 5 Port 4-Way Dbl. Pilot Actuated Air Valve
MMA-43WAAC 3/8" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Closed Center
MMA-41PAS 1/8" NPT 5 Port 4-Way Air Pilot Valve
MMA-43WAA 3/8" NPT 5 Port 4-Way Dbl. Pilot Actuated Air Valve
MMA-43WAAE 3/8" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Exhaust Center
MMA-41NAAC #10-32 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Closed Center
MMA-41NAAE #10-32 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Exhaust Center
MMA-41NAAP #10-32 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Pres Center
MMA-41NAS #10-32 5 Port 4-Way Air Pilot Valve
MMA-41PAAC 1/8" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Closed Center
MMA-42QAA 1/4" NPT 5 Port 4-Way Dbl. Pilot Actuated Air Valve
MMA-42QAAC 1/4" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Closed Center
MMA-42QAAE 1/4" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Exhaust Center
MMA-42QAAP 1/4" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Pres Center
MMA-43WAAP 3/8" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Pres Center
MMA-44ZAA 1/2" NPT 5 Port 4-Way Dbl. Pilot Actuated Air Valve
MMA-44ZAAC 1/2" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Closed Center
MMA-44ZAAE 1/2" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Exhaust Center
MMA-44ZAAP 1/2" NPT 5 Port 4-Way Spring Ctr. Dbl. Pilot Actuated Air Valve w/Pres Center
MMA-44ZAS 1/2" NPT 5 Port 4-Way Air Pilot Valve
2010-050 Mounting Bracket Kit
R-333 3-Way Delay In, Spring Return, Fully-Ported Valve
M-2012 Pow-R-Amp Control Valve
R-334 3-Way Delay In, 2-Position. Fully-Ported Valve
MPA-7N Air Pilot Actuator, 7/8" Bore, #10-32 Inlet
MPA-10P Air Pilot Actuator, 1 1/4" Bore, 1/8" NPT Inlet
MPA-3P Air Pilot Actuator, 3/8" Bore, 1/8" NPT Inlet
MPA-5P Air Pilot Actuator, 5/8" Bore, 1/8" NPT Inlet
MPA-7 Air Pilot Actuator, 7/8" Bore, 1/8" NPT Inlet
R-337 3-Way Spring Return, Fully-Ported, Piloted Valve
PAVO-3 3-Way Air-Piloted N-O Spool Valve, #10-32
PAV-2 2-Way Air-Piloted N-C Poppet Valve, #10-32
PAV-2P 2-Way Air-Piloted N-C Poppet Valve, 1/8" NPT
PAV-3 3-Way Air-Piloted N-C Poppet Valve, #10-32
PAVO-2 2-Way Air-Piloted N-O Spool Valve, #10-32
PAVO-2P 2-Way Air-Piloted N-O Spool Valve, 1/8" NPT
PAVO-3P 3-Way Air-Piloted N-O Spool Valve, 1/8" NPT
R-355 Dual Normally-Open 3-Way Valves
R-338 3-Way, 2-Position, Fully-Ported, Double Piloted Valve
R-801 Filter Module, 25 Micron
R-811 Octoport Connector
R-331 3-Way Delay In, Spring Return, Fully-Ported Valve
R-315 3-Way Dual Pilot Valve
R-111 Subplate, Panel Mounting, #10-32
R-301 3-Way Spring Return, Fully-Ported Piloted Valve
R-311 3-Way Multiple Pilot, Spring Return Valve
R-305 3-Way, Spring Return, Fully-Ported Valve, Low Pressure
R-322 3-Way Combination Valve
R-321 3-Way Combination Valve
R-104-PKG Molded Octoport Gasket, Pack of 5
R-105-PKG #10-32 Screws & Lockwashers, Pack of 10
R-302 3-Way, 2-Position Double-Piloted, Fully-Ported Valve
R-310 3-Way Memory Valve
R-312 3-Way Multiple Pilot Valve
R-323 3-Way Combination Valve
R-325 3-Way Low Pressure Combination Valve
R-332 3-Way Delay In, 2-Position, Fully-Ported Valve
R-352 Dual 3-Way Valve, Common Inlet
R-107-20-PKG 2" Standoff Kit, Pack of 4
R-701 Pressure Regulator
R-462 4-Way Double-Pilot, 2-Position, Fully-Ported, 6 Ported Valve
R-401 4-Way Valve, Spring Return, Pilot-Operated, Fully-Ported Valve
R-431 4-Way Spring Return, Fully-Ported, Twin Pilot Valve
R-451 4-Way Binary Trigger Valve
R-603 Dual Shuttles Valve, 3-Input
R-410 4-Way, 5-Ported, Memory Valve
R-602 Dual Shuttles Valves, Independent
R-402 4-Way Valve, 5-Ported, 2-Position
R-405 4-Way Valve, 5-Ported, LP Pilot
R-421 Dual 4-Way, 5-Ported, 3-Position
R-433 4-Way Spring Return, Fully-Ported, Dual Pilot Valve,
R-434 4-Way 2 Position, Double Piloted Valve
R-436 Dual 4-Way, Twin Pilot Valve, 2-Position
R-441 4-Way Spring Return, Bleed Piloted Valve
R-442 4-Way Spring Return, Bleed Piloted Valve
R-445 4-Way Delay In & Out
R-454 4-Way Double-Piloted, Fully-Ported, 2-Position Delay Valve
Modular Valve Line Overview Modular Valves are quite simple compared to other pneumatic components when you examine the elements that make up the line of products.  Essentially there are only 3 base valves and 18 different ways to actuate the base valve.  These combinations give a variety of versatile valve elements that broaden the possibilities when designing a pneumatic circuit.  These valves are the ideal manifold mounted solution to pneumatic circuit applications. View All Modular Valves View PDF Catalog of Modular Valves
Clippard JPC Series Check Valves Check valves can be opened with an air pilot signal to permit free flow in the normally "checked" direction.
Clippard Maximatic® Valves & FRLs Clippard's Maximatic Line includes air and electric valves as well as FRLs, Regulators, Lubricators and Filters.
Clippard Miniature Whisker Valve Clippard's MWV is a 2-way, Normally-Closed miniature whisker valve for use with bleed pressure piloted control circuits.
Air Pilot Actuator Selection     MPA series air pilot actuators attach to the top of our miniature 2-Way, 3-Way, and 4-Way valves and electric switches via a #15/32-32 mounting thread to provide pressure pilot actuation from a pneumatic signal.     Minimum Pilot
Air Flow Calculator Easily convert flow in gallons, liters, cubic feet, cubic yards, cubic centimeters, cubic meters, and more to calculate air flow...
/
The Pros and Cons of Air-Piloted Pinch Valves vs. Direct Acting Pinch Valves Lean about the advantages and drawbacks of air piloted and direct acting pinch valves.
How Do Pilot-Operated Check Valves Work? How Do Pilot-Operated Check Valves Work?
An Alternative to Intrinsically Safe Valves Learn how air pilot valves can provide a useful, cost-effective solution for applications in hazardous environments...
How to Combine Multiple Valves with Different Functions onto a Single Manifold Video demonstrates how to mount multiple valves with various functionality onto a single manifold.
Video: SAS/MAS Air to Electric Switches Learn more about Clippard’s sub-miniature (SAS) and miniature (MAS) air-actuated electrical switches in this product overview video...
How to Auto Cycle a Double Acting Cylinder Without Limits Cycling a double acting cylinder is necessary in many applications, including: agitators, product life testing, reciprocating pumps and manufacturing processes. Clippard's VA-06 control module makes this easy. The VA-06 kit includes tubing and an acrylic manifold with the valves already mounted on it. Hook-up is easy—just connect supply pressure to the port labeled supply, and connect the cylinder extend and cylinder retract to the double acting cylinder. Turn the air on, flip the toggle, and make cylinder speed and delay adjustments as desired. The VA-06 control module is incredibly versatile due to the fact that it cannot only control the speed that the cylinder actuates, but can also control delays at the end of the stroke.
/
