R-431

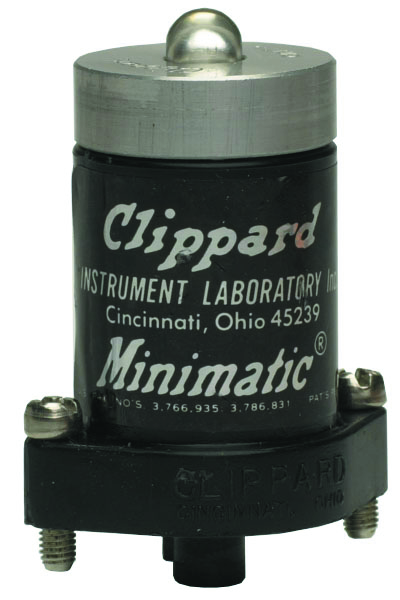

4-Way Spring Return, Fully-Ported, Twin Pilot Valve
Estimated to ship within 1 to 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.3200
Get CAD files:

Notes

Minimum Pilot Pressure: 40 psig

Uses

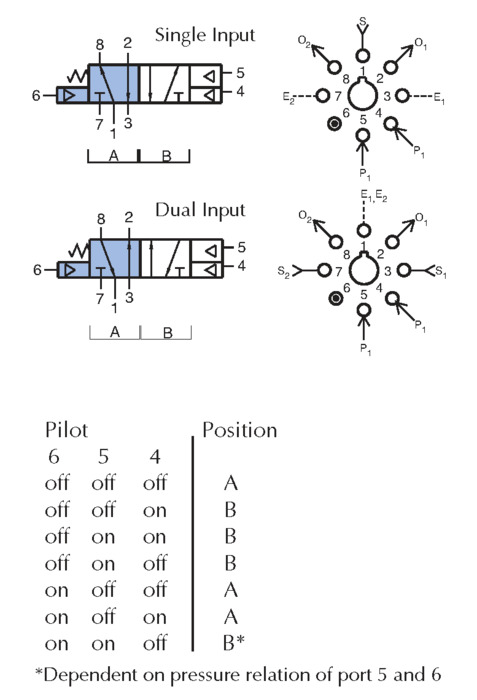

R-431 is a 5 orted, 4-way valve, with spring return and dual pilots. When ports 5 and 2 are connected,a momentary pilot signal at port 4 will shift the valve to the
