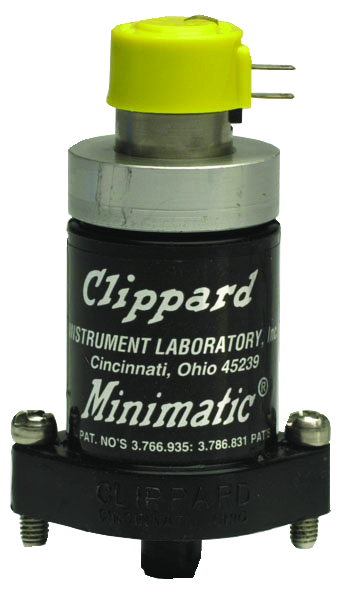

R-481-12

4-Way Spring Return, Electronic Valve, 12 VDC
Estimated to ship within 12 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Power Consumption0.65 watt
Temperature Range32 to 180°F
Voltage12 VDC
Weight0.5500
Get CAD files:

Notes

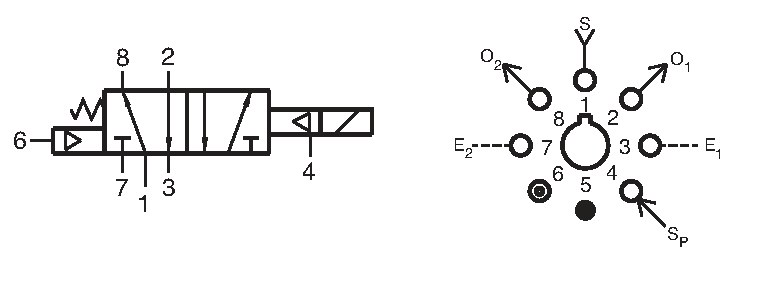

Supply pressure must be applied to both ports 1 and 4. Minimum pressure on port 4 should be 40 psig.

Uses

R-481 is a fully ported 4-way valve. It is essentially a hybrid valve consisting of the R-401 valve and the Clippard ET-3 electronic valve. The ET-3 responds to low current, low voltage signals and pneumatically actuates the R-401 4-way valve attached.
