R-405

More Views

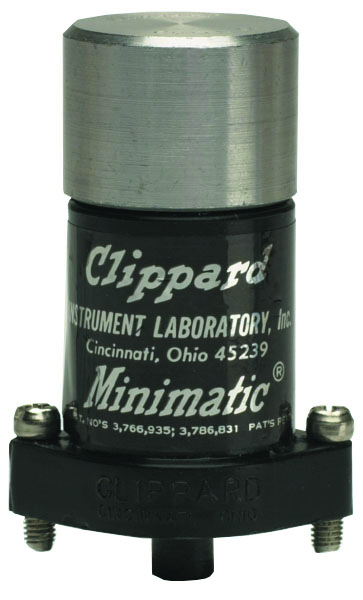

R-405

4-Way Valve, 5-Ported, LP Pilot
call for lead time
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Reach out to your local distributor for application support and specialized pricing.
Air Flow250 l/min @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight (lbs.)0.3200
Generate PDF Data Sheet
Get CAD files:

Notes

Minimum Pilot Pressure: 15 psig

Uses

R-405 is a 4-way, spring-return, fully ported 5-port valve with a low pressure pilot. Pilot pressures as low as 10 psi will actuate the valve. It can perform all 2,3, and 4-way functions. Operates double action cylinders, allows speed control by restr
