Stainless Steel Cylinders

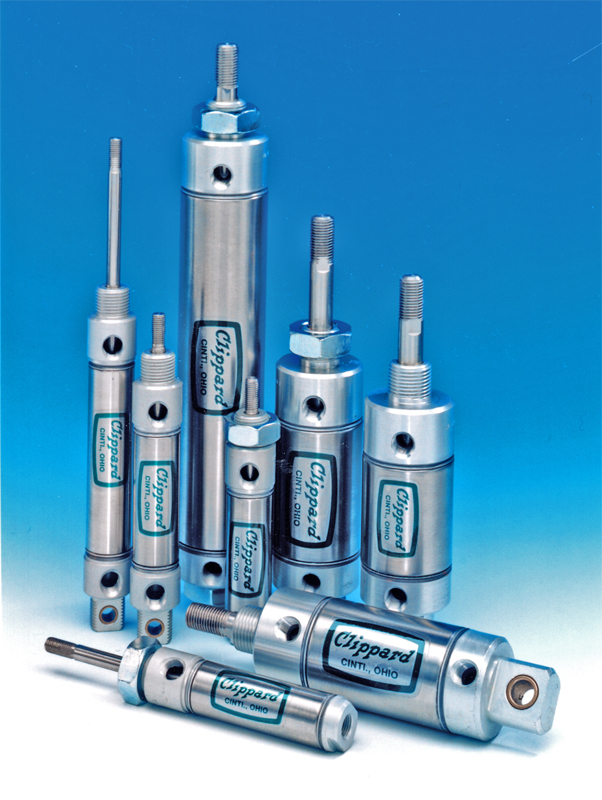

Clippard Stainless Steel Cylinders

In 1949, Clippard introduced miniature pneumatic cylinders and valves to industry. No other manufacturer can boast of the same experience or knowledge of miniature components.

Air cylinders have always been an integral part of the Clippard Minimatic® line. Over the years Clippard has responded to requests from cylinder users to provide additional sizes of air cylinders and auxiliary support products. While competitively priced, these products maintain the Clippard standard for quality and reliability that has been the industry standard for many years.

Proudly Made in the USA.

Cylinder Interchange Guide

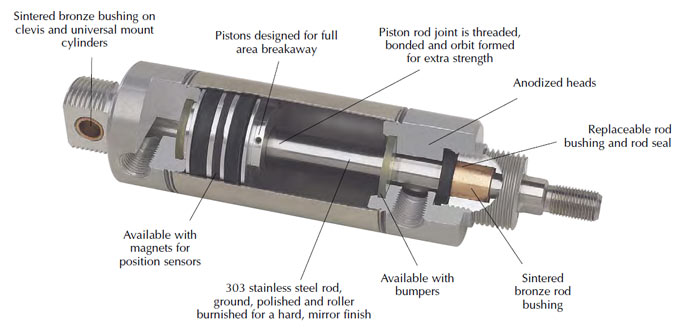

Features

• Polished I.D. 304 stainless steel tubes
  for low breakaway
• Precision rolled construction for a solid,
  leakproof cylinder at a reasonable price
• Cylinder heads are machined from one side
  for better concentricity
• Rods are threaded, bonded and orbit formed
  to pistons
• Ground, polished and roller burnished 303 stainless
  rods provide a smoother rod finish that protects
  rod seals, providing longer life
• Full piston area breakaway to assure full power
  from the beginning of each stroke
• Nitrile "U"-cup piston seals for full power,
  low friction and trouble-free performance
• Nitrile "U"-cup rod seals for leakproof operation

• Sintered bronze rod bushing
• Sintered bronze clevis bushing on all clevis
  and universal mount cylinders

• Temperature range: 32 to 230°F
• Maximum pressure: 250 psig
