Electronic Valves



Spider Valve Technology

Spider Valve Technology
  • High reliability
  • Exceptional life
  • Extremely low leak
  • High speed

Invented and patented by Clippard, this deceptively simple design features only one moving part with a mere 0.007" of travel. The spider is an armature spring that undergoes a variety of proprietary processes, including the individual calibration of each spider to its valve. Clippard's experience, quality, and specialized processes surrounding spider technology have led EV valves to become the industry standard for valve life, reliability, response, and extremely low leak rates.

EV Series

EV Series
EVP Proportional


DV Series

DV Series
DVP Proportional


SV/ST Series 7 and 8 mm

ST Series
SV Series

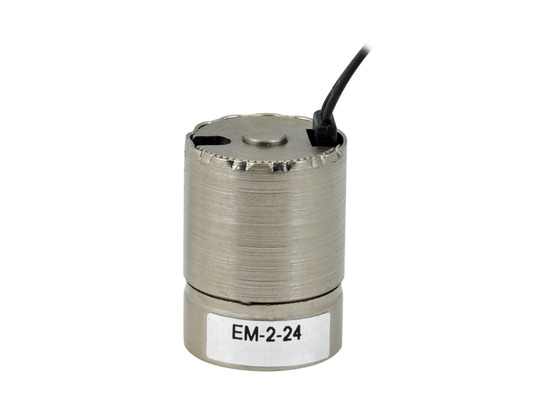

EM Series

EM Series


ES Series

ES Series







Diaphragm Technology

Diaphragm Valve Technology
  • Isolation valves
  • Single wetted material (PTFE)
  • Low leak
  • No elastomers

Diaphragm valves provide media isolation characteristics to handle a variety of applications where system protection and/or media compatibility are important. Clippard's NIV series valves take this technology to the next level with a highly inert, all-PTFE flow path with no elastomers. Unlike many other PTFE valves, this truly includes all wetted areas—meaning not only a PTFE valve body, but also a PTFE diaphragm.

NIV Series Diaphragm Isolation Valves

NIV Series


NIV Series Gradient Isolation Valves

NIV Gradient Series







Ceramic Valve Technology

Ceramic Valve Technology
  • Proportional isolation
  • Excellent resolution
  • Low leak port
  • Wide media capabilities

There are stringent and challenging applications that require isolation valve characteristics, but also require a higher level of control beyond the digital on/off valve. Clippard's new patented ceramic technology is the first to provide precise proportional control combined with isolation valve attributes that design engineers need. This single material (ceramic) isolation valve is scalable in its offering of proportional flow control, from microliters up to higher flow applications in a miniature package.

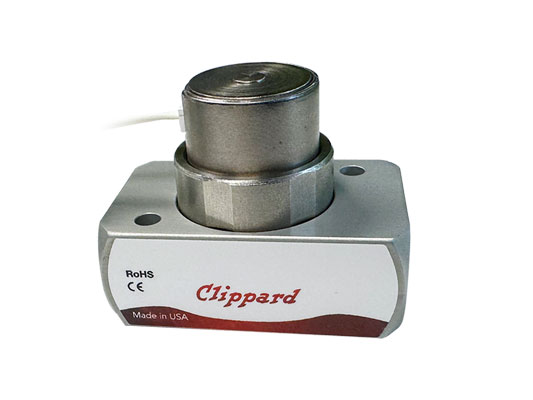

Eclipse Proportional Isolation Valve

EIV Series Proportional







Needle Valve Technology

Needle Valve Technology
  • Less than 2% hysteresis
  • Large flow capacity
  • Extremely repeatable
  • Very linear

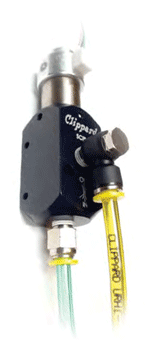

Manual needle valves provide simple proportional flow control. Clippard's SCPV series blends the linear and robust flow characteristics of needle valves with a stepper motor, delivering outstanding controllability for proportional applications. By only using power on a position or state change, this technology provides power savings and allows engineers to maintain a specific flow rate or orifice opening while consuming zero power.

SCVP Series

SCPV Series

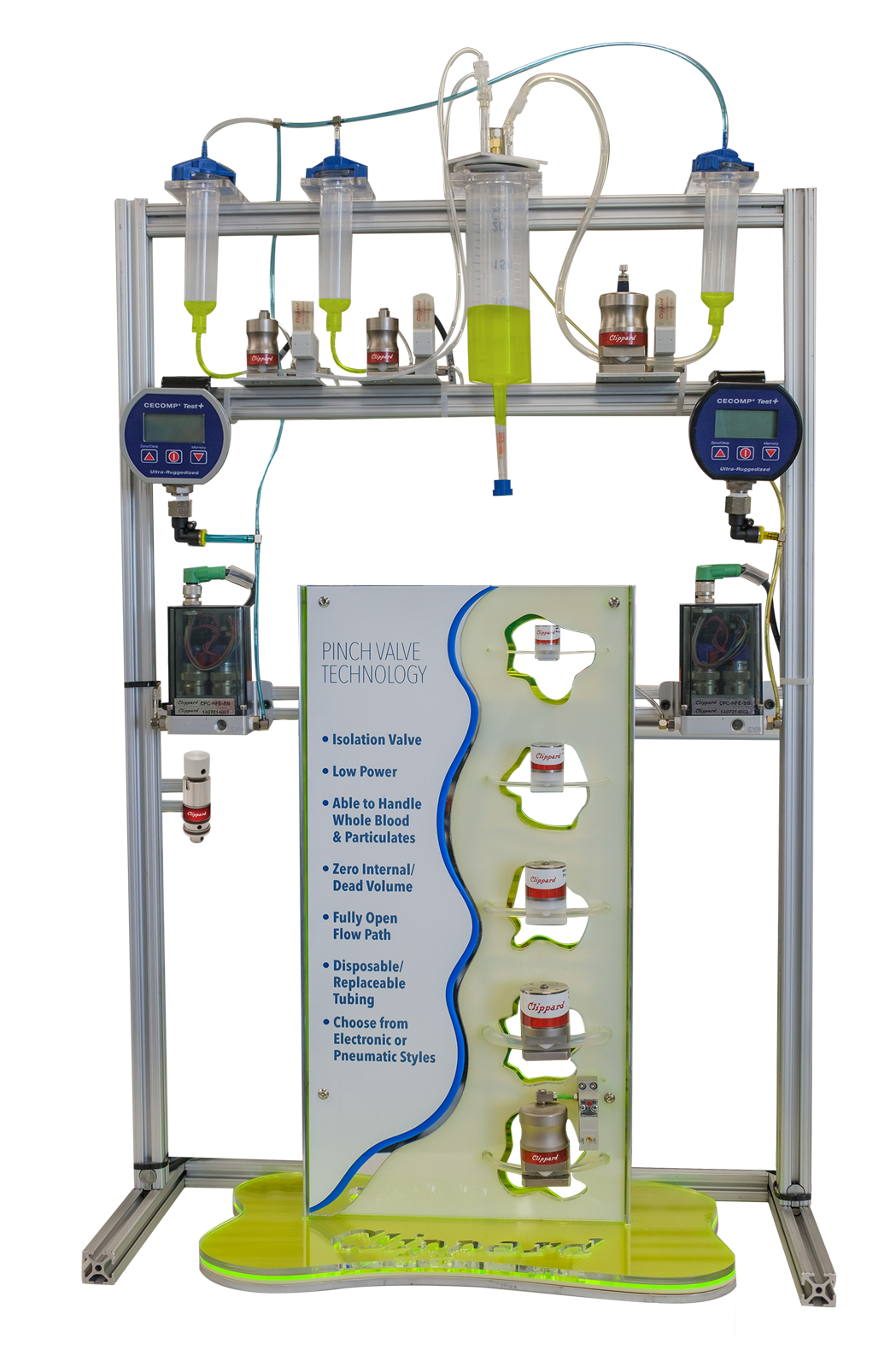

Pinch Valve Technology
Pinch Valve Technology
  • Isolation valve
  • Laminar flow
  • Wide media spectrum
  • Zero internal/dead volume

Available in electronic or pneumatic versions, Clippard pinch valves provide a completely unobstructed flow path with zero dead volume. This makes them ideal for handling a variety of media, including whole blood or viscous fluids containing particulate matter that would wreak havoc in other valves. The tubing is also easily removed and replaced, an important benefit for applications with strict hygiene requirements.

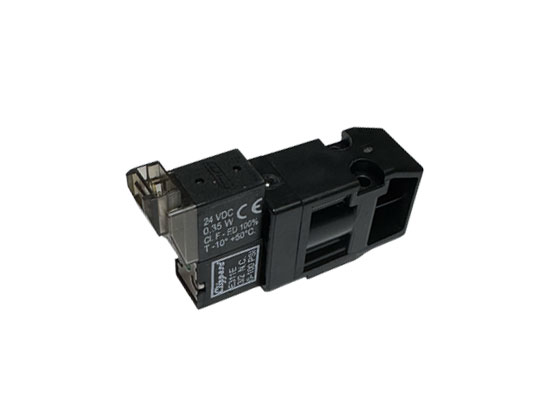

NPV Series

NPV Series


NPP Series

NPP Series






Plunger Valve Technology
Plunger Valve Technology
  • Lower cost
  • Wide flow range
  • Robust design
  • Proven technology

The most common poppet technology in the valve market place, this proven design is ideal for less demanding applications. Plunger-style solenoid valves can offer a great value, providing fast response times and relatively long life at a great price. These designs are commonly utilized in applications where mounting multiple valves on a manifold together reduce the number of fittings, overall package size, and total cost.

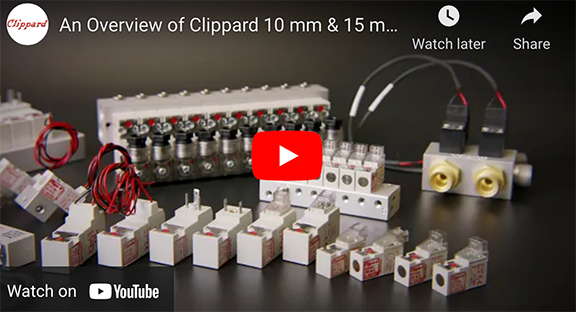

10 mm Series

10 mm Series


15 mm Series

15 mm Series

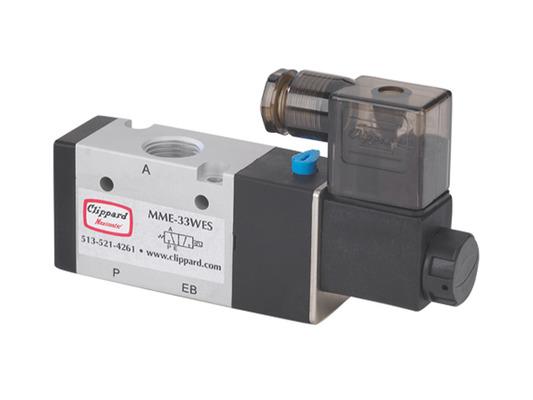

MME Series

MME Series
