Electronic Controls

Knowledge Base

Learn More >
Welcome to Clippard’s Proportional Pressure and Flow Control products line, the Cordis Series. A highly-customizable line of products and configurations specifically designed to help close the loop around pressure and flow; products that help hone in on application controls and performances. A higher level of control from a higher level of quality manufacturer.

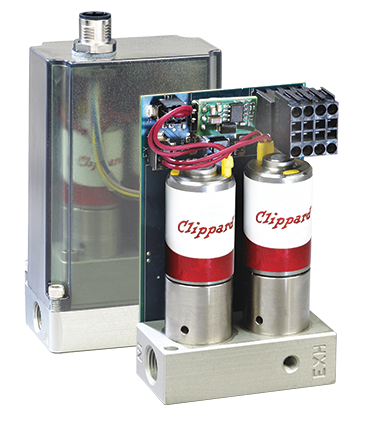

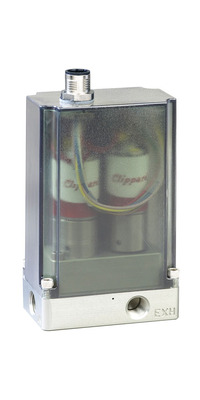

  Cordis Electronic Pressure Controls

  • Calibrated Range: Vacuum to 150 psig
  • No integral bleed required
  • Available with IP65 rated housing
  • Utilizes Clippard's proven DVP or EVP valves
  • Electronic fill & bleed pressure controller

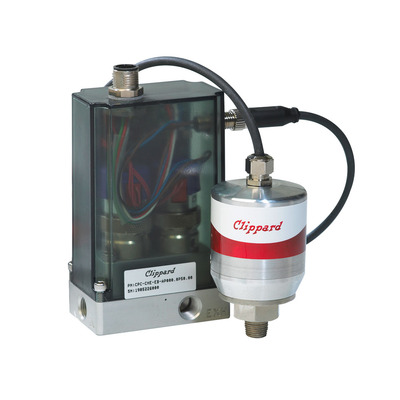

    •   Cordis Electronic Pressure Controls with External Sensor
    • Cordis pressure controller with external sensor
    • IP65 protection rating

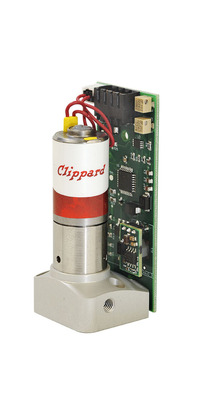

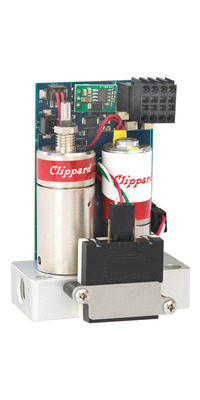

      Cordis Dynamic Pressure Controller

  • Calibrated Range: 0 to 150 psig
  • Compact and cost effective
  • Non-relieving
  • Utilizes Clippard's proven DVP or EVP valves

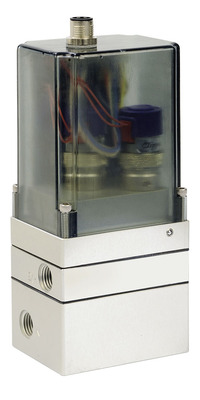

    •   Cordis High Volume Booster
    • Calibrated Range: 0 to 150 psig
    • Phenomenal forward and reverse flow characteristics
    • Significantly high flow capabilities

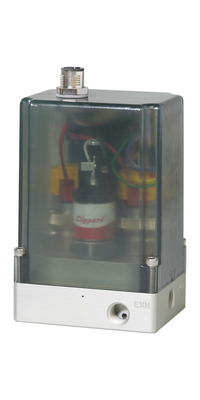

      Cordis High Pressure Controller
    • Calibrated Range: Vacuum to 1,000 psig
    • IP65 rated housing
    • Utlizes Clippard's high pressure spider valves

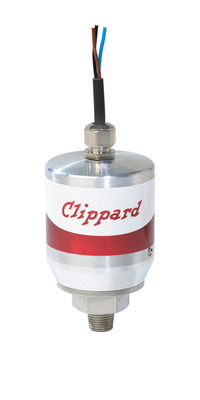

      Custom Calibrated Pressure Sensors
    • Standalone or use with Cordis pressure controls
    • Customized calibration around your requirements
    • Static or dynamic applications
    • IP65 protection rating

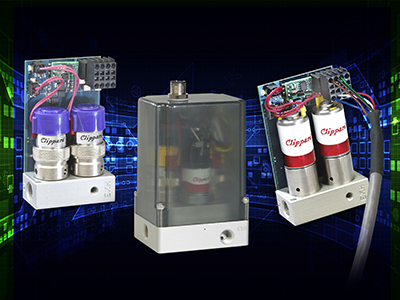

      Cordis Electronic Flow Controller
    • 50:1 turndown ratio
    • ≤14" H2O pressure drop
    • <1 minute warm-up
    • Optional integrated regulator



    To select the right product for your needs, narrow down the search results by choosing the product attributes your application requires.

    Need help? Contact Us >

    Part No.
    Product Description 1-100 of 227 Page: 1 ->2 3
    CPC-CFE-JC Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 1 bar
    CPC-CFE-NA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 10 bar
    CPC-HFE-ED Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 60 psig
    CPC-HFE-LB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 4 bar
    CPC-HFE-OA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 15 psia
    CPC-HFE-OD Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 15 psia
    CPC-HFE-QA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 100 psia
    CPC-HFE-SB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, -15 to +15 psid
    CPC-HFF-DB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 5 VDC, 0 to 30 psig
    CPC-HFR-BC Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 5 psig
    CPC-CFR-BB Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 5 psig
    CP1-CIIE-DC Cordis Pressure Control, 0 to 10 VDC, 25.0 l/min @ 100 psig (7 bar)
    CHP-HFE-3GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 300 psig, 0 to 10 VDC
    CHP-HFE-5GG Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 500 psig, 0 to 10 VDC
    CHP-HFE-5GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 500 psig, 0 to 10 VDC
    CHP-HFE-5GI Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 500 psig, 0 to 10 VDC
    CHP-HFE-5MG Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 34 bar, 0 to 10 VDC
    CHP-HFI-2GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 200 psig, 4 to 20 mA
    CHP-HFI-3GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 300 psig, 4 to 20 mA
    CP1-CIIE-DD Cordis Pressure Control, 0 to 10 VDC, 65.0 l/min @ 100 psig (7 bar)
    CPC-CFR-BD Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 5 psig
    CPC-HFI-BB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 5 psig
    CHP-HFI-5GG Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 500 psig, 4 to 20 mA
    CHP-HFI-5GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 500 psig, 4 to 20 mA
    CHP-HGE-3MI Cordis High Pressure Control, Housed Unit, G1/8, 0 to 20 bar, 0 to 10 VDC
    CHP-HGE-5GG Cordis High Pressure Control, Housed Unit, G1/8, 0 to 500 psig, 0 to 10 VDC
    CHP-HGE-5MI Cordis High Pressure Control, Housed Unit, G1/8, 0 to 34 bar, 0 to 10 VDC
    CP1-CIIE-FB Cordis Pressure Control, 0 to 10 VDC, 6.7 l/min @ 100 psig (7 bar)
    CPC-HFI-BC Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 5 psig
    CP1-CIIF-BC Cordis Pressure Control, 0 to 5 VDC, 25.0 l/min @ 100 psig (7 bar)
    CPC-CFE-CA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 15 psig
    CPC-CFE-EA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 60 psig
    CPC-CFE-EB Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 60 psig
    CPC-CFE-EC Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 60 psig
    CPC-CFE-FA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 100 psig
    CPC-CFE-FC Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 100 psig
    CPC-CFE-GA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 150 psig
    CPC-CFE-LD Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 4 bar
    CPC-CFE-MA Cordis Pressure Control Card Unit, 1/8" NPT, 0 to 10 VDC, 0 to 7 bar
    CPC-CFR-AD Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 1 psig
    CPC-CGE-JB Cordis Pressure Control Card Unit, G1/8, 0 to 10 VDC, 0 to 1 bar
    CPC-CGE-LC Cordis Pressure Control Card Unit, G1/8, 0 to 10 VDC, 0 to 4 bar
    CPC-HFE-BD Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 5 psig
    CPC-HFI-CB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 15 psig
    CPC-HFI-DC Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 30 psig
    CPC-HFI-EC Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 60 psig
    CPC-HFI-FB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 100 psig
    CPC-HFI-FC Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 100 psig
    CPC-HFI-NA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 10 bar
    CPC-HFI-SA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, -15 to +15 psid
    CP1-CMIE-FD Cordis Pressure Control, 0 to 10 VDC, 65.0 l/min @ 100 psig (7 bar)
    CP1-CMIE-KC Cordis Pressure Control, 0 to 10 VDC, 25.0 l/min @ 100 psig (7 bar)
    CPC-CFR-FA Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 100 psig
    CPC-CFR-FD Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 100 psig
    CPC-CFR-KA Cordis Pressure Control Card Unit, 1/8" NPT, 3.3 VDC Serial, 0 to 2 bar
    CPC-CGE-AA Cordis Pressure Control Card Unit, G1/8, 0 to 10 VDC, 0 to 1 psig
    CPC-HFE-DA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 30 psig
    CPC-HFE-FA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 100 psig
    CPC-HFE-FB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 100 psig
    CPC-HFE-FD Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 100 psig
    CPC-HFE-GA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, 0 to 150 psig
    CPC-HFI-EB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 60 psig
    CPC-HFI-GA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 4 to 20 mA, 0 to 150 psig
    CPC-HFR-AA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 1 psig
    CPC-HFR-BB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 5 psig
    CPC-HFR-CA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 15 psig
    CPC-HFR-EB Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 60 psig
    CPC-HFR-ED Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 60 psig
    CPC-HFR-FA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 100 psig
    CPC-HFR-GA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 150 psig
    CPC-HFR-JD Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, 0 to 1 bar
    CPC-HFR-RA Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 3.3 VDC Serial, -5 to +5 psid
    CPC-HGE-EB Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, 0 to 60 psig
    CPC-HGE-GA Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, 0 to 150 psig
    CPC-HFE-SD Cordis Pressure Control Housed Unit, Internal Sensor, 1/8" NPT, 0 to 10 VDC, -15 to +15 psid
    CPC-HGE-FD Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, 0 to 100 psig
    CPC-HGE-JB Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, 0 to 1 bar
    CPC-HGE-JD Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, 0 to 1 bar
    CPC-HGE-SB Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 0 to 10 VDC, -15 to +15 psid
    CPC-HGI-EB Cordis Pressure Control Housed Unit, Internal Sensor, G1/8, 4 to 20 mA, 0 to 60 psig
    CPC-EFI-QA Cordis Pressure Control CE Approved Housed Unit, 1/8" NPT, 4 to 20 mA, 0 to 100 psia
    CPS-FAG-O Cordis Sensor, Male 1/8" NPT Mount, Flying Leads, 36" (914 mm), 0.5 to 4.5 VDC, 0 to 15 psia Calibration
    CPS-FCE-A Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 1 psig Calibration
    CPS-FCE-B Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 5 psig Calibration
    CPS-FCE-C Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 15 psig Calibration
    CPS-FCE-D Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 30 psig Calibration
    CPS-FCE-F Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 100 psig Calibration
    CPS-FCE-R Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, -5 to +5 psid Calibration
    CPS-FCE-S Cordis Sensor, Male 1/8" NPT Mount, M8 Male 3-Pin, 0 to 10 VDC, -15 to +15 psid Calibration
    CPS-MAE-M Cordis Sensor, Manifold Mount, Flying Leads, 36" (914 mm), 0 to 10 VDC, 0 to 7 bar Calibration
    CPS-MCE-F Cordis Sensor, Manifold Mount, M8 Male 3-Pin, 0 to 10 VDC, 0 to 100 psig Calibration
    CPS-MCF-B Cordis Sensor, Manifold Mount, M8 Male 3-Pin, 0 to 5 VDC, 0 to 5 psig Calibration
    CPS-RAF-N Cordis Sensor, Male 1/8" BSPT Mount, Flying Leads, 36" (914 mm), 0 to 5 VDC, 0 to 10 bar Calibration
    CHP-HFE-3MG Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 20 bar, 0 to 10 VDC
    CFC-CFR-ACC Cordis Flow Controller Card Unit, 1/8" NPT, No Regulator, 21 to 30 psig, 0 to 0.5 l/min, 3.3 VDC Serial
    CHP-HFE-2GH Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 200 psig, 0 to 10 VDC
    CHP-HFE-2GI Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 200 psig, 0 to 10 VDC
    CHP-HGR-3MH Cordis High Pressure Control, Housed Unit, G1/8, 0 to 20 bar, 3.3 VDC Serial
    CHP-HFE-3GG Cordis High Pressure Control, Housed Unit, 1/8" NPT, 0 to 300 psig, 0 to 10 VDC
    CFC-CFE-BBA Cordis Flow Controller Card Unit, 1/8" NPT, Clippard DR-2 Regulator, 11 to 20 psig, 0 to 0.03 l/min, 0.2 to 10 VDC
    Cordis Flow Controller FAQ Is the output flow of the Cordis Flow Controller linear? A: Yes, within +/- 1% FS How can I electronically control the Cordis? A: The Cordis Flow Controller can be commanded by using voltage, serial or current command. Are there other plumbing options available? A: The Cordis is available in 1/8" NPT or G1/8. (Manifold mount for specials only). Can PID changes be made in the field?
    Cordis CPC Electronic Pressure Controls FAQ Frequently Asked Questions about the Cordis Electronic Pressure Controls
    Vacuum Control (Inline, Low Flow) This general inline vacuum control schematic shows Cordis controlling vacuum in a static volume.

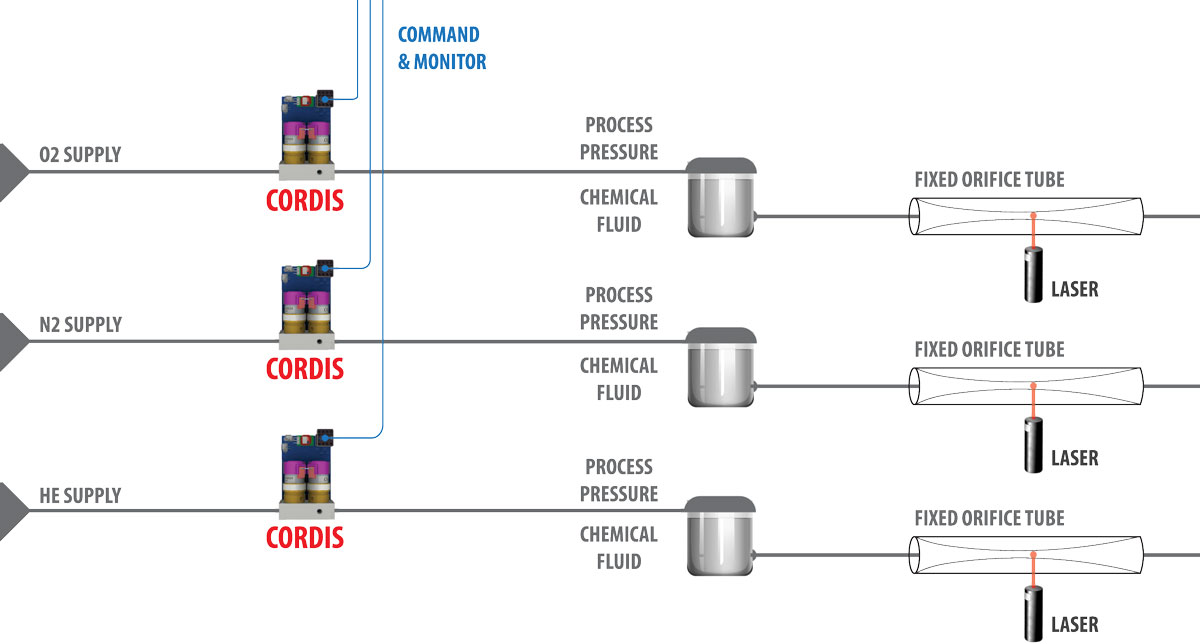

    Flow Cytometry Pressure Control Learn more about how the Cordis electronic pressure controller is ideal for controlling gases and dispensing chemical fluids in precision applications such as flow cytometry...

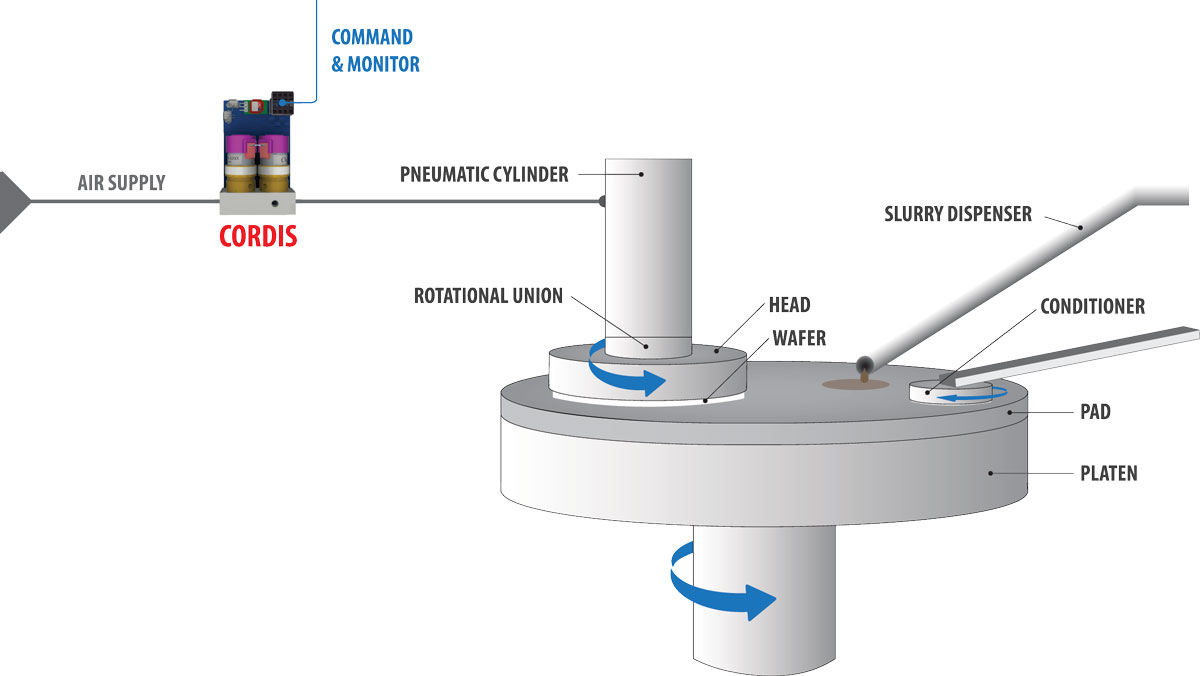

    Chemical Mechanical Planarization (CMP) Learn more about how Clippard's Cordis electronic pressure regulator ensures precision in Chemical Mechanical Planarization (CMP) by maintaining exact pressure levels for flawless silicon wafer polishing...
    3D Printing (Positive Pressure) Using the Cordis Electronic Pressure Controls and Eclipse Electronic Valve to control compressed air above the print fluid in a 3D printing application.
    /

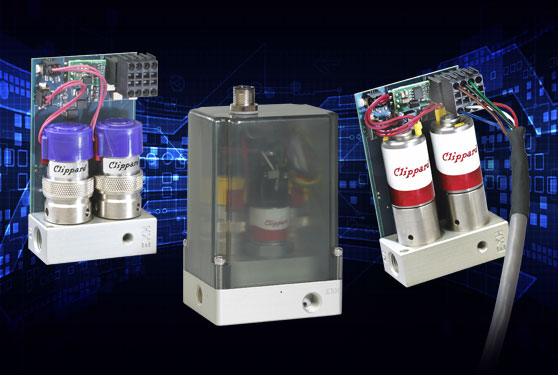

    Key Differentiators of Clippard's Cordis Electronic Proportional Pressure Controls Learn more about the key differentiators of the Clippard's new digital pressure controls...

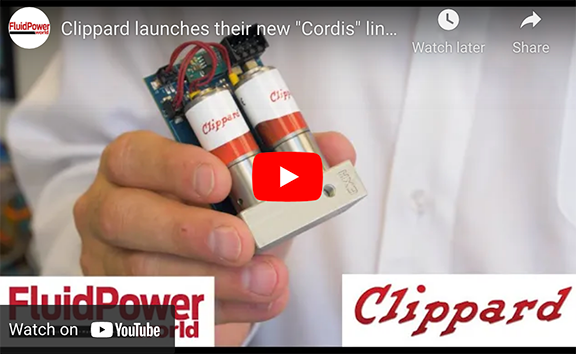

    Fluid Power World Video Interview: Cordis Electronic Pressure Regulators In this video interview, Mary Gannon of Fluid Power World talks with Matt Larson, Product Manager for Clippard's new Cordis Pressure Regulators...

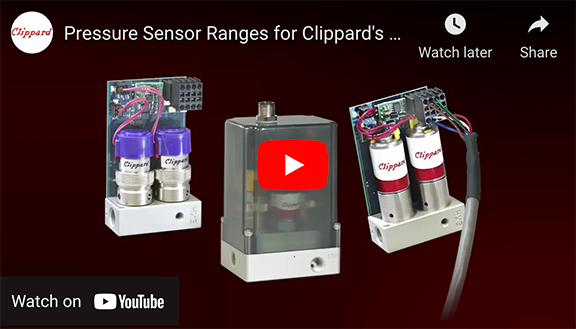

    Pressure Sensor Ranges for the Cordis CPC Series Electronic Pressure Regulators Clippard’s Cordis proportional regulator has provides phenomenal control, linearity, accuracy, and repeatability. Learn more about its pressure sensors and the types of calibration they enable...
    Clippard's CMO & COO Discuss New Cordis Series Clippard Executive discuss the new Cordis line of Electronic Pressure Controls and how this fits with their strategic long-term plan.

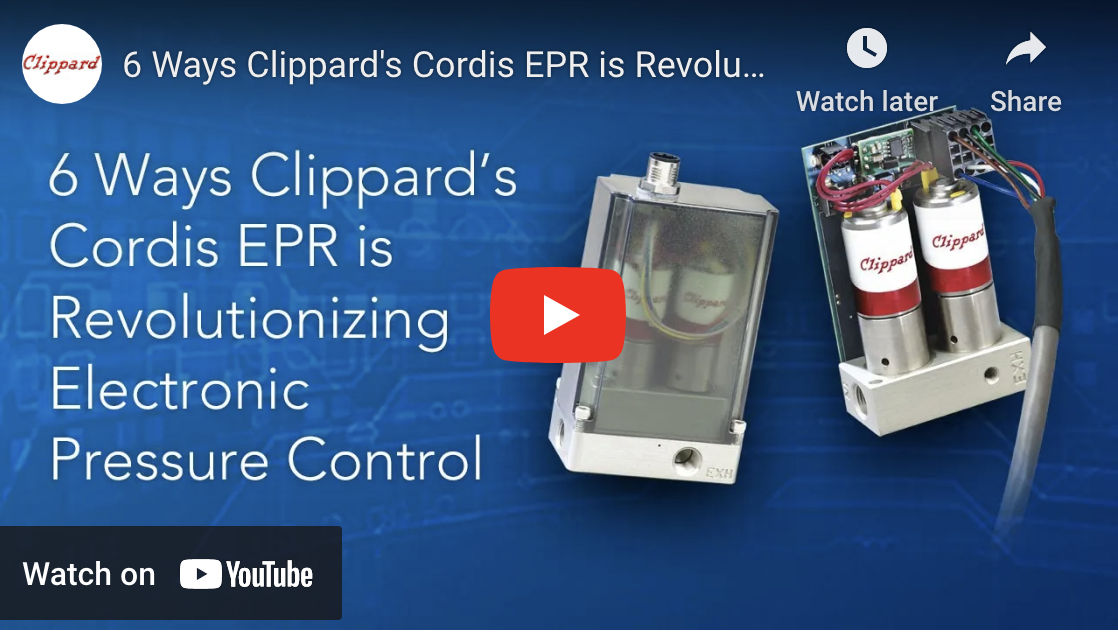

    6 Ways Clippard's New Cordis EPR is Revolutionizing Electronic Pressure Control Learn about the unparalleled performance and flexibility of the Cordis Electronic Pressure Controls.
