PAV-2P

More Views

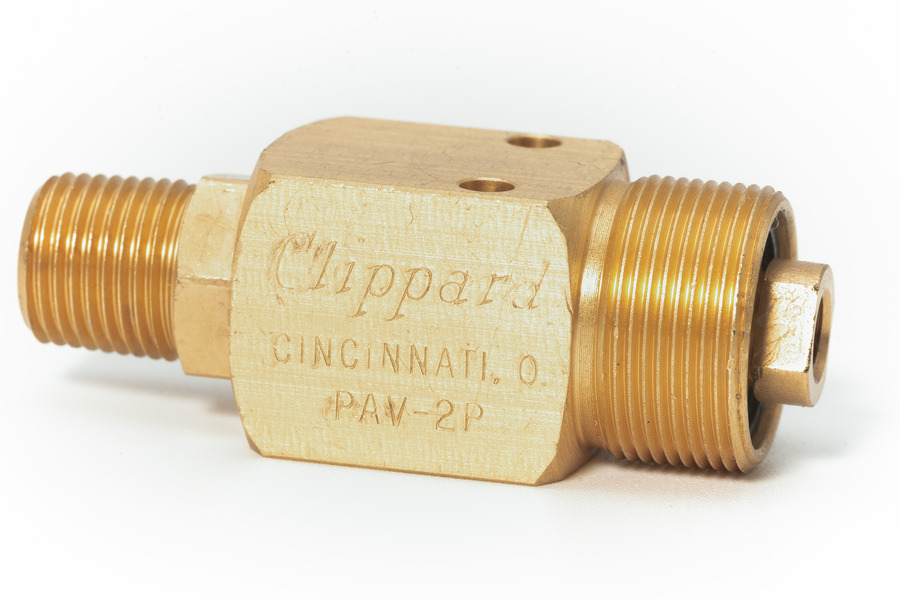

PAV-2P

The PAV Series Normally-Open or Normally-Closed 2-Way valves incorporate an integral pilot actuator that provides a compact assembly and simple installation. The internal valving is similar to the MAV-2 or MAVO-2. They are ideal for remote and miniature applications which require higher air flow and/or lower power.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Poppet and Spool designs
  • Compact size
  • Simple installation
  • Brass body

    • AccessoriesFoot Bracket [Part:FB-1791], Nut & Lockwasher [Part:PAV-MH]
    Air Flow113 l/min @ 50 psig; 190 l/min @ 100 psig
    Function2-Way Normally-Closed
    Input PSI300 psig (21bar) max.
    Material, BodyBrass Body, Stainless Steel Stem & Spring
    Material, SealsNitrile
    MediumAir, Water or Oil

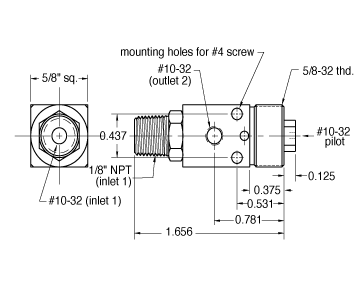

    Mount5/8-32 Thread or #4 Screw
    Pilot Pressure20 psig (1,4 bar) min.
    Ports1/8" NPT
    Product Line BrochureMechanical Valves
    Weight (lbs.)0.1200
