Known for reliability, innovation, and focus on miniature pneumatics, Clippard's new Cordis electronic pressure controls (EPC) utilize the proven EVP and DVP lines of electronic proportional valves allowing for steady, repeatable downstream pressure as demand or processes change. The result, a precise linear pressure control within a closed-loop system with ultra high resolution and repeatability.

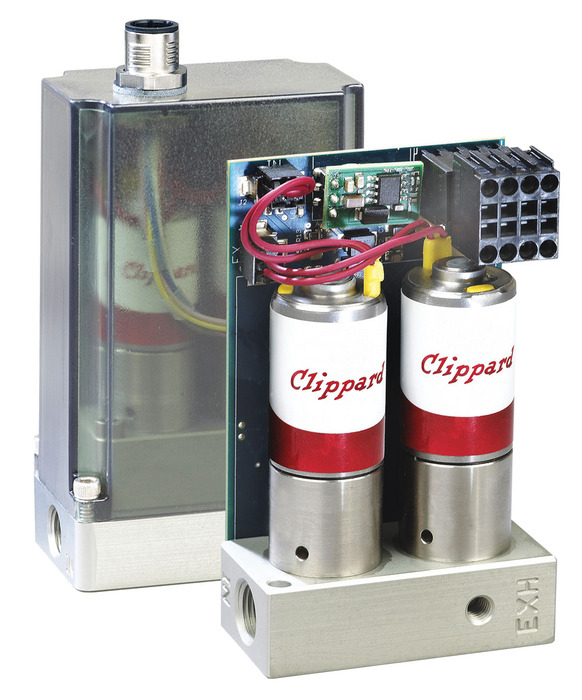

The Cordis uses a microcontroller, integrated pressure sensor, and two Clippard proportional valves. The inlet valve is connected to the moderately regulated supply pressure and the exhaust valve is connected to a port that vents excess pressure to atmosphere. Once a command is increased, the inlet valve opens up to allow supply pressure to pass over the sensor element which provides an active feedback for this microcontroller to satisfy the set point in the process. If at any point the sensor detects a value higher than the set point, the exhaust valve will modulate open to vent off the excess pressure to maintain a stable and accurate control pressure in the process.
The Cordis pressure regulators are adaptable to a variety of sensors that can close the loop around not only pressure, but vacuum or flow.
|**NOTE**||Consult Clippard for Custom Calibrated Ranges|
|2D File||2D File|
|Accessories||3.3 VDC Serial Cable, 3': CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1, Mounting Bracket: CPCH-B1|
|Accuracy||±0.25% of Full Scale|
|Applications Form||Applications Form|
|Calibrated Range||0 to 100 psig|
|Data Sheet||Data Sheet (Metric)|
|Instruction Manual||Instruction Manual|
|Max. Hysteresis||±0.05% of Full Scale|
|Min. Volume / Flow @ Max. Pressure||≥2.00 in3 / 65.0 l/min|
|Operating Pressure||Vac. to 150 psig (10 bar)|
|Signal/Command||0 to 10 VDC|
|Troubleshooting Guide||Troubleshooting Guide|
|Type||Housed Unit, Internal Sensor|
|Typical Flow||2.7 to 65 l/min (±10% @ 100 psig)|
