CPC-HFE-FA

Precise, linear digital pressure control within a closed-loop system with ultra high resolution and repeatability.

The Cordis is a revolutionary microcontroller primed for escape velocity from a proportional control market that has grown stagnant. Built with the highest quality Clippard EVP and DVP proportional valves at its heart, the Cordis is designed to outperform the competition in every way. With unparalleled performance and flexibility not possible with current analog proportional controllers, the Cordis makes everything from calibration to sensor variety acceptance to future development opportunities more accessible and less complicated. The future of proportional pressure control has arrived, and it's digital.

Estimated to ship within 10 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

Known for reliability, innovation, and focus on miniature pneumatics, Clippard's new Cordis electronic pressure controls (EPC) utilize the proven EVP and DVP lines of electronic proportional valves allowing for steady, repeatable downstream pressure as demand or processes change. The result, a precise linear pressure control within a closed-loop system with ultra high resolution and repeatability.

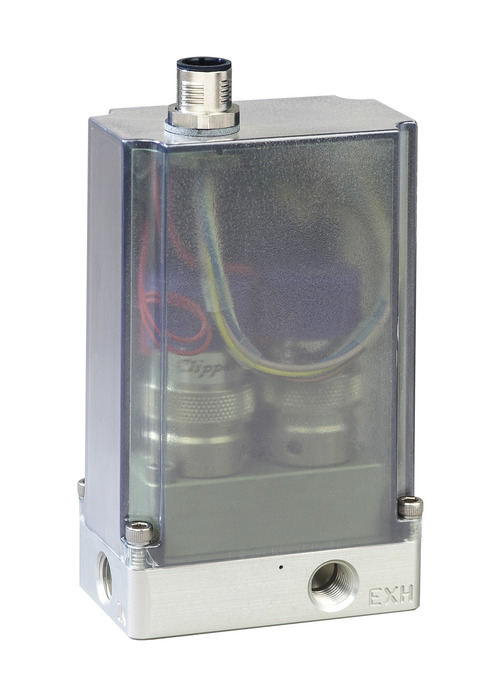

The Cordis uses a microcontroller, integrated pressure sensor, and two Clippard proportional valves. The inlet valve is connected to the moderately regulated supply pressure and the exhaust valve is connected to a port that vents excess pressure to atmosphere. Once a command is increased, the inlet valve opens up to allow supply pressure to pass over the sensor element which provides an active feedback for this microcontroller to satisfy the set point in the process. If at any point the sensor detects a value higher than the set point, the exhaust valve will modulate open to vent off the excess pressure to maintain a stable and accurate control pressure in the process.

The Cordis pressure regulators are adaptable to a variety of sensors that can close the loop around not only pressure, but vacuum or flow.

  • Smooth linear control
  • Real time adjustable PID control
  • Multiple flow configurations
  • Static or dynamic applications with the same proportional regulation
  • No integral bleed required
  • Customizable pressure ranges & mounting options

  • **NOTE**Consult Clippard for Custom Calibrated Ranges
    2D File2D File
    Accessories3.3 VDC Serial Cable, 3': CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1, Mounting Bracket: CPCH-B1
    Accuracy±0.25% of Full Scale
    Applications FormApplications Form
    Calibrated Range0 to 100 psig
    Current<250 mA max.
    Data SheetData Sheet
    FunctionNormally-Closed Proportional
    Length4.54
    Linearity±0.05% BFSL
    Max. Hysteresis±0.05% of Full Scale
    MediumClean, Dry, Non-Corrosive Gases
    Min. Volume / Flow @ Max. Pressure≥0.25 in3 / 2.7 l/min
    Mounting AttitudeAny
    Operating InstructionsOperating Instructions
    Operating PressureVac. to 150 psig (10 bar)
    Porting1/8" NPT
    Product Line BrochureCordis Electronic Controls
    Protection RatingIP65
    Resolution≤5 mV
    Response Time<20 ms Typical (Application Dependent)
    Signal/Command0 to 10 VDC
    Temperature Range32 to 120°F (0 to 49°C) proportional valves
    Troubleshooting GuideTroubleshooting Guide
    TypeHoused Unit, Internal Sensor
    Typical Flow2.7 to 65 l/min (±10% @ 100 psig [7 bar])
    Weight (lbs.)0.5
