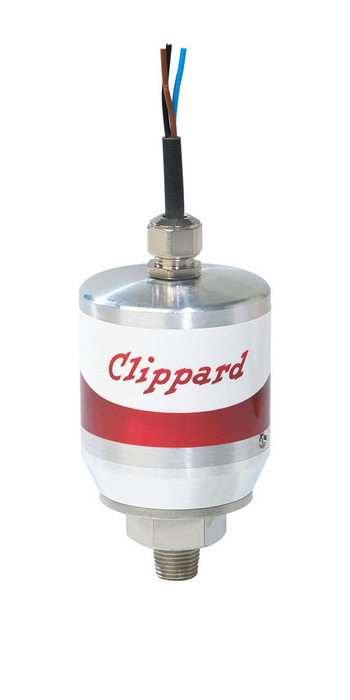

Custom Calibrated Pressure Sensors

Configure CPS

Clippard CPS series pressure sensors are conditioned and offer a customized calibration around your application requirements, allowing for a full scale accuracy of 0.25% over the calibrated range. They can be used in conjunction with Clippard's Cordis pressure controller or as a standalone transducer.

(Please select a valid configuration)
  • Standalone or use in conjunction with Cordis Pressure Controls
  • Downstream sensor feedback
  • Multiple VDC signal outputs
  • Static or dynamic applications
  • Multiple electrical connection options
  • Customizable pressure ranges and mounting options
  • IP65 Protection Rating

Mounting options available are Male 1/8" NPT, Male 1/8" BSPT, 7/16-20 UNF face seal and manifold mount. These allow the user to place the sensor downstream or in a remote location from the pressure controller. This creates a quicker response and helps avoid any lag in the system.

The manifold mount lends itself well to analytical value-added assemblies. All wetted materials are oxygen compatible and manifold mounting eliminates any possible contamination during assembly.

2D DrawingsFile
Accuracy±0.25% of Full Scale
Applications FormApplications Form
ConnectionFlying Leads, 36" (914 mm)
Current Draw<20 mA
Data SheetData Sheet
Linearity±0.25% BFSL
MediumClean, dry, non-corrosive gases
Operating InstructionsOperating Instructions
Operating Temperature Range32 to 158°F (0 to 70°C)
Protection RatingIP65
Response Time<5 ms
Sensor MountingMale 1/8" NPT
Signal Output0 to 10 VDC
