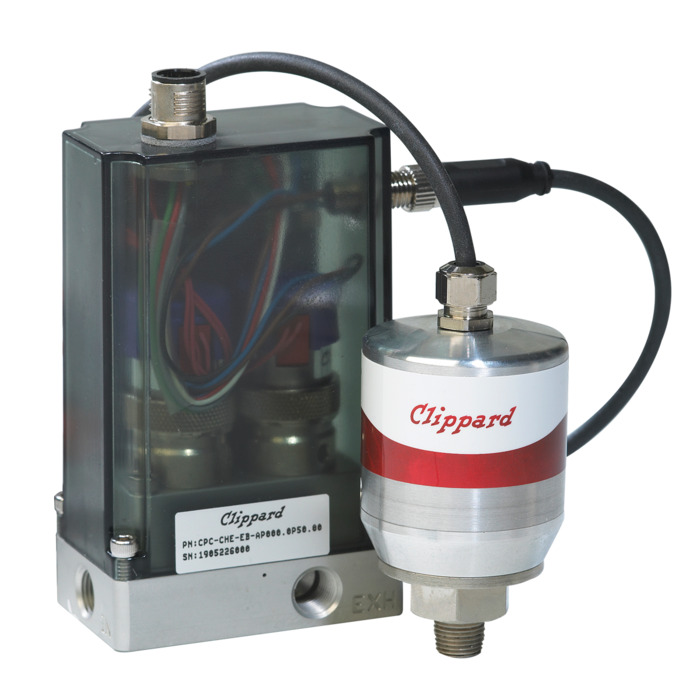

Cordis Electronic Pressure Controls with External Sensor

Configure CPC-Z

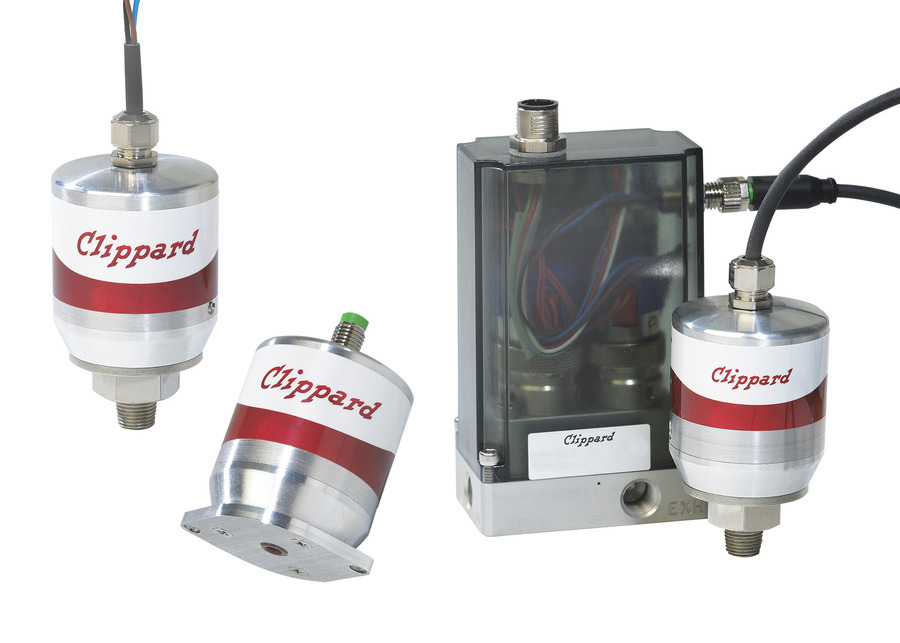

Clippard CPS series pressure sensors are conditioned and offer a customized calibration around your application requirements, allowing for a full scale accuracy of 0.25% over the calibrated range. They can be used in conjunction with Clippard's Cordis Pressure Controller or as a standalone transducer.

(Please select a valid configuration)
  • Downstream sensor feedback
  • Multiple VDC signal outputs
  • Customizable pressure ranges and mounting options
  • IP65 Protection Rating
2D File2D File
Accessories3.3 VDC Serial Cable, 3': CPCH-C2, Power Cord, 6': CPCH-CA6, Actuation Cable, 8-Pin, 6': CPCH-C1, Mounting Bracket: CPCH-B1
Accuracy±0.25% of Full-Scale
Applications FormApplications Form
Data SheetData Sheet
FunctionNormally-Closed Proportional
Instruction ManualInstruction Manual
Linearity±0.05% BFSL
Material, WettedSensor: Polyamide, Manifold: Anodized Aluminum, Valves: refer to the DVP or EVP specifications
Max. Hysteresis±0.05% of Full Scale
MediumClean, dry, non-corrosive gases
Min. Volume/Flow @ Max. Pressure≥0.25 in3 / 2.7 l/min
Mounting AttitudeAny
NoteConsult Clippard for Custom Calibrated Ranges
Operating PressureVacuum to 150 psig (10 bar)
Operating Temperature RangeProportional Valve: 32 to 120°F (0 to 39°C)
Porting1/8" NPT
Protection RatingIP65
Resolution≤5 mV
Response Time<20 ms (application dependent)
Sensor MountingMale 1/8" NPT
Signal/Command0 to 10 VDC
Weight0.21
