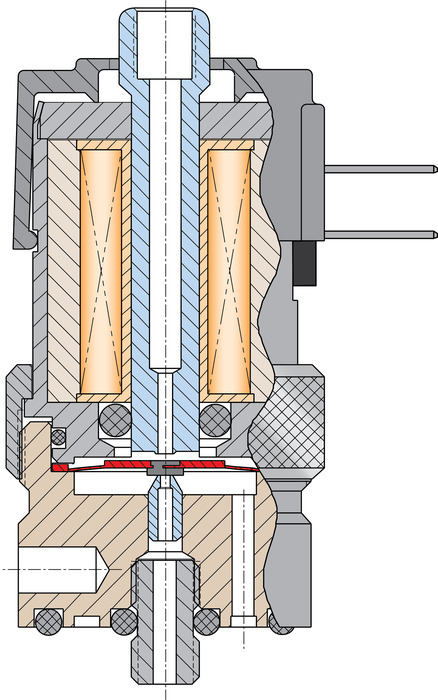

| 2D Drawings | 2D Files |
|---|---|
| Accessories | Installation Socket Torque Tool 30215 |
| Coil Resistance | 218 |
| Connection | Spade Terminal, 0.110" |
| Connector | ET-C48 or ET-C120 or 3831-1-PKG |
| Current | 0.05A |
| Cycles | Over 1 Billion |
| Data Sheets | Standard, High Pressure, Oxygen Clean, Analytical, Corrosion-Resistant, N.O. Manifold |
| Filtration | 40 micron (recommended) |
| Function | 3-Way Universally Ported |
| Leak Rate | 0.1 sccm |
| Manifolds | Single & Multi-Station, Specialized |
| Material, Seals | FKM (O2 Clean/Analytical) |
| Material, Spring | Nickel Alloy |
| Material, Wetted | ENP brass, nickel alloy, stainless steel, ENP steel |
| Max PSI | 105 (7.2 bar) |
| Medium | Clean, Dry Air & Compatible Gases |
| Mount | Manifold |
| Operating Pressure | 105 psig (17 l/min @ 100 psig) |
| Operating Temperature Range | 32 to 180°F (0 to 82°C) |
| Operating Voltage Range | 90 to 150% |
| Poppet Travel | 0.007" |
| Product Line Brochure | Spider Valves |
| Response Time | 5 to 10 milliseconds (nominal) |
| Type | Analytical |
| Unit | Imperial |
| Voltage | 12 VDC |
| Wattage | 0.67 Watts (nominal) |
| Weight (lbs.) | 0.1700 |
Uses
Normally-Closed, Normally-Open, Selector, or Diverter
