EM Series Electronic Valves

Configure EM*-*

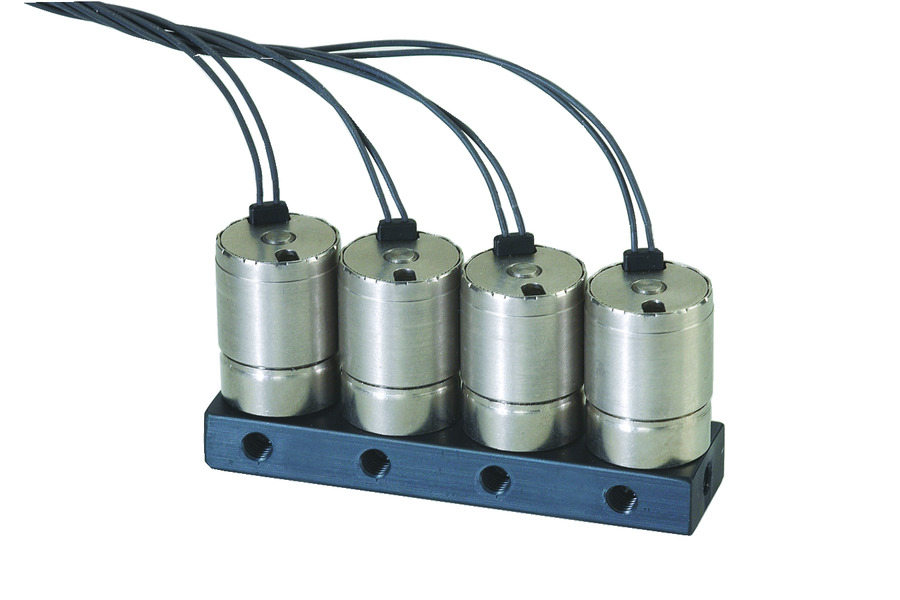

When space is critical, the EM Series Valve provides a great solution. At just over an inch tall, and less than 3/4” in diameter, the EM Valve uses Clippard’s special “spider” design. This reliable and proven design for long life is housed in a miniature body, and incorporates wire leads out the top, allowing body rotation for close-center mounting. In addition, the valve features higher flow; combining fast shifting speed, extremely high cycle life with the design flexibility to make this valve a “small wonder” for demanding applications.
(Please select a valid configuration)

  • Unique “Spider” design for extremely long life
  • Small size—high flow
  • Compact manifold spacing (0.740” centers)
  • Low power, quiet operation

  • 2D Files2D File
    Data SheetData Sheet
    Filtration40 micron Filter
    Function2-Way Normallly-Closed
    Material, SealsNitrile Standard. FKM & EPDM Available
    MediumClean, Dry Air & Compatible Gases
    Operating Temperature Range32 to 150°F (0 to 66°C)
    Port, Exhaust#10-32 (M5 optional)
    Response Time10 ms (nominal) (15 ms for N.O.)
    Voltage12 VDC
    Voltage Operating Range90 to 120% of Rated Voltage
    Wattage1 Watt at Rated Voltage
