NPV Electronic Pinch Valves

Configure NPV

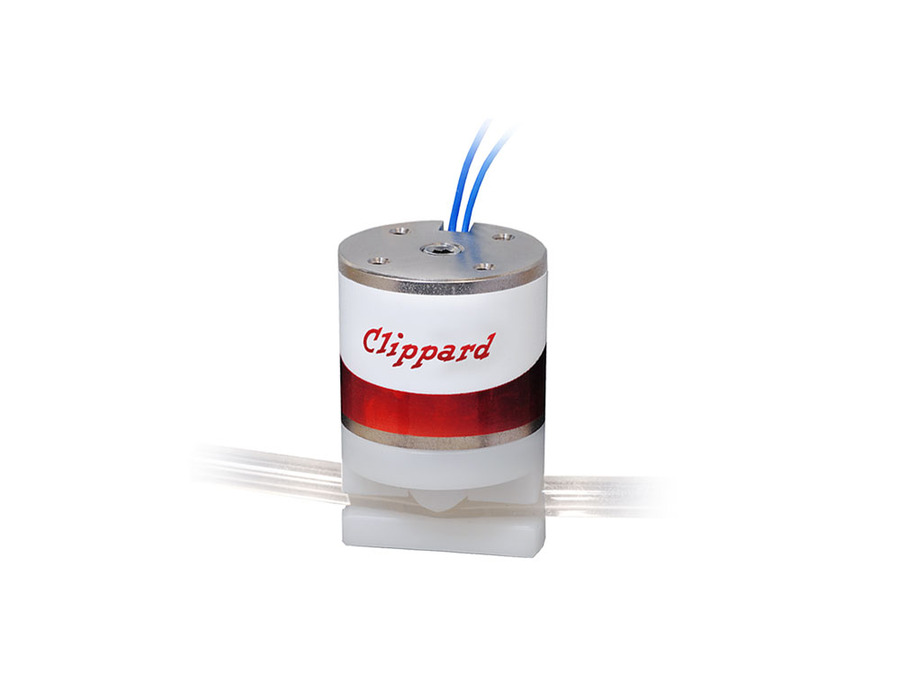

The NPV Series Pinch Valve is a solenoid-operated device that is designed to open and close tubes for controlling flow of liquids and gases. Other valve types have internal passages that may cause small amounts of fluid to remain in the valve. Pinch valves have no areas or dead volume where fluid can become trapped. Only the inside of the tubing contacts the fluid. Energizing the solenoid retracts or attracts the plunger, which opens or closes the tube. De-energizing the solenoid will allow the plunger to return to its original state.
(Please select a valid configuration)

  • Small, compact design
  • Hygienic and easy to clean (replace tubes)
  • Low power consumption
  • High cycle life
  • Can handle whole blood and particulate matter
  • Unobstructed flow path
  • Each valve comes with 12" of silicone tubing
  • Variety of tubing sizes available
  • Tubing is easily replaceable

    Available in 2-Way Normally-Open or Normally- Closed or 3-Way
    (one tube N.O. and one tube N.C.) configurations

    Common industries that use pinch valves for the benefits of isolating media from a mechanical valve include: drug dispensing, laboratory equipment, waste water, medical devices, chemical, food and beverage equipment, ceramic/glass/plastic, and solids handling.

    • Compact, Robust Design

    • Low Maintenance

    • Fast Response Time

    • Tubing Ranges from 0.031" up to 0.25" ID

    • Long Life—Tubing is easy to replace

    • Zero Dead Volume
             » Fluid samples are not contaminated by the previous sample through the tube.
             » There is no dead volume, as the tubing holds all the media.

    • Low Power Consumption
             » Low wattage coils ranging from 1.0 watt to 7.0 watts
             » To reduce power consumption, a hit and hold circuit can be utilized to energize the valve with full range
                of power and then reduce the power by up to 2/3 of the rated voltage. This not only saves power consumption,
               but also minimizes heat generation.

    • Unobstructed Flow Path
             » Many other types of solenoid valves have complex valve internals that obstruct flow.
             » Unobstructed flow is important when handling vital fluids. Pinch valves create minimal pressure drop.

    • In Stock
             » Manufactured by Clippard in Cincinnati, Ohio, USA
             » Over 120 Stocking Distributors around the world
             » 4 Body Sizes, 1.0 watt to 7.0 watts
             » 6 Tubing Sizes
             » 2 Voltage Options, 12 VDC or 24 VDC
             » 3 Valve Types—2-Way Normally-Open or Normally-Closed or 3-Way (one tube N.O. and one tube N.C.)

    • Accuracy>99%
    Applications FormApplications Form
    Circuitry OptionNone
    Connection18" (45 cm) Wire Leads
    Data SheetData Sheet, Hit & Hold Info, Panel Mount Info
    DocumentationCE, RoHs (Download)
    Material, TubingSanitary Platinum-Cured Silicone
    Material, WettedSilicone Tubing (no wetted areas in valve)
    Max PSI30 psig
    MediumAir, Water, Gas & Compatible Fluids
    Mounting#2-56 or #4-40 manifold. M3 also available.
    Operating Pressure0 to 30 psig (0 to 2 bar) with standard medical/lab grade silicone tubing
    Operating Temperature Range-20 to 158°F (-29 to 70°C)
    Product Line BrochureIsolation Valves
    Response Time<50 ms
    Tubing, Durometer Hardness50 Shore A
    Tubing, LengthComes with 12" (30 cm) of selected tubing. Additional tubing available separately.
    UnitImperial
    Voltage12 VDC
    Weight (lbs.)0.4000
