R-731

Sorry, this part is not available online.
Contact your nearest distributor for pricing.
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
R-731

More Views

Get CAD files:

Details

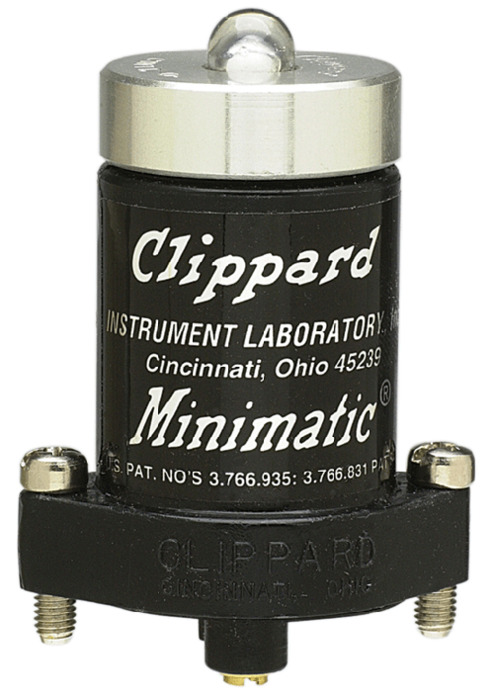

Obsolete-Modular Vacuum Generator

Notes

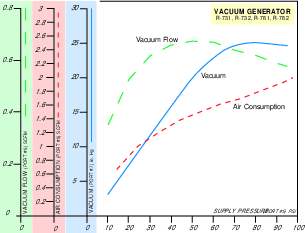

Minimum Pilot Pressure: 40 psig; Air Consumption: 1.7 scfm @ 60 psig.
See Catalog: Page 287

Uses

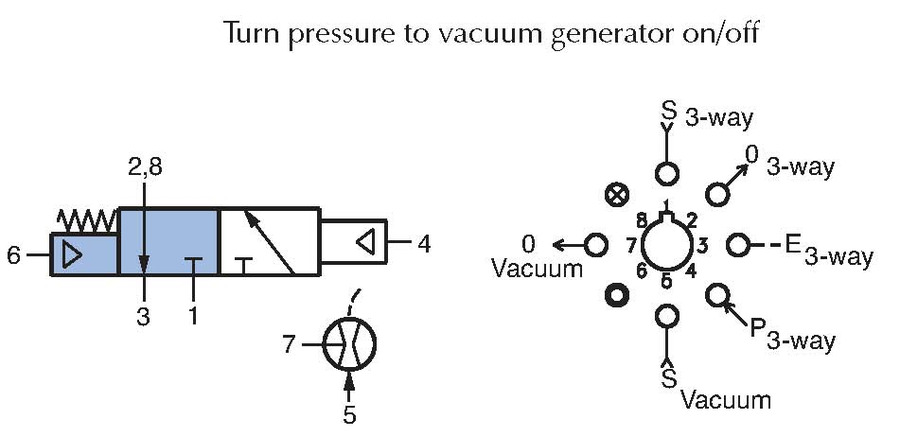

The R-731 is a combination venturi vacuum generator and independent pilot actuated, spring return, fully ported 3-way valve. Applying pressure at port 5 creates a vacuum at port 7.

Additional Information

Air Flow9 scfm @ 100 psig
Max PSI150 psig
Temperature Range32 to 180°F
Weight0.4000
