NPV1-1C-01-24

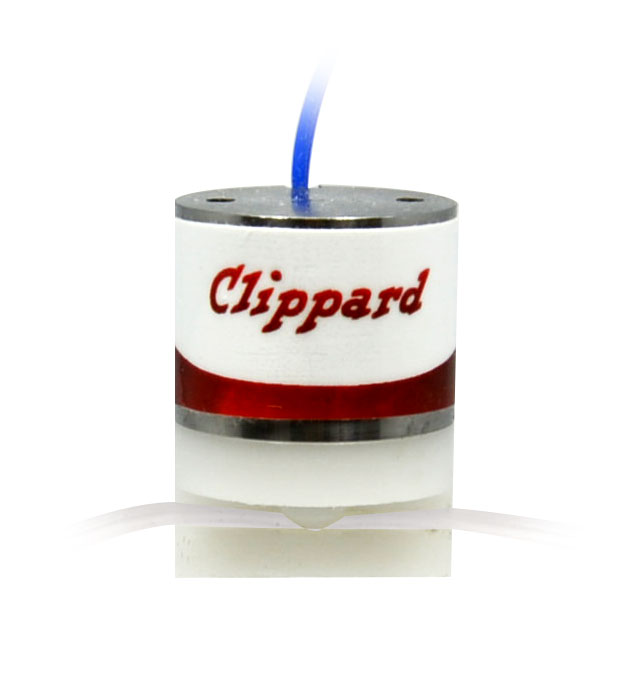

NPV-1 2-Way N.C. Pinch Valve, 0.75" Dia., 0.030" ID-0.065" OD Tubing, 24 VDC

Estimated to ship within 5 business days

Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.

Accuracy	>99%
Applications Form	Applications Form
Circuitry Option	None
Connection	18" (45 cm) Wire Leads
Data Sheet	Data Sheet, Hit & Hold Info, Panel Mount Info
Documentation	CE, RoHs (Download)
Function	2-Way Normally-Closed (1 Tube)
Material, Tubing	Sanitary Platinum-Cured Silicone
Material, Wetted	Silicone Tubing (no wetted areas in valve)
Max PSI	30 psi
Medium	Air, Water, Gas & Compatible Fluids
Mount	In-Line
Mounting	#2-56 or #4-40 manifold. M3 also available.
Operating Pressure	0 to 30 psig (0 to 2 bar) with standard medical/lab grade silicone tubing
Operating Temperature Range	-20 to 158°F (-29 to 70°C)
Power Consumption	1.0 Watts
Product Line Brochure	Isolation Valves
Response Time	20 ms
Thread Depth	#2-56 (max. 0.094")
Tubing	0.030" ID-0.065" OD, Medical
Tubing, Durometer Hardness	50 Shore A
Tubing, Elongation at Break	815%
Tubing, Length	Comes with 12" (30 cm) of selected tubing. Additional tubing available separately.
Tubing, Modulus at 200%	299 psi (21 bar)
Tubing, Tear Strength	263 ppi
Tubing, Tensile Strength at Break	1,388 psi (96 bar)
Tubing, Wall Thickness	0.0175" (0.4 mm)
Unit	Imperial
Voltage	24 VDC
Wattage	1.0 Watts
Weight (lbs.)	0.0500

Get CAD files:

Notes

Max. Pressure: 30 psi
