CR-ECO-3-12

   Product will ship within 15 business days
CR-ECO-3-12

More Views

Get CAD files:

Details

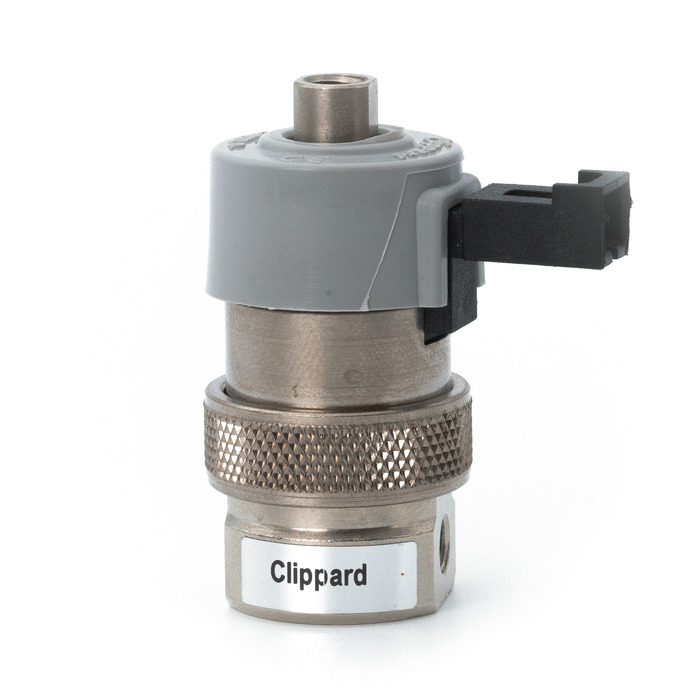

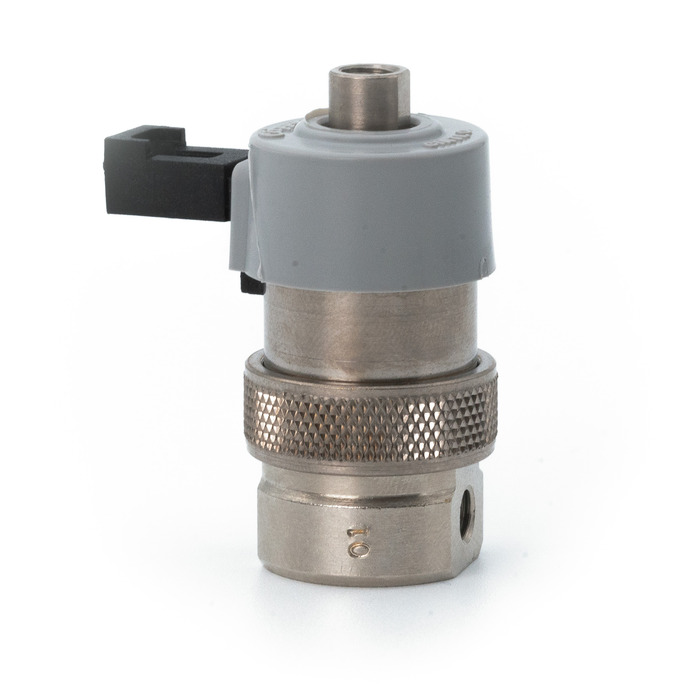

CR 3-Way Electronic Valve, Normally-Open, 12 VDC
See Catalog: Page 186

Uses

Normally-Closed, Normally-Open, Selector, or Diverter

Additional Information

Available SealsFKM Standard, Nitrile, EPR & Silicone Available
Connection0.025" Square Pin Connector
ConnectorAMP #103959-1
Connector P/NC2-RB18
CyclesOver 1 Billion
DocumentationCA Prop. 65
Flow17 l/min @ 100 psig (17 l/min @ 7 bar)
Function3-Way Fully-Ported
MaterialNickel Plated Brass Body & Core (CR-: Stainless Steel Core)
MediumClean, Dry Air (40 micron filter)
MountStandard In-Line Mount
Mounting#6-32 thd. Mounting Holes
Poppet Travel0.007"
Ports#10-32 Female In-Line Ports
Power Consumption1.2 Watts
Pressure Range28" Hg Vac. to 105 psig
Response Time5 to 10 milliseconds (nominal) @ 25 psig
SealsNitrile
SeriesCorrosion-Resistant
Voltage12 VDC
