CR-EC-3-24-L

   Estimated to ship within 10 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
CR-EC-3-24-L

More Views

Get CAD files:

Details

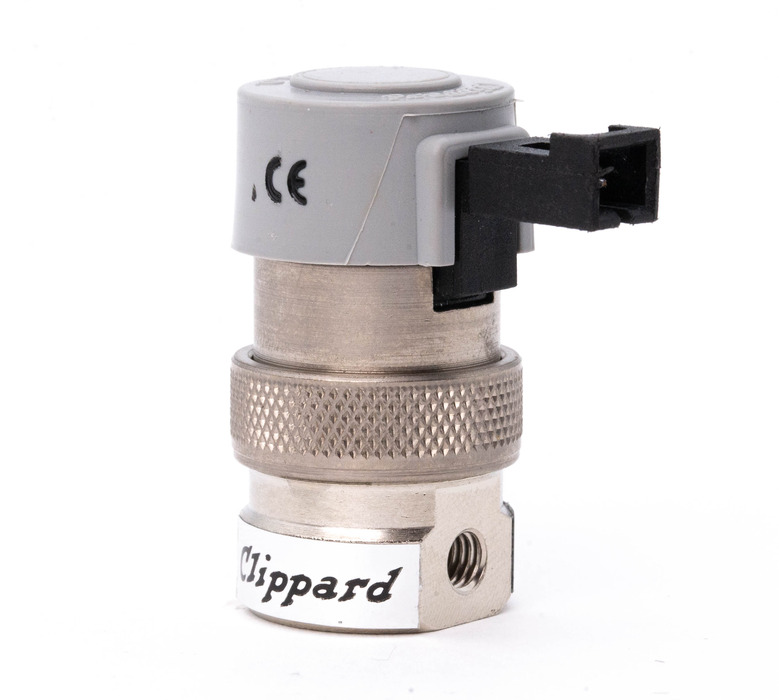

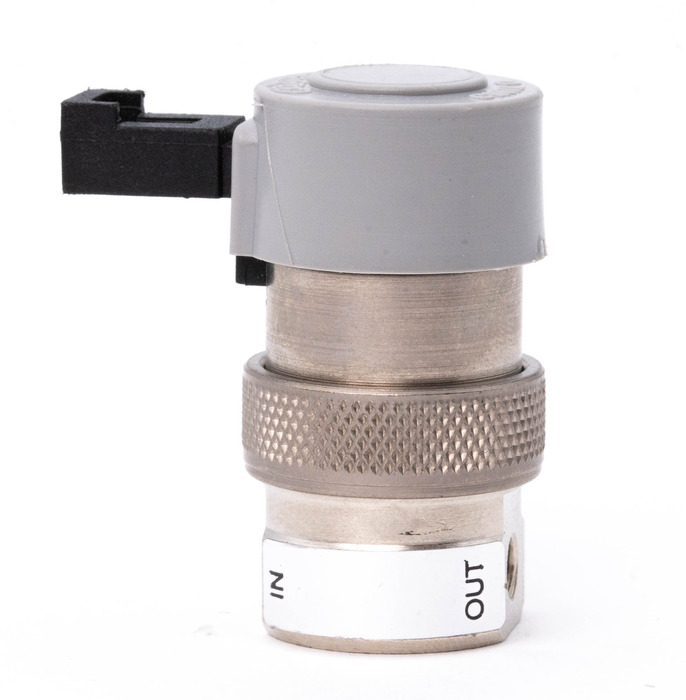

3-Way Elec. Valve, N-C, In-Line Mount, Pin Connector, 24 VDC
See Catalog: Page 185

Additional Information

2D Drawings2D Files
ConnectionTerminal Pin, 0.025"
Connector P/NC2-RB18
CyclesOver 1 Billion
DocumentationCA Prop. 65
Function3-Way Normally-Closed
Length1.560
MaterialNickel Plated Brass Body & Core
MediumClean, Dry Air (40 micron filter)
MountIn-Line
Mounting Holes#6-32 thd.
Poppet Travel0.007"
Port Size#10-32 Female In-Line
Power Consumption1.2 Watts
Pressure (Flow) Range50 psig (14 l/min @ 50 psig)
Response Time5 to 10 milliseconds (nominal) @ 25 psig
SealsNitrile
TypeCorrosion-Resistant
UnitImperial
Voltage24 VDC
Weight0.1700
Wire ConnectorAMP #103959-1
