Push Button Actuators

  Clippard Push-Button Actuators

Miniature Push Button Actuators

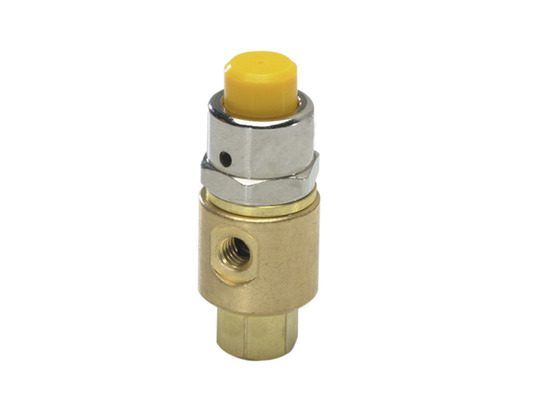

Captivated push buttons can be used on individual stem operated valves or in panel mount applications. These push buttons are available in a variety of colors, allowing you to color code, or easily differentiate between valves when designing control systems. The design of these push buttons allows maximum actuation of the valve with no over-travel or side load to the valve stem. This assures superior performance and long life.

Captivated buttons are commonly used as limit valves in conjunction with pneumatic cylinders, slides, and any variety of mechanical actuators. The rugged design coupled with precise actuation of stem operated valves make it perfect for applications where repetitive cycling of the valve is necessary. Designed to work with Clippard MAV, MJV, and FV series, these push buttons integrate easily into Minimatic® systems, providing optimal quality and efficiency in miniature pneumatic control.

• 1/8" & 3/16" Dia. Valve Stems
• Extended Button Style
• FIve Colors to Choose (Non-standard colors available; consult Clippard)

Heavy-Duty Push Button Actuators



Heavy-Duty Push Button Actuators can be used on individual stem operated valves or in panel mounting applications. These push buttons are available in a variety of colors, allowing you to color code, or easily differentiate between valves when designing control systems. They feature a built-in spring so the button always returns to the extended position when released with no additional load on the valve.

The design of these push buttons allows complete actuation of the valve with no over-travel or side load to the valve assuring superior performance and long life.

• Three Mounting Thread Sizes - 16 mm, 22 mm & 30 mm)

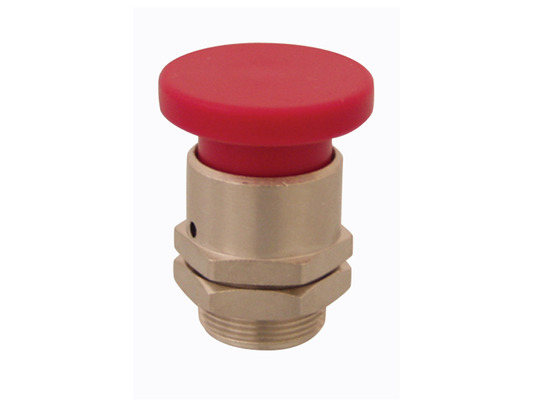

• Extended, Flush & Mushroom Styles
• Eight Colors to Choose (Non-standard colors available; consult Clippard)

Button Actuators





Clippard’s line of 22 mm and 30 mm actuators may be coupled with a variety of Clippard control valves with a simple adapter system providing a single assembly of a panel-mounted actuator and air valve.

The PB-22 and /part?sku=PB-30 have an aluminum housing that threads on to the actuator, and integral brass sleeve.  The PB-22-X fits the 22 mm series actuators (P22-XXX), and the /part?sku=PB-30 fits the 30 mm series of actuators (PL-XXX). The /part?sku=PB-85 is made of plastic, and is compatible with 30 mm actuators only.

• Flush, Extended, Mushroom, Twist, Push, Turn & Keyed
  Button Styles
• Four Colors to Choose (Non-standard colors
   available; consult Clippard)

View PB-22 Assembly Instructions
View /part?sku=PB-30 Assembly Instructions

Brass Push Button Actuators - 5/8" & 13/32" Dia.

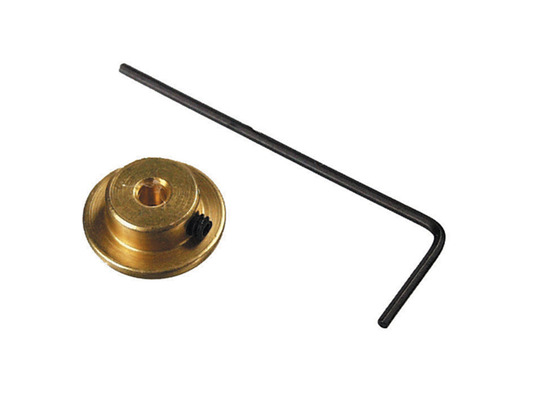

  Actuators mount directly on valve stem for manual operation of valve. Prevents over-travel of valve stem by providing a positive stop. 1/8” or 3/16” dia. mounting hole fits valve stems.
