- 2% hysteresis
- Excellent linearity—2.5 of full-scale
- 2 ms reaction time
- Millions of cycles
- Holds position for power savings or at a loss of power
- In-line, manifold and cartridge styles available

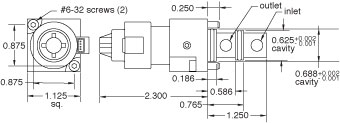

2D File | 2D File |
---|---|
Accessories | Bi-Polar Stepper Motor Driver: SCPVD-1, Replacement Cable: 25978 |
Applications Form | Applications Form |
Connection | Connector/Wiring Harness |
Data Sheet | Valve Data Sheet, Driver Data Sheet |
Driver | Bipolar Chopper Drive Required |
Flow Resolution | 0.7 l/min per Step |
Flow Resolution | 0.7 l/min per step |
Linearity | <2.5% of full scale |
Material, Seals | FKM standard, others available |
Material, Seat | Acetal (Std.) |
Material, Wetted | Stainless Steel, Aluminum, Brass, Acetal and FKM |
Max PSI | 100 |
Max. Flow | 0 to 280 l/min |
Medium | Air or Compatible Gases |
Needle | 3.5° |
Number of Ports | 2 |
Operating Instructions | Operationing Instructions |
Operating Pressure | Vac to 100 psig (7 bar) |
Operating Temperature Range | 32 to 184°F (0 to 84°C) |
Product Line Brochure | Proportional Valves |
Repeatability | <0.5% of Full Scale |
Response Time | 0.95 Second Fully-Open to Fully-Closed |
Supply Voltage to Motor | 5 VDC |
Unit | Imperial |
Wattage | 3.85 watts nominal only during adjustment. Zero power consumption to maintain position. |
Weight (lbs.) | 0.5000 |
