SCPV-1-3M

More Views

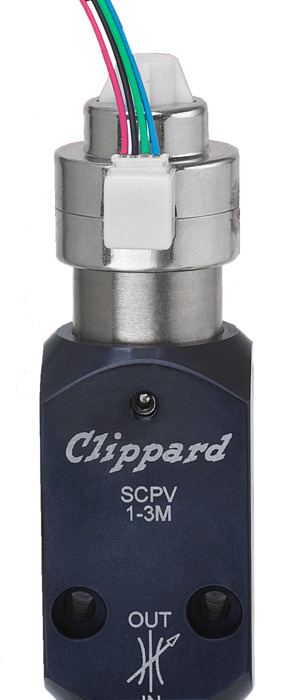

SCPV-1-3M

Utilizing the industry's most robust and powerful linear actuator, Clippard's high flow SCPV series stepper-controlled proportional valve is ideal for critical medical, analytical, and industrial automation applications. The SCPV is an excellent choice where high resolution, high flow, low hysteresis, and variable control of inert gases is required. In addition, the simple design but unique modifications possible allow for custom flow curves more specific to your application needs.
Estimated to ship within 1 to 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.
  • 2% hysteresis
  • Excellent linearity—2.5 of full-scale
  • 2 ms reaction time
  • Millions of cycles
  • Holds position for power savings or at a loss of power
  • In-line, manifold and cartridge styles available

2D File2D File
AccessoriesBi-Polar Stepper Motor Driver: SCPVD-1, Replacement Cable: 25978
Applications FormApplications Form
ConnectionConnector/Wiring Harness
Data SheetValve Data Sheet, Driver Data Sheet
DriverBipolar Chopper Drive Required
Flow Resolution0.7 l/min per step
Length3.7
Linearity<2.5% of full scale
Logic Input Voltage3.3V or 5V Jumper Selectable
Material, LubricantMagnalube-G (PTFE) (Std.)
Material, SealsFKM standard, others available
Material, SeatAcetal (Std.)
Material, WettedStainless Steel, Aluminum, Brass, Acetal and FKM
Max PSI100 psig
Max. Flow0 to 280 l/min
MediumAir or compatible gases
MountManifold
Needle3.5°
Number of Ports2
Operating InstructionsOperating Instructions
Operating PressureVac to 100 psig (7 bar)
Operating Temperature Range32 to 184°F
Operating Voltage7 to 35 VDC
Power Consumption3.85 watts nom
Product Line BrochureProportional Valves
Repeatability<0.5% of Full Scale
Response Time0.95 seconds fully-open to fully-closed
UnitImperial
Wattage3.85 watts nominal only during adjustment. Zero power consumption to maintain position.
Weight (lbs.)0.5000
