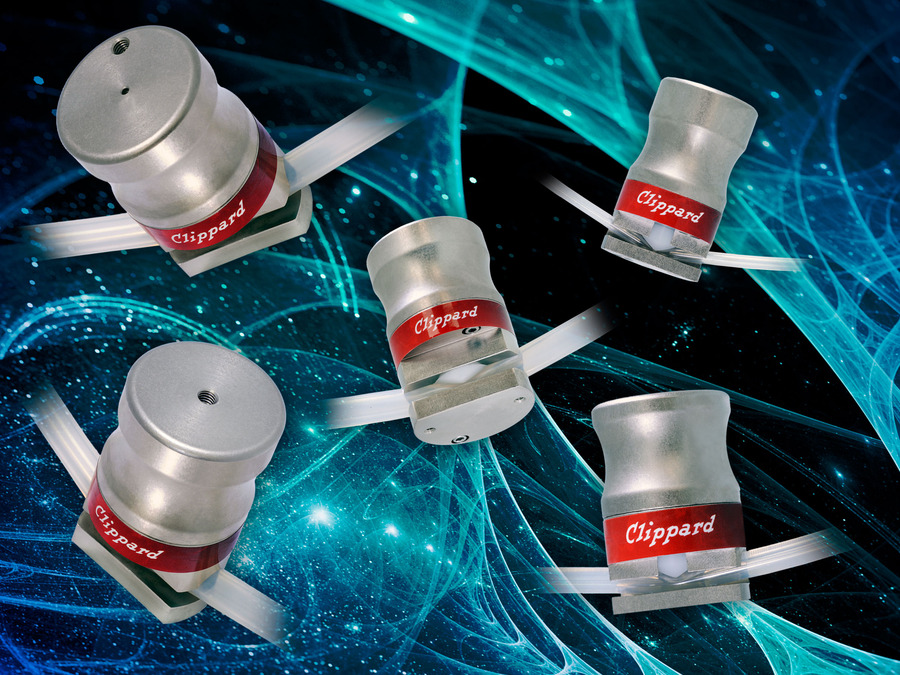

Common industries that utilize pinch valves for the benefit of isolating fluid from a mechanical valve including drug dispensing, laboratory equipment, wastewater, medical devices, chemical, food and beverage equipment, ceramic/glass/plastic, and solids handling.
Data Sheet | Data Sheet |
---|---|
Function | 2-Way Normally-Open |
Materials, Wetted | Polyurethane |
Max PSI | 250 psig (Pilot Pressure only) |
Medium | Air, Water, Gas & Fluids |
Mount | #4-40 Mtg. Holes |
Notes | Pressure to Close: 30 psig. Comes with 12" of selected tubing. Max tube pressure dependent on tubing selected. |
Operating Temperature Range | 32 to 230°F |
Static Burst Pressure | Over 500 psig at 70˚F |
Tubing ID-OD | 1/8" ID-1/4" OD, Polyurethane |
Tubing, Durometer Hardness | 85 Shore A |
Tubing, Length | Comes with 12" of selected tubing. Additional tubing available separately. |
Tubing, Wall Thickness | 0.0625" |
Weight | 0.3000 |
Notes
Pressure to Close: 30 psig. Comes with 12" of selected tubing. Max tube pressure dependent on tubing selected.
