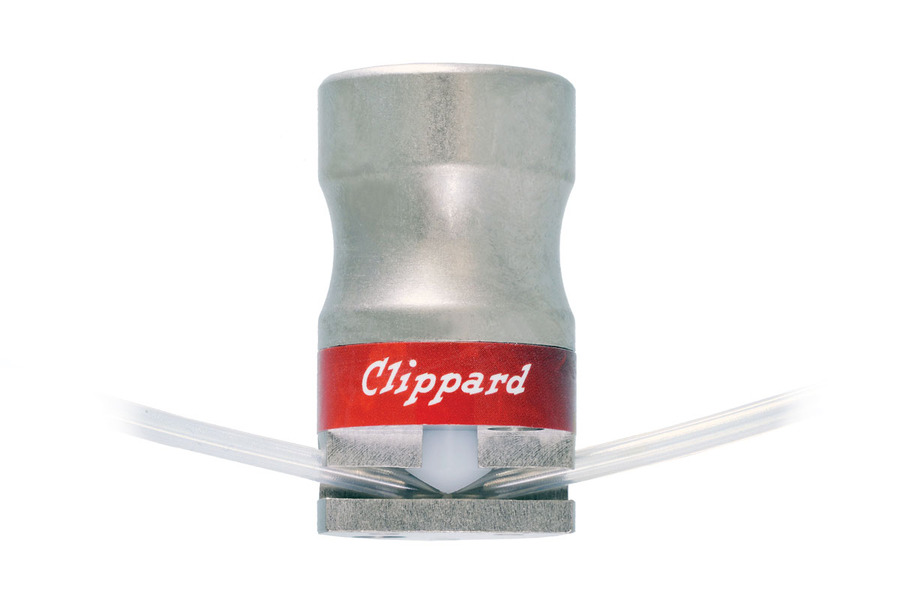

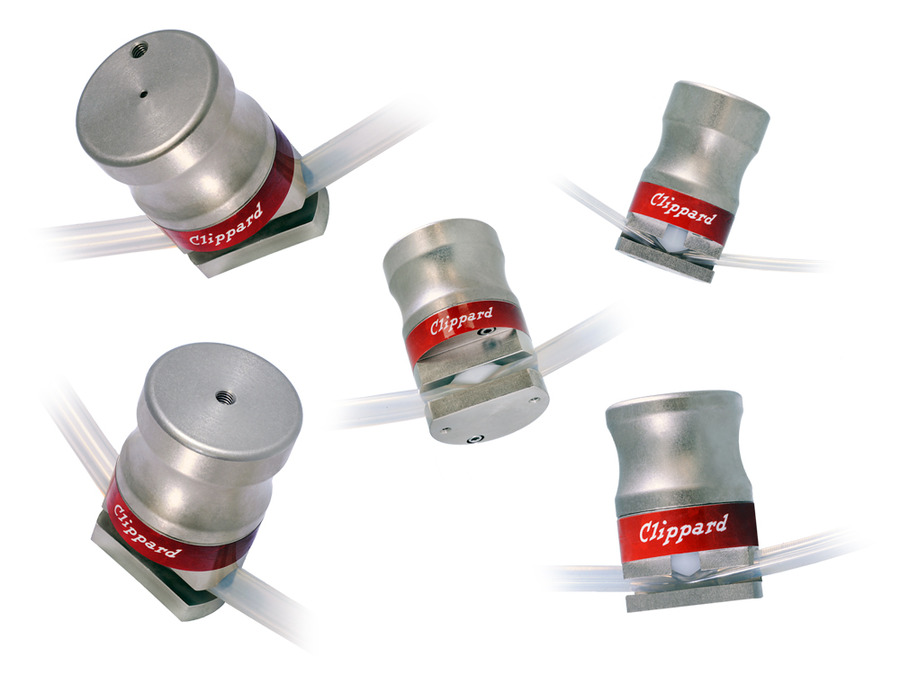

Common industries that utilize pinch valves for the benefit of isolating fluid from a mechanical valve including drug dispensing, laboratory equipment, wastewater, medical devices, chemical, food and beverage equipment, ceramic/glass/plastic, and solids handling.
Data Sheet | Data Sheet |
---|---|
Documentation | CE, RoHS |
Function | 2-Way Normally-Closed |
Material, Body | Aluminum, ENP |
Material, Tube | Sanitary Platinum-Cured Silicone |
Material, Wetted | Polyurethane Tubing (no wetted areas in valve) |
Max PSI | 250 psig (Pilot Pressure only) |
Max. Pilot Pressure | 250 psig (17 bar) |
Medium | Air, Water, Gas & Compatible Fluids |

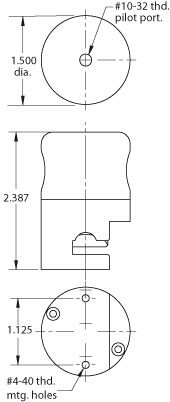

Mount | #4-40 Manifold |
Operating Temperature Range | 32 to 230°F |
Pilot Pressure (Max.) | 250 psig (17 bar) |
Product Line Brochure | Isolation Valves |
Tubing | 1/8" ID-1/4" OD, Food Grade |
Tubing, Durometer Hardness | 50 Shore A |
Tubing, Elongation at Break | 770% |
Tubing, Length | Comes with 12" (305 mm) of selected tubing. Additional tubing available separately. |
Tubing, Modulus at 200% | 280 psi (19 bar) |
Tubing, Tear Strength | 200 ppi (14 bar) |
Tubing, Tensile Strength at Break | 1,450 psi (100 bar) |
Tubing, Wall Thickness | 0.0625" (1.6 mm) |
Weight | 0.3000 |
Notes
Pressure to Close: 30 psig. Comes with 12" of selected tubing. Max tube pressure dependent on tubing selected.
