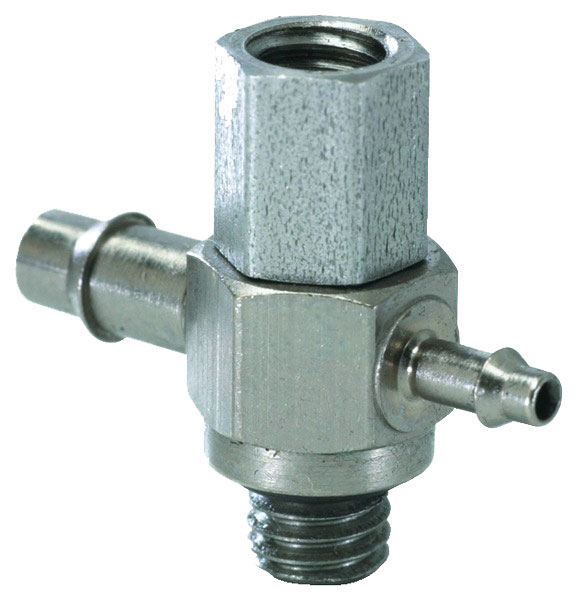

#10-32 to 1/8” ID Hose Universal Fitting, ENP, Pack of 5


Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose
See Catalog: Page 332

Additional Information

Barb DesignSuperior Barb Design
Bottom PortPositionable #10-32 Male Thd.
Hose Barb1/8" ID - 1/16" ID
Left Port1/16" Barb
MaterialElectroless Nickel Plated Brass
PackagePack of 5
Right Port1/8" Barb
SealNitrile O-Ring Std. FKM Available
SealsInternal/External Nitrile O-Rings Furnished
Thread#10-32 Male
Top Port#10-32 Female Thread
Tubing1/16" I.D. Tubing
Tubing1/8" I.D. Tubing
Wrench Flats1/4" Hex
