   Product will ship within 20 business days

More Views

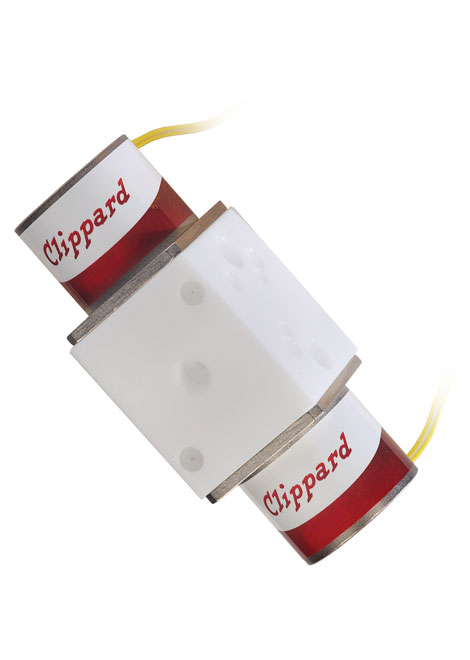

2-Way Normally-Closed Mixing Isolation Valve, 0.156" Orifice, 12 VDC


CE, RoHS Compliant, ISO 9001 Certified | More Info

Additional Information

Air Flow58 l/min @ 30 psig
Connector18" Wire Leads
DocumentationCA Prop. 65
Function2-Way Normally-Closed
MediumAir, Water, Gas or Corrosive Fluids
Mount#4-40. M3 also available.
NotesCE, RoHS Compliant, ISO 9001 Certified | More Info
Operating Pressure28" Hg to 30 psig
Orifice / Port Thread0.156" / 1/8" NPS
Porting2 Valves
Power Consumption7.2 Watts
Response Time5 to 20 ms
Technical Data SheetData Sheet
Temperature Range0 to 158°F (70°C)
Voltage12 VDC
Wetted MaterialsPTFE
