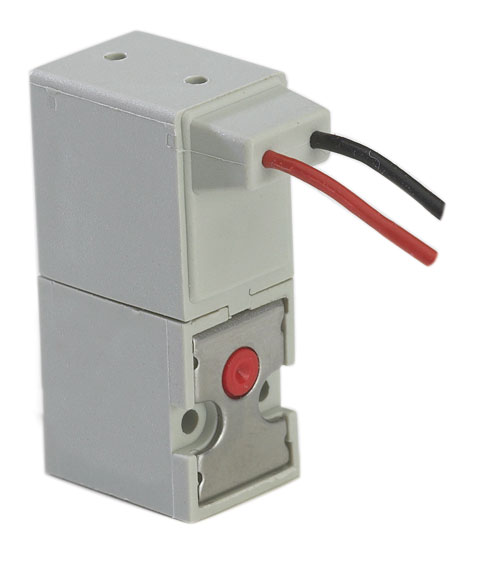

10 mm N-C 3-way Valve, Wire Leads, 11.8", 12 VDC
See Catalog: Page 411

Additional Information

2D Drawings2D Valves Drawings
Coil Insulation ClassF 311°F (155°C)
Connection24 AWG Wire Leads, 11.8" (300mm)

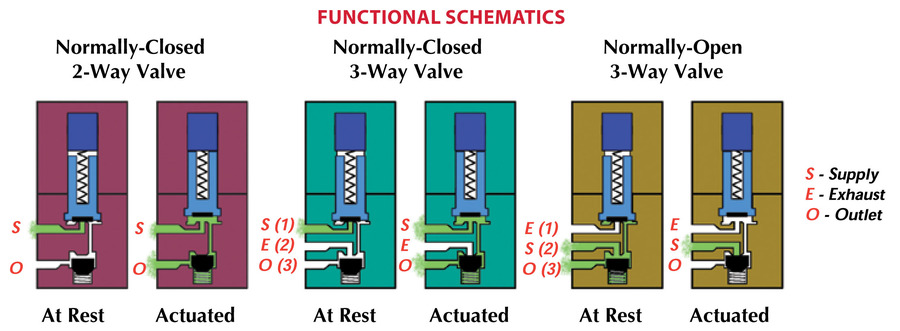

Function3-Way Normally-Closed
Manifold 2D Drawings2D Manifold Files

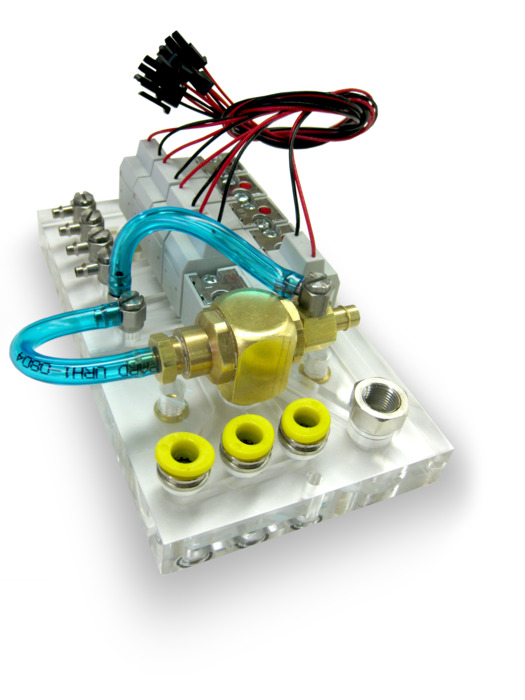

Manifolds10 mm Manifolds
MaterialsStainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available.

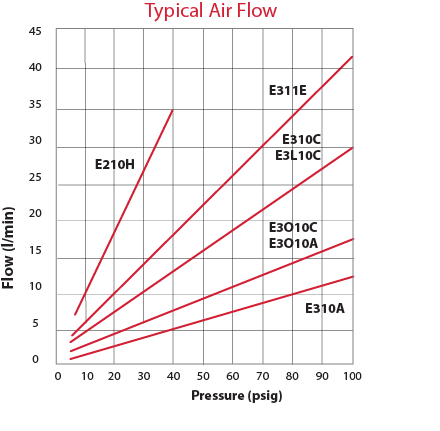

Max. Flow13 l/min @ 100 psig
MediumAir, Water, Gas or Compatible Fluids
Mount2 M17 screws
Operating Pressure0 to 100 psig (7 bar)
Operating Temperature Range14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air.
Product Line BrochureBrochure
Response Time10 ms nominal
Voltage12 VDC
Voltage Operating Range±10%
Wattage0.6 Watts
