10 mm Isolation Valves

Configure E*210S*

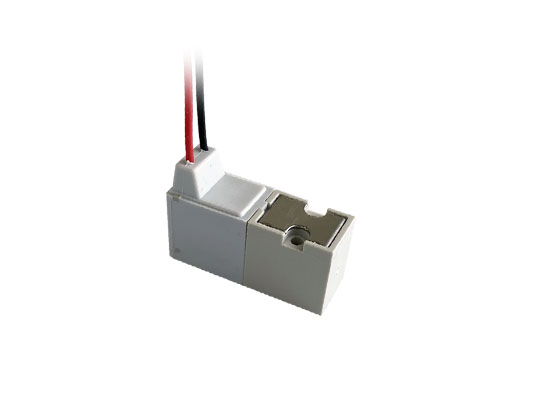

The E2S series valve combines the versatility of Clippard’s compact 10 mm valve line with the advantages of media isolation.

(Please select a valid configuration)

With a durable, glass-filled nylon body and an EPDM diaphragm that separates the actuation mechanism from the flow path, the E2S series is an excellent choice for dispensing a wide range of aggressive gases and liquids in applications that require compact, electronically-controlled valves which have minimal backpressure.

Applications include:

  • Printing equipment
  • Medical diagnostic devices
  • Dental equipment
  • Fermentation
  • Water treatment
  • Dispensing

    Customizaton Options:

  • Voltage
  • Power
  • Electrical connectors
  • IP Protection
  • Pressures
  • Silent operation for quiet environments

  • Back PressureAlways less than 2 psig (0.1 bar) back pressure on outlet port for proper function
    Coil Resistance ±5%
    Connection11.8" (30 cm) Wire Leads
    Data SheetData Sheet
    Function2-Way Normally-Closed Isolation (Mono-Directional)
    Length1.09" (27.6 mm)
    Material, BodyNylon
    Material, SealsEPDM
    Material, WettedGlass-Filled Nylon, EPDM
    Max. Temperature of Coil311°F (155°C)
    MediumAir, water, gas, or compatible fluids
    MountM2x14 (2 Screws)
    Operating Pressure0 to 36 psig (2.5 bar)
    Operating Temperature Range14 to 122°F (-10 to 50°C); must use clean, dry air when <32°F (0°C)
    Product Line BrochureIsolation Valves, 10 & 15 mm Valves
    Response Time6 ms
    Voltage12 VDC
    Weight0.21
