Standard Series Direct operating valves well-suited for single- or multiple-valve mounting in small spaces
Latching Series A short pulse of current shifts this valve which "latches"indefinitely; another pulse returns the valve.
High Flow 2-Way Series Specialty series for high flow applications.
ISO 15218 Series Conforms to ISO standard for mounting and port locations.
2D Drawings | 2D Valves File |
---|---|
Coil Insulation Class | F 311°F (155°C) |
Connection | 24 AWG Wire Leads, 11.8" (300mm) |

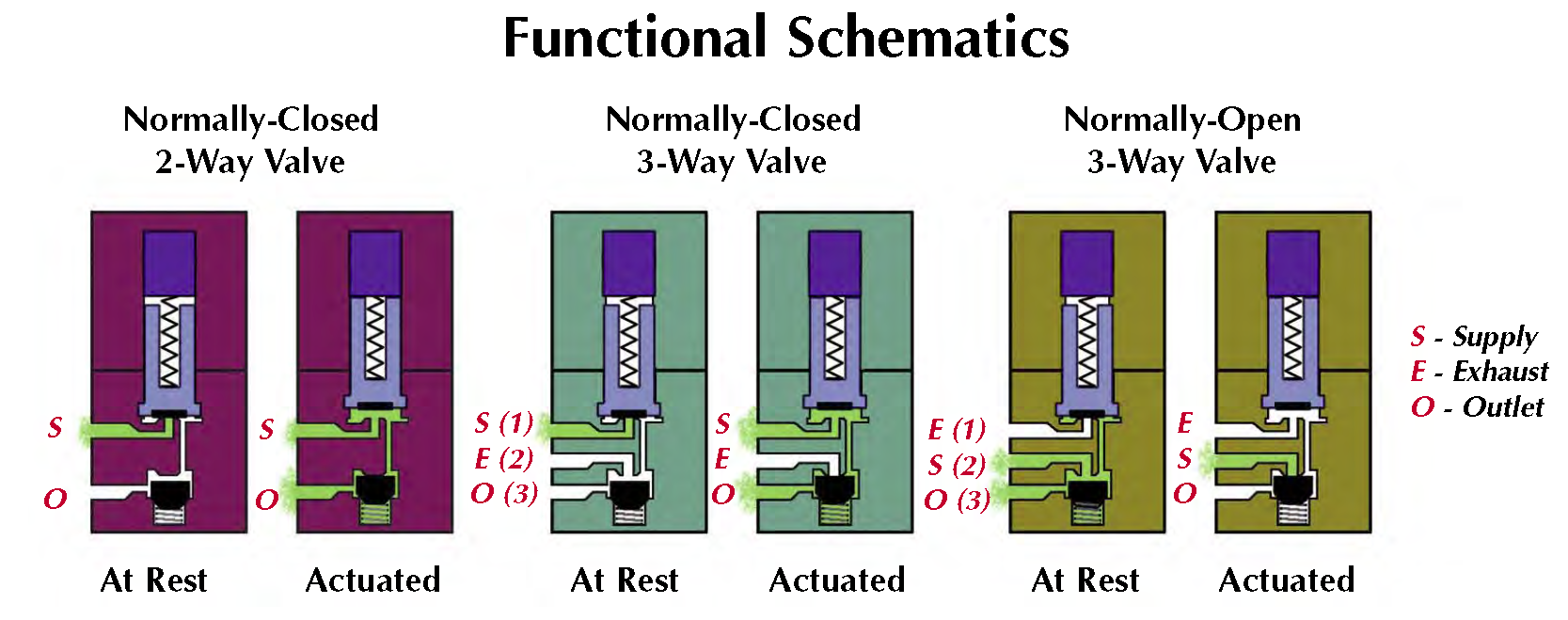

Function | 2-Way Normally-Closed |
Length | 1.08 |
Manifold 2D Drawings | 2D Manifold File |
Manifolds | 10 mm Manifolds |
Materials | Stainless steel core and springs, nylon body, FKM dynamic seals, and Nitrile gasket and static seals. FKM gasket and static seals available. |
Max. Flow | 13 l/min @ 100 psig |
Medium | Air, Water, Gas or Compatible Fluids |
Mount | 2 M1.7 screws |
Operating Pressure | 0 to 100 psig (7 bar) |
Operating Temperature Range | 14 to 122°F (-10 to 50°C) When below 32°F, must use clean, dry air. |
Product Line Brochure | Brochure |
Response Time | 10 ms nominal |
Voltage | 12 VDC |
Voltage Operating Range | ±10% |
Wattage | 0.6 Watts |
Weight | 0.0250 |
