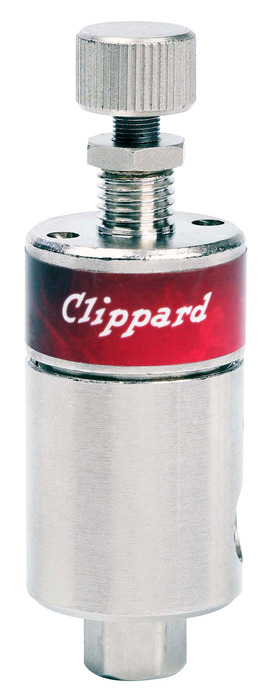

DR-2 Precision Regulator, #10-32, Relieving, Knurled Knob, 1-50 psig

Additional Information

2D Drawings2D Files
AccessoryKnob & Set Screw: AK2.5-B
Input PSI300 psig max.
MaterialElectroless nickel plated brass body, FKM seals, PFPE lube, stainless steel adjustment screw and spring
Max. Working Pressure Range1 to 50 psig (0.07-3.4 bar)
MediumAir, Water or Oil
Mount5/16-24 thread (M8x1.0 thread). Nut & lockwashers included
Non-Relieving OptionStandard Relieving
Ports (Inlet - Outlet)#10-32 Female - #10-32 Female
Repeatability±0.1 psi typical (±0.15 psi max) (±0.007 bar)
Set Point Sensitivity0.1 psi (0.007 bar)
Set Point Stability0.1 psi (0.007 bar)
Technical Data Sheet - ImperialData Sheet
Technical Data Sheet - MetricData Sheet
Temperature Range32 to 230°F (0 to 100°C)
