DR-2C-1

More Views

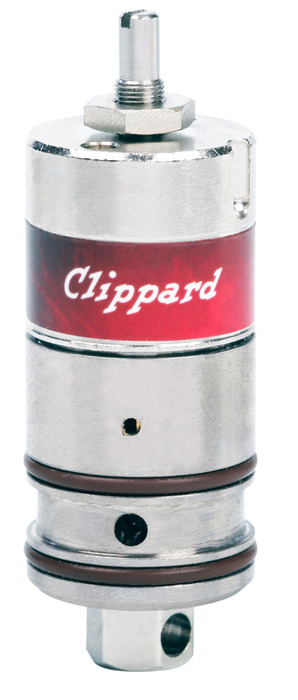

DR-2C-1

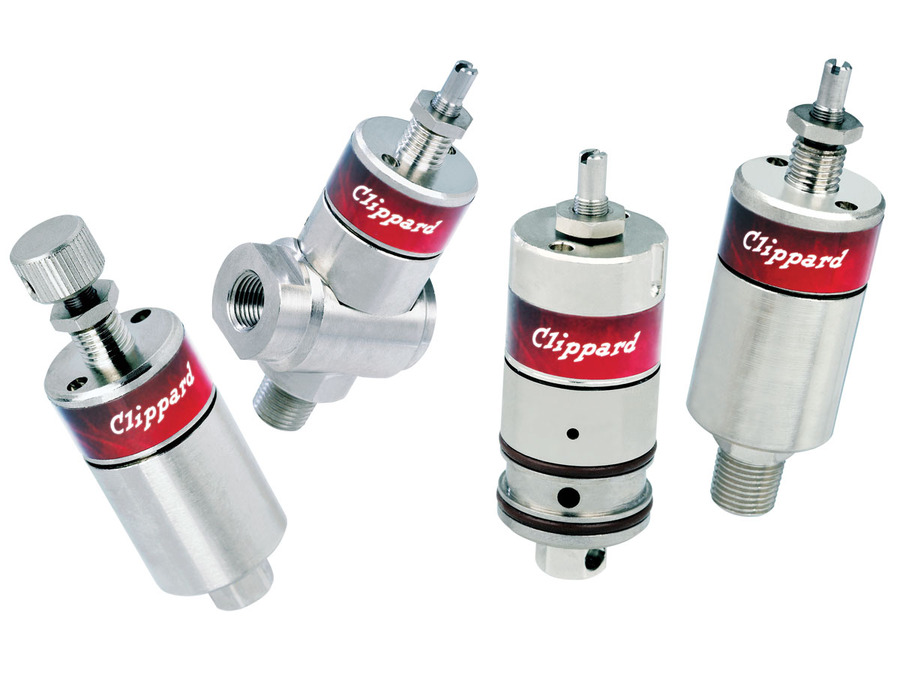

The DR-2 precision regulators are offered in either relieving or non-relieving versions. The relieving design maintains a constant pressure output even when downstream conditions change, while non-relieving regulators do not automatically compensate for changes in downstream flow or pressure. There is no vent to atmosphere, as in a relieving type regulator, and the output pressure can increase due to a downstream event. Non-relieving versions can also accommodate compatible liquid applications.
Estimated to ship within 25 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Contact your local Clippard Distributor for volume discounts.

  • Exceptional repeatability—± 0.25 psig
  • Provides a high level of precision and accuracy
  • For applications where zero air consumption is required (non-bleed)

    • 2D Drawings2D Files
    AccessoriesKnob & Set Screw: AK2.5-B
    AdjustmentScrewdriver Slot
    Data SheetData Sheet
    Included Item(s)Nut & Lockwashers
    Input PSI300 psig max. (20,7 bar)
    Material, BodyElectroless Nickel Plated Brass
    Material, SealsFKM with PFPE Lube
    Material, Spring & SpringStainless Steel Adjustment
    Max. Pressure0.5 to 10 psig (0,03-0,7 bar)
    MediumAir, Water* or Oil* (* non-relieving models)
    Mount#5/16-24 thread (M8x1.0 thread)
    Non-Relieving OptionStandard Relieving
    NotesAn extended 0.25" (6.4 mm) shaft accepts an adjustment knob or furnished with an exposed screwdriver slot with micro-adjustment (32 pitch thread). Knobs ordered separately.
    Operating Temperature Range32 to 230°F (0 to 110°C)
    Ports (Inlet - Outlet)Cartridge
    Product Line BrochureMechanical Valves
    Repeatability±0.25 psig (0.02 bar) typical
    Set Point Sensitivity≤0.5 psig (0.03 bar)
    Set Point Stability≤0.5 psig (0.03 bar)
    UnitImperial
    Weight (lbs.)0.3000
    Get CAD files:

    Notes

    An extended 0.25" (6.4 mm) shaft accepts an adjustment knob or furnished with an exposed screwdriver slot with micro-adjustment (32 pitch thread). Knobs ordered separately.
