DR-2BPNR

   Product will ship within 5 business days
DR-2BPNR

More Views

Details

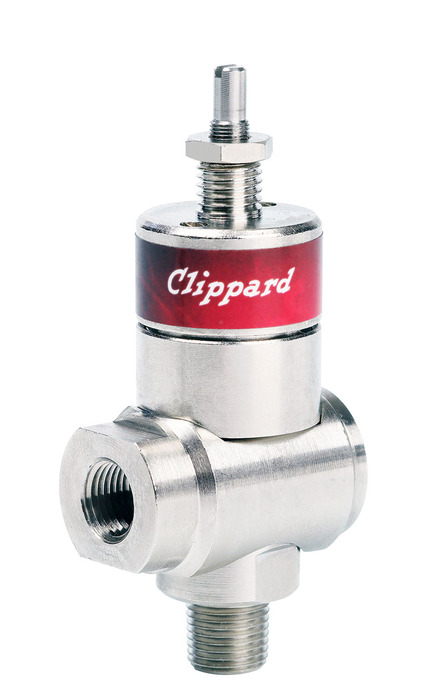

DR-2 Precision Regulator, 1/8" NPT Ports, Non-Relieving, 2-100 psig

Notes

Repeatability: ±0.1 psi; Set Point Sensitivity: 0.1 psig; Set Point Stability: 0.1 psi

Uses

Material: Electroless nickel plated brass body, FKM seals, PFPE lube, stainless steel adjustment screw and spring

Additional Information

AdjustmentScrewdriver Slot or Knob (ordered sep. #AK4-A)
Input PSI300 psig max.
Max. Working Pressure Range2 to 100 psig (0.1-6.9 bar)
MediumAir, Water or Oil
Mount#15/32-32 thread. Nuts and lockwashers furnished.
Non-Relieving OptionNon-Relieving
Ports (Inlet - Outlet)1/8" NPT Male - 1/8" NPT Fem.
Temperature Range32 to 230°F
UnitImperial
