9CS-2 1/4

More Views

9CS-2 1/4

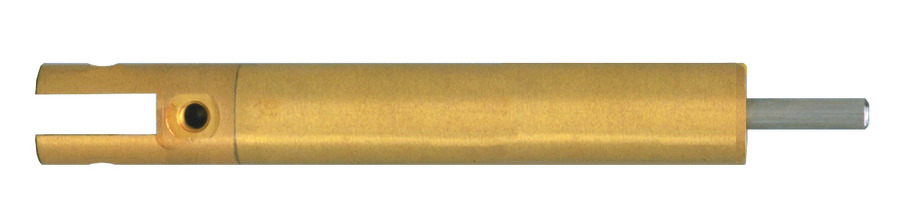

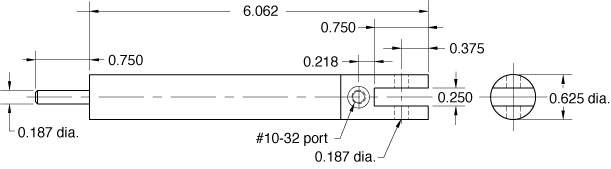

Obsolete-9/16” Single Acting, Clevis Mount, Spring Return Cylinder, 2 1/4”
Clippard has divested our cylinder product lines to Compact Automation. Click here to learn more.

To continue ordering the same cylinders you have ordered in the past, please click here to locate your nearest Clippard distributor.
ActionSpring Return, Air Extend
Bore0.5625
Max PSI125 PSI
MediumAir
MountClevis Mount
Ports10-32 Thread
Power Factor0.22
RodRotating Rod
Rod Diameter0.1875
Spring Force (extended)3.7 lb
Spring Force (retracted)1.6 lb
Stroke2.2500
Temperature Range30 to 230°F
Weight (lbs.)0.3200
Generate PDF Data Sheet
Get CAD files:

Notes

Non-Threaded Stainless Steel Rod
