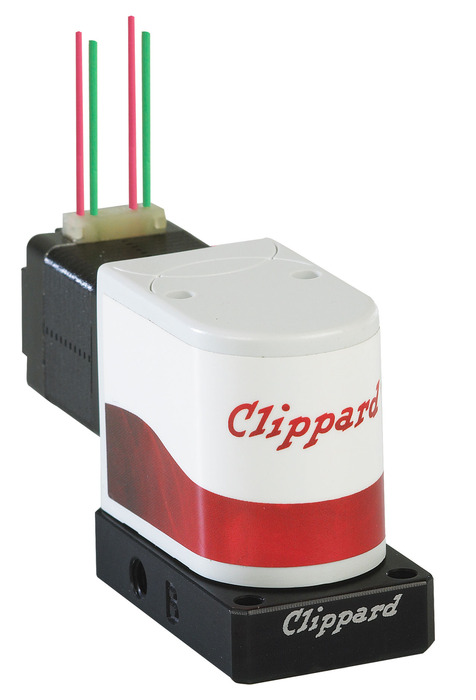

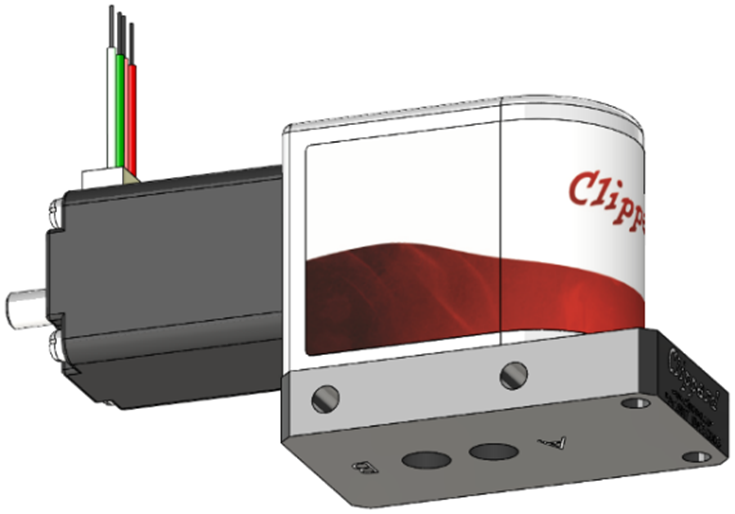

Eclipse Proportional Isolation Valves

More Views

Configure EIV

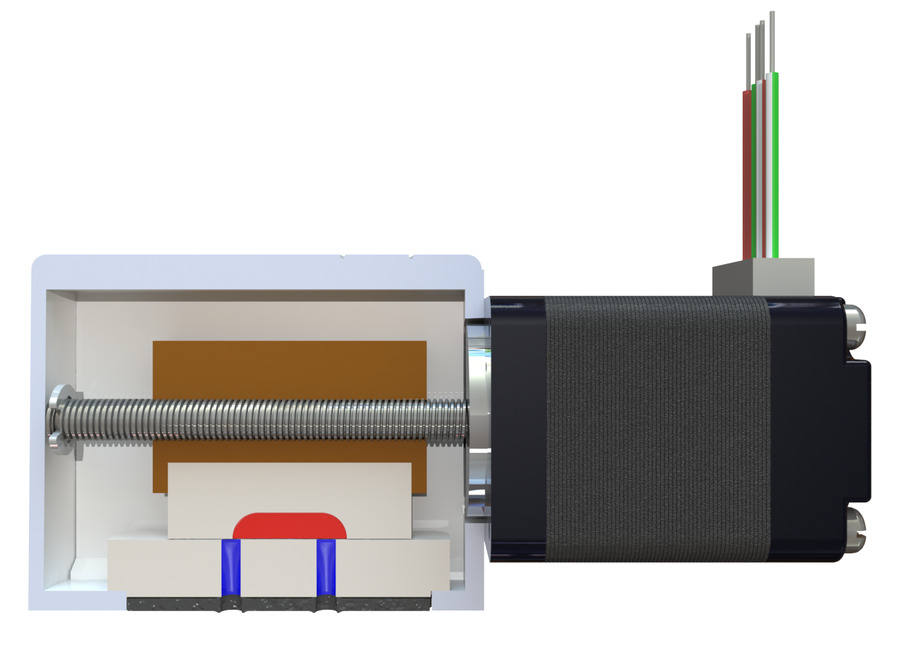

A proportional isolation valve like no other...

Utilizing the industry's most robust and powerful miniature linear actuator, the patented stepper-controlled Eclipse proportional isolation valve leads the industry in performance and durability. This valve is ideal in critical applications for liquid and gas delivery, medical, analytical and industrial automation requiring ultra fine resolution and excellent repeatability. In addition, the unique design allows for custom flow profiles.

(Please select a valid configuration)

  • Leak free (<0.05 sccm)
  • Excellent linearity (<4% of full-scale)
  • Fast response (<2 ms reaction time)
  • Cycle life of typically >1 million
  • Repeatability <0.5% of full travel
  • U.S. Patent No. 10,738,904

    • **NotePlease consult factory for current pricing

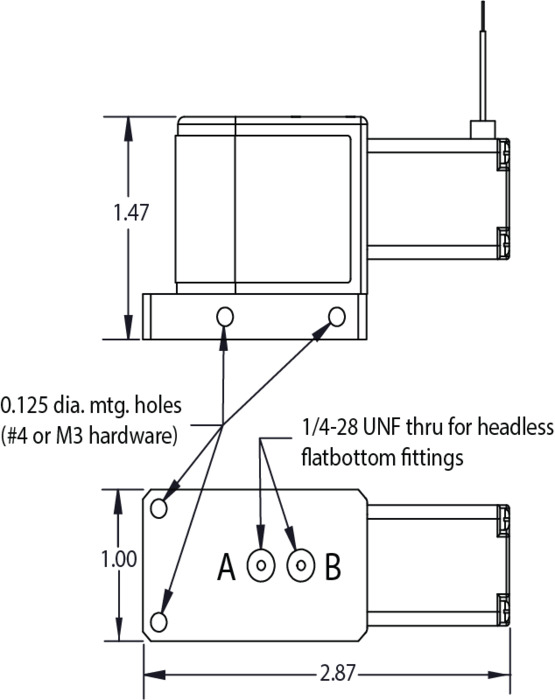

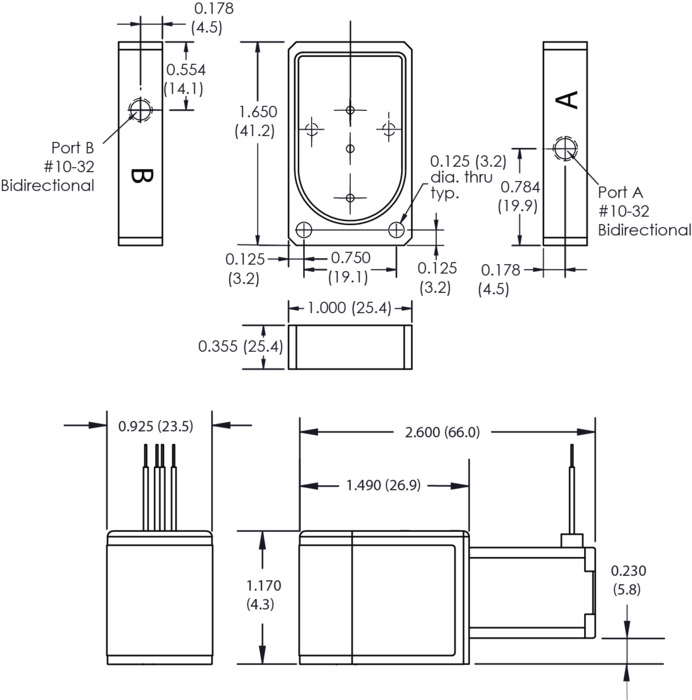

    2D File2D File
    Current/Phase0.49 Amps per Phase
    Cycle LifeTypically >1 million
    Data SheetValve Data Sheet, Driver Data Sheet
    DriverBipolar Chopper Drive required
    Linearity<4% of Full Scale
    Material, BodyCeramic

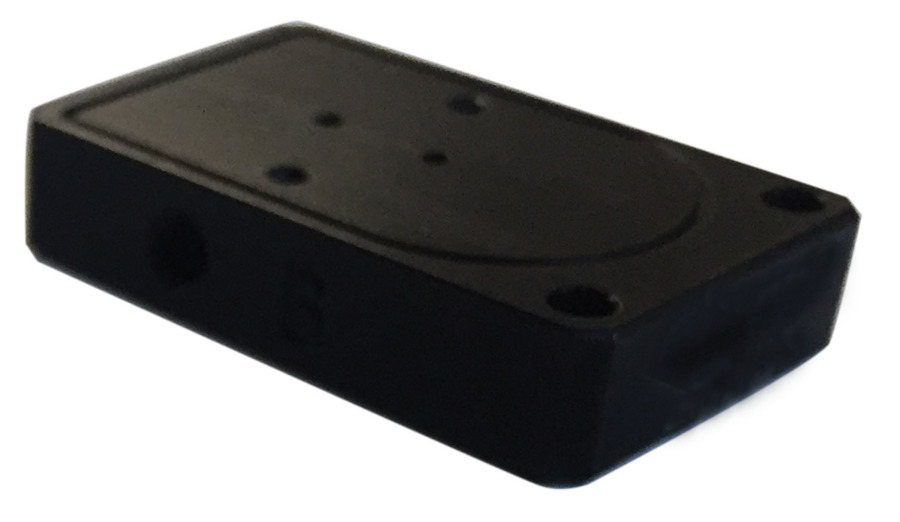

    Material, WettedCeramic (others depending on porting option)
    Max PSI30 psig (2 bar)

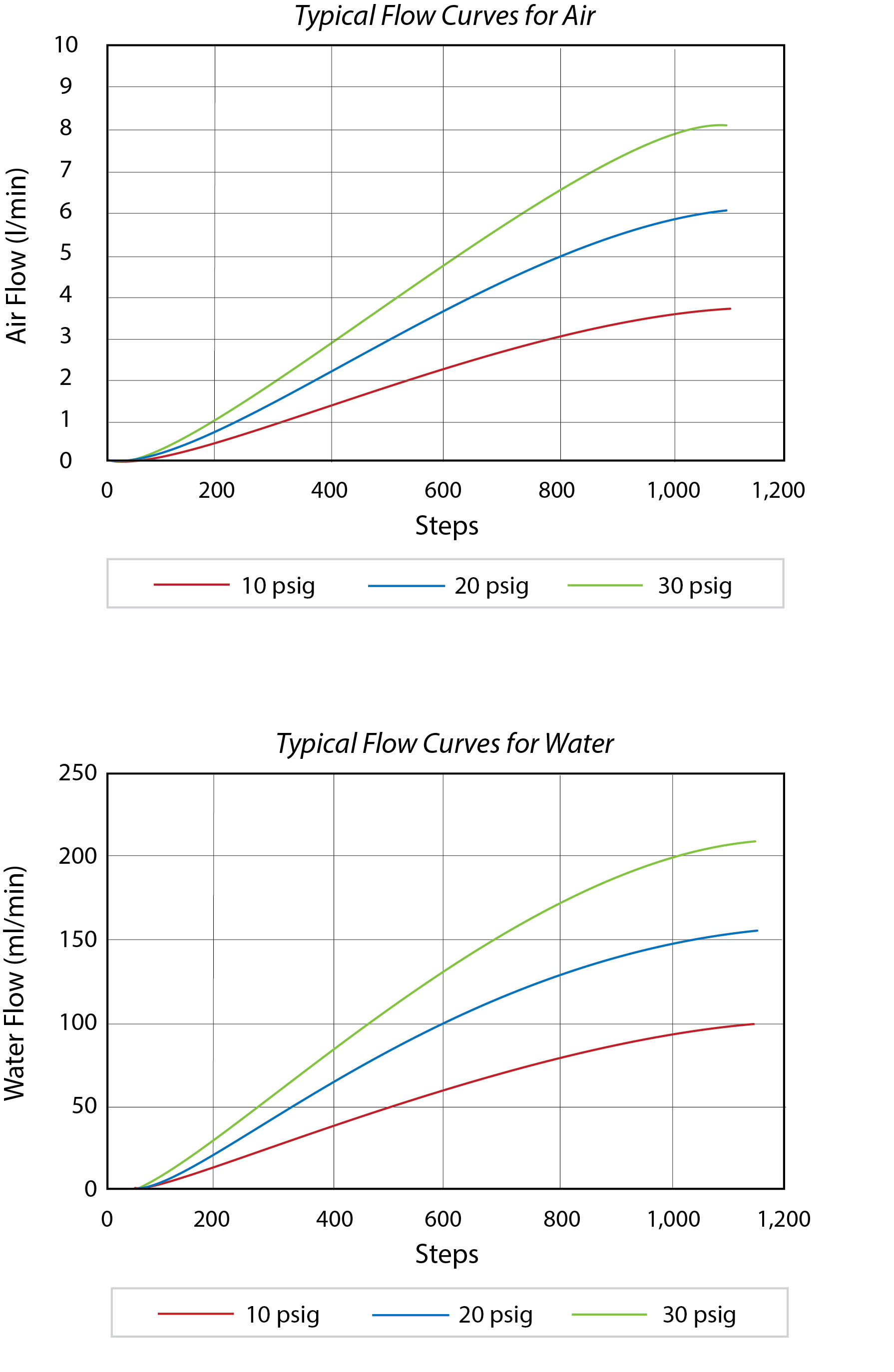

    Max. FlowAir: 0 to 7 l/min -0/+10%; Water: 0 to 190 ml/min -0/+10% @ 30 psig (2 bar)
    MediumLiquids & Gases
    NoteISO 9001
    Operating InstructionsOperating Instructions
    Operating PressureVacuum to 30 psig (2,1 bar)
    Operating Temperature Range32 to 180°F (0 to 82°C)
    Position Resolution0.00006" per step
    Product Line BrochureIsolation Valves, Proportional Valves
    Proof Pressure (Overpressure)50 psig (3,4 bar)
    Repeatability<0.5% of Full Travel
    Response Time<2 ms
    Supply Voltage to Motor Driver20 VDC @ 30 psig (2,1 bar)
    Wattage2.5 watts nominal only during adjustment. Zero power consumption to maintain position.

    Notes

    Please consult factory for current pricing
