VA-038

   Product will ship within 1 to 2 business days
VA-038

More Views

Details

THNTD Circuit with Latching Control (Combo VA-023 & VA 034)

Notes

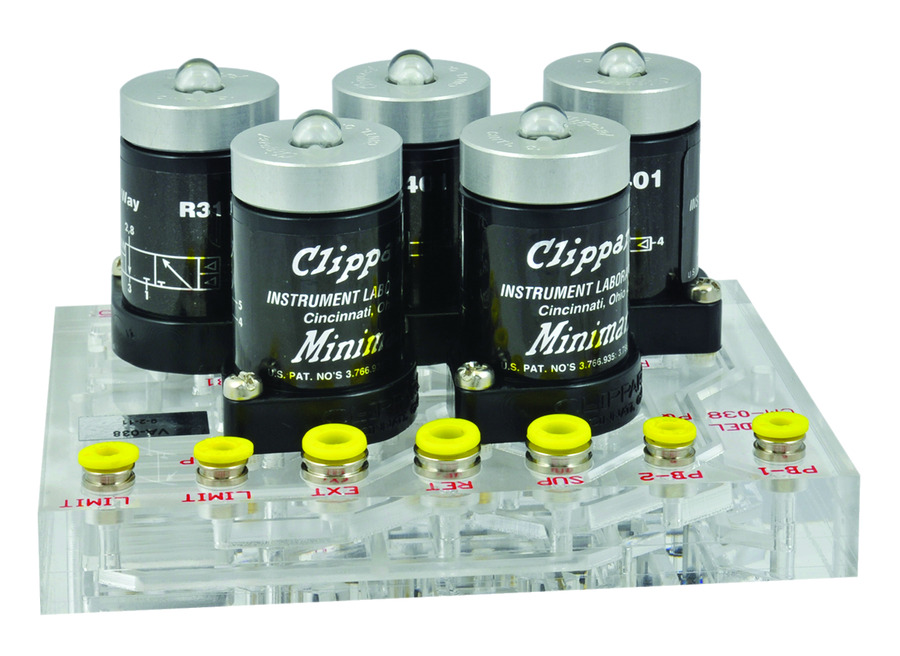

Includes two R-431 & R-401 Valves, one R-315 Valve, one CM-038-PQ Manifold, Red & Green Palm Buttons, Fittings & Tubing
See Catalog: Page 242

Uses

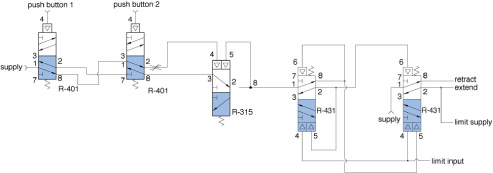

The VA-038 module is for operation of a clamp or cylinder operation where THNTD input is required to be held continuously until the position desired is fully engaged. The THNTD circuit releases the latch and returns the cylinder to the retracted position.

Additional Information

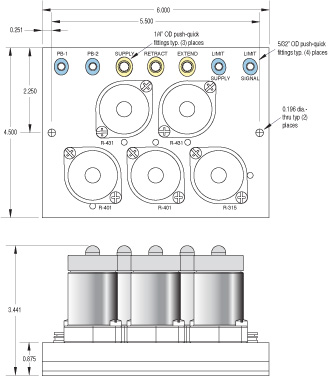

Length4.250"
Max PSI40 to 150 psig
Temperature Range32 to 140°F
