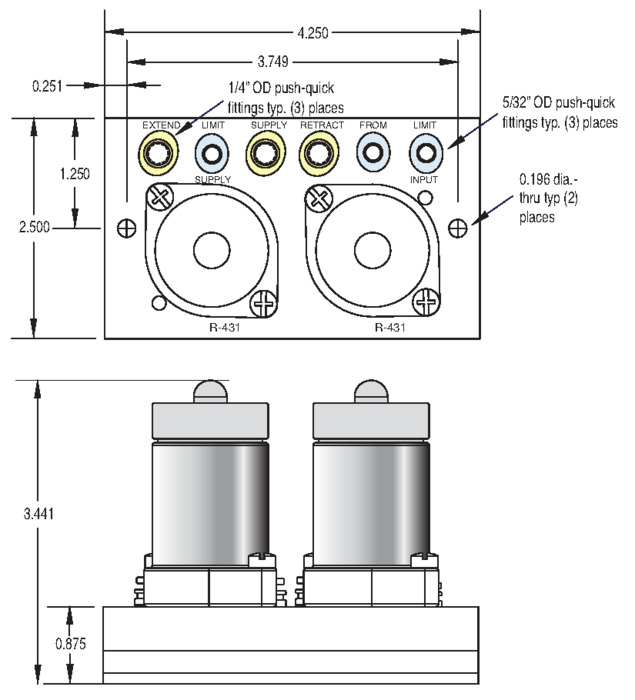

| Length | 4.250" |
|---|---|
| Max PSI | 40 to 150 psig |
| Temperature Range | 32 to 140°F |
Notes

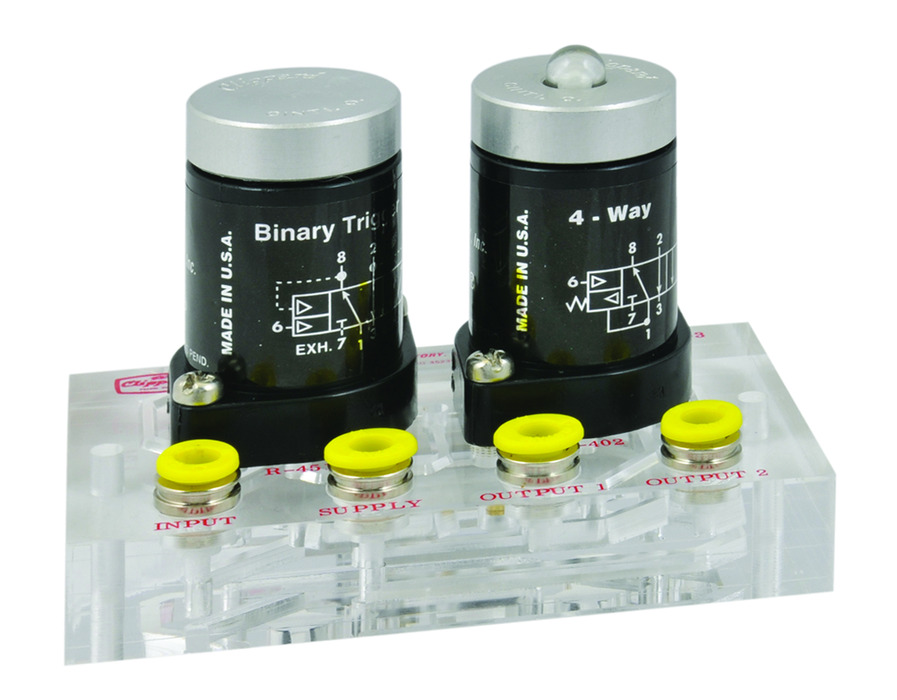

Includes two R-034 Valves, one CM-034-PQ Manifold, 10' 1/4" OD Tubing and 5' 5/32" OD Tubing
Uses

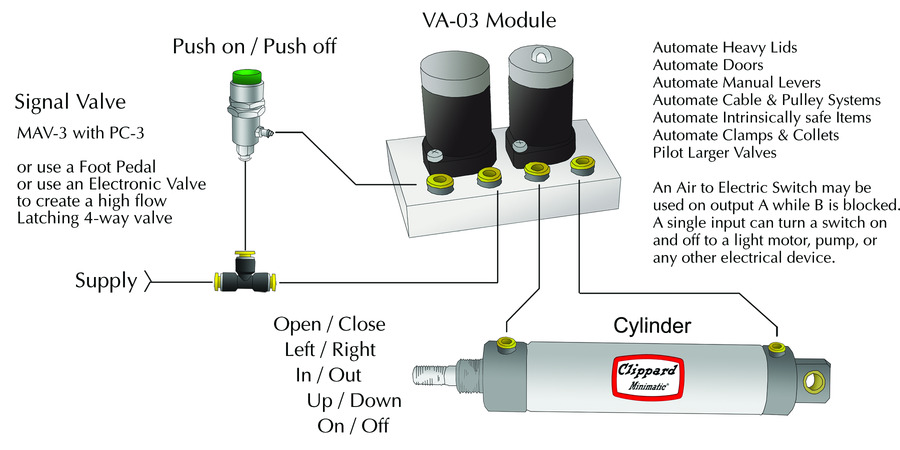

The VA-034 module is for operation of a clamp or collet system where Two-Hand, No-Tie-Down input is required to be held continuously until the position desired (limit valve) is fully engaged.THNTD circuit is re-engaged to release the clamp mechanism.
