VA-031

   Product will ship within 1 to 2 business days
VA-031

More Views

Details

Back Pressure Sensing for Double-Acting Cylinder

Notes

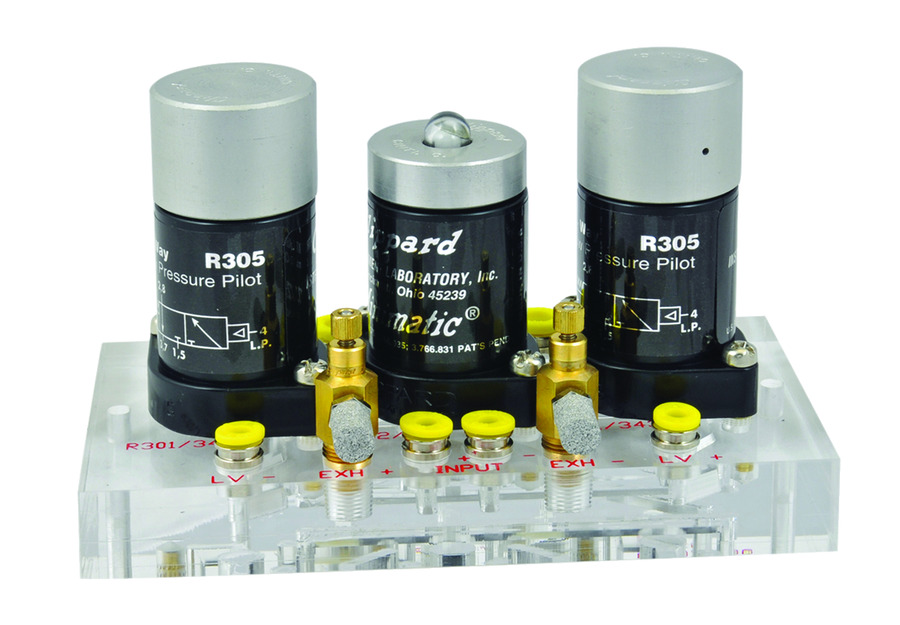

Includes two R-305 & one R-412 Valves, one CM-031-PQ Manifold, one MNV-1KP Needle Valve, Noise Muffler & Appropriate Tubing
See Catalog: Page 251

Uses

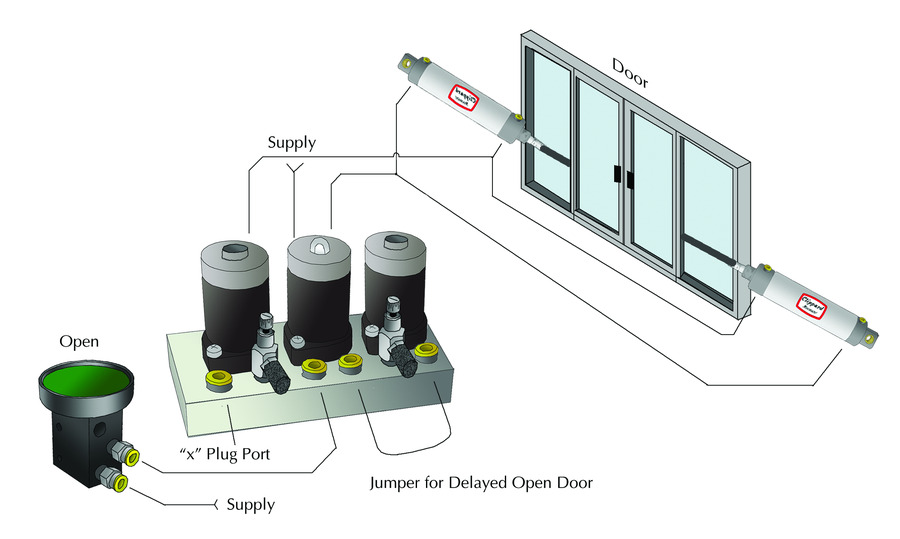

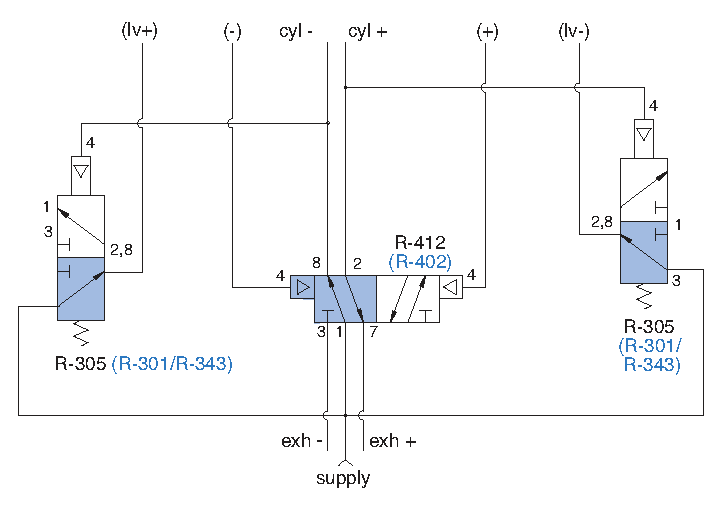

The VA-031 module is very versatile for controlling a double-acting cylinder without limits. The circuit uses back pressure to send a signal when the cylinder finishes moving.

Additional Information

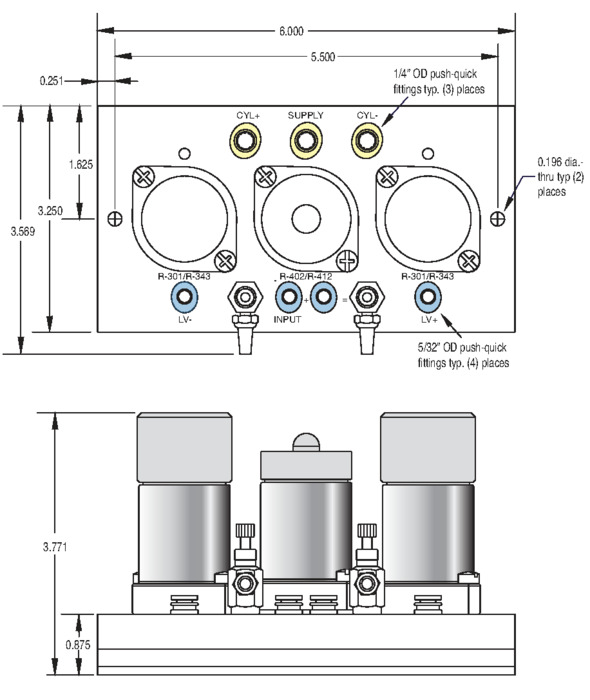

Length6.000
Max PSI40 to 150 psig
Temperature Range32 to 140°F
Weight0.21
