VA-023

More Views

VA-023

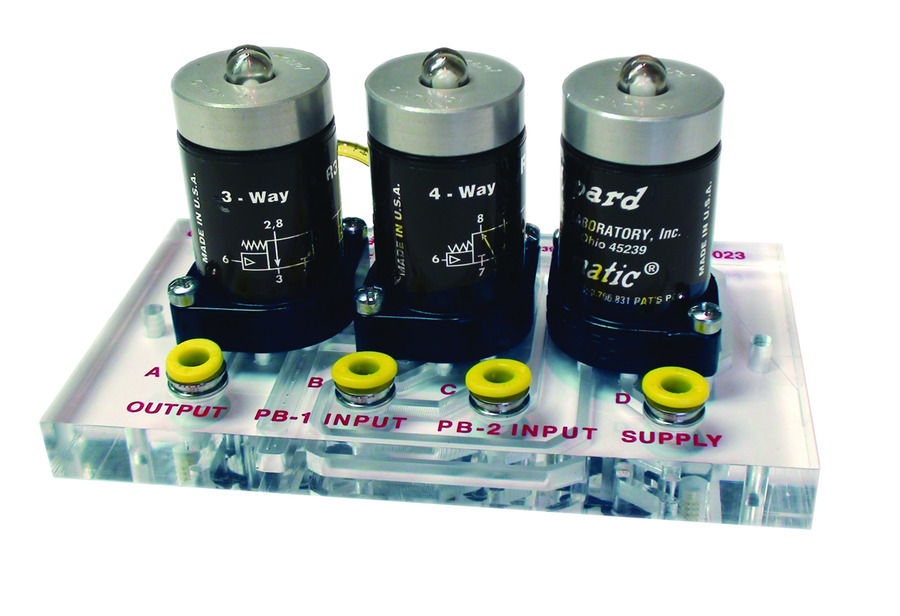

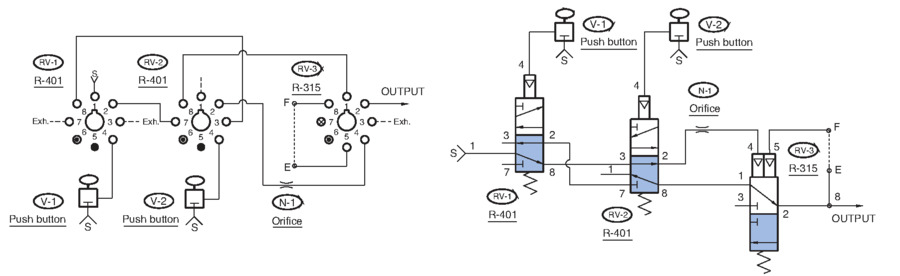

Two-Hand, No-Tie-Down Circuit
Estimated to ship within 1 to 2 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.
Included ItemsOne R-315 Valve, Two R-401 Valves, One CM-023-PQ Circuit Manifold, Fittings & Tubing
Length6.250"
Max PSI50 to 120 psig
Operating Pressure50 to 120 psig
Operating Temperature Range32 to 140°F
StyleCircuit, No Palm Button
Get CAD files:

Notes

Includes one each R-315 & R-401 Valves and one CM-023-PQ Manifold

Uses

The main function of this control is to require a machine operator to use both hands at the same time to actuate the equipment, helping to insure that the operator’s hands are not in a position to be injured by the machine as it is in motion.
