TT0-404-BLK

More Views

TT0-404-BLK

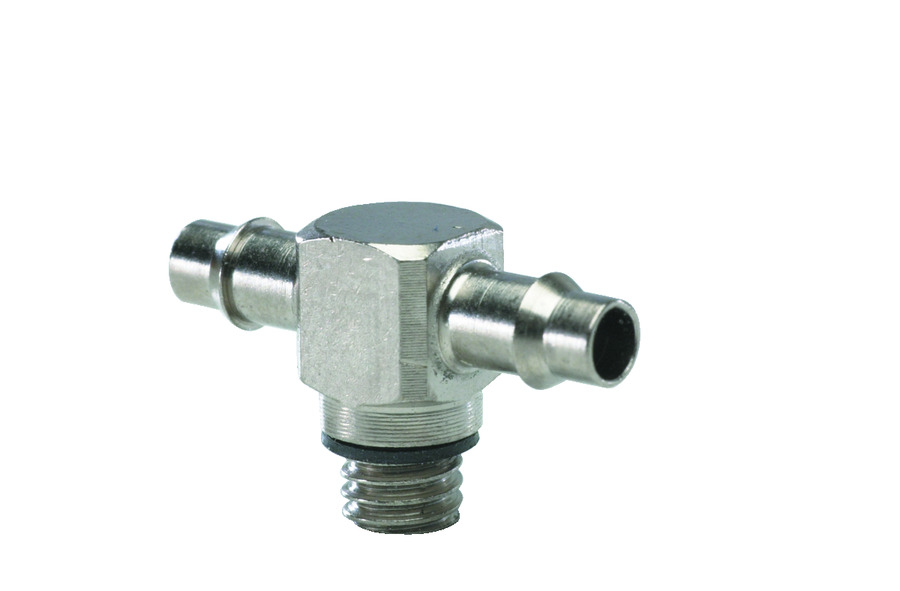

Minimatic barb fittings provide a flexile, easy alternative to ferrule and push-to-connect/push-quick fittings. Designed for use with urethane hose, barb fittings will provide a leak-free connection that will hold well behond the working pressure of the hose without the need for additional clamps.
Estimated to ship within 2 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Bulk pricing.
Must be purchased in quantities greater than 250
Contact your local Clippard Distributor for volume discounts.

  • Miniature size provides low profile
  • Electroless Nickel-Plated Brass
  • Available with many hose barb sizes
  • Holds to the burst pressure of polyurethane hose

    • Material, BodyElectroless Nickel Plated Brass
    Material, SealNitrile Gasket Std. FKM Available
    PackageBulk (Minimum of 250 pc)

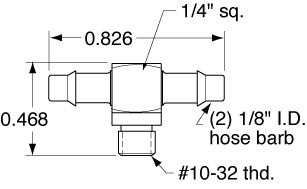

    Port, Bottom#10-32 Male Thread
    Port, Left1/8" Barb
    Port, Right1/8" Barb
    Product Line BrochureMechanical Valves
    SealsNitrile Gaskets Ordered Separately #11761-2
    StyleThreaded Tee
    Tubing1/8" I.D. Tubing
    Weight (lbs.)0.0050
    Wrench Flat1/4" Square
    Generate PDF Data Sheet
    Get CAD files:

    Notes

    Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose
