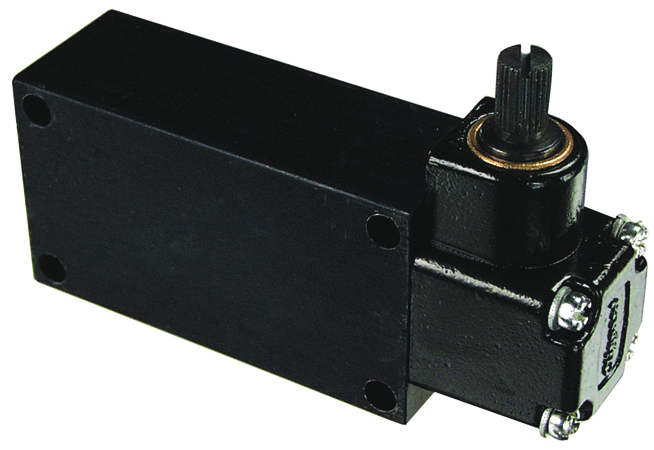

| Air Flow | 280 l/min @ 50 psig; 540 l/min @ 100 psig |
|---|---|
| Input PSI | 300 psig |
| Medium | Air |

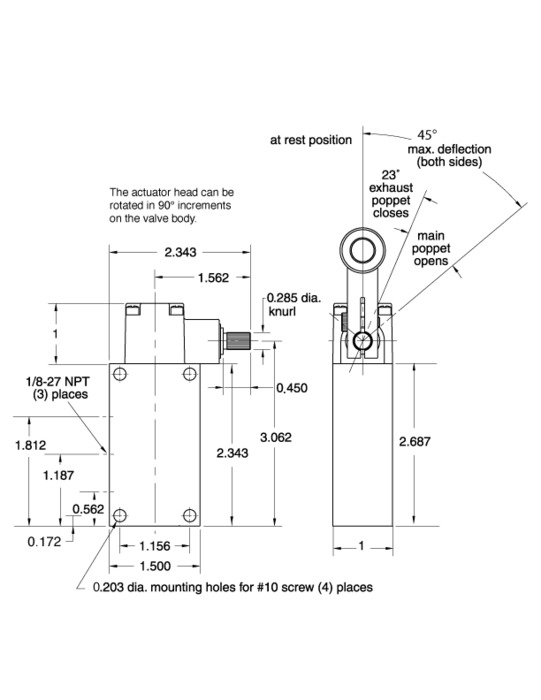

| Mount | Four 13/64" dia. mounting holes provided in valve body for use with #10 screw, or for tapping 1/4-20. |
| Stem Travel | 50° |
| Temperature Range | 32 to 230°F |
| Weight | 0.7300 |
Notes
For convenience in porting away exhaust air or attaching muffler. It should not be restricted exhaust port is not used on 2- ways.
