EC-2-24-L

More Views

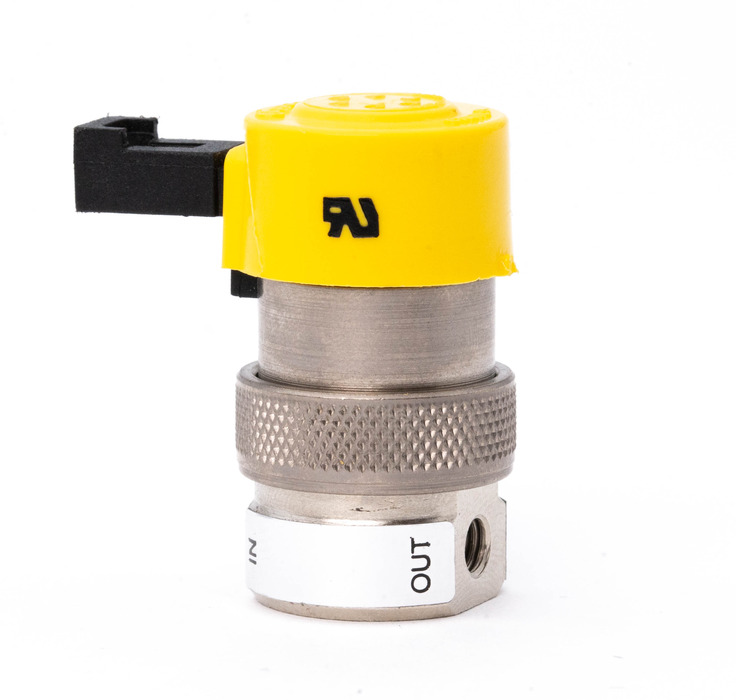

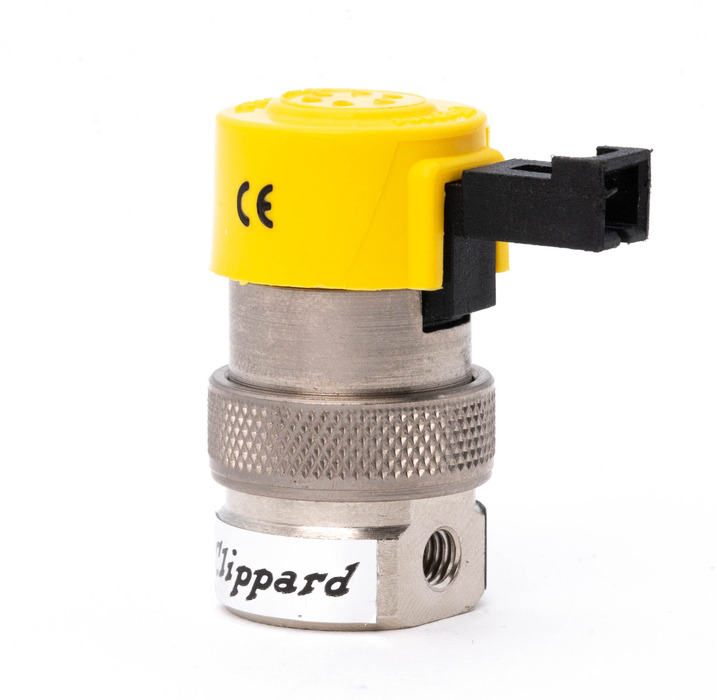

EC-2-24-L

Clippard's original EV series valve design is a deceptively simple arrangement featuring a remarkably quiet, low power operation. The Clippard "spider" armature spring is the only moving part, and its motion to operate the valve is a mere 0.007" travel. As a result, this valve features an exceptionally long life—proven to last more than 1,000,000,000+ cycles! Low voltage DC inputs move the spider, generating extremely fast response times of 5 to 10 milliseconds while using only 0.67 watts of power. The EV series is cool running and its compact, lightweight design makes it easy to mount in small spaces.
Estimated to ship within 5 business days
Quantities and lead times are changing daily due to supply chain challenges. We appreciate your patience and understanding.
Contact your local Clippard Distributor for volume discounts.

  • 1,000,000,000+ cycle life
  • Low vibration & noise
  • 100% tested
  • Low power
  • Fast response time
  • Compact & lighweight
  • Many styles & options available

  • 2D Drawings2D Files
    BrochureBrochure
    ConnectionTerminal Pin, 0.025"
    ConnectorC2-RB18
    CyclesOver 1 Billion
    DocumentationCA Prop. 65
    Function2-Way Normally-Closed
    Length1.56
    Material, BodyNickel Plated Brass Body & Core
    Material, SealsNitrile
    MediumClean, Dry Air (40 micron filter)
    MountIn-Line
    Mounting Holes#6-32 Thread
    Operating Pressure50 psig (14 l/min @ 50 psig)
    Poppet Travel0.007"
    Port Size#10-32 Female In-Line
    Response Time5 to 10 milliseconds (nominal) @ 25 psig
    Temperature Range32 to 180°F (0 to 82°C)
    TypeStandard
    UnitImperial
    Voltage24 VDC
    Wattage0.67 Watts
    Weight0.1700
    Wire ConnectorAMP #103959-1
