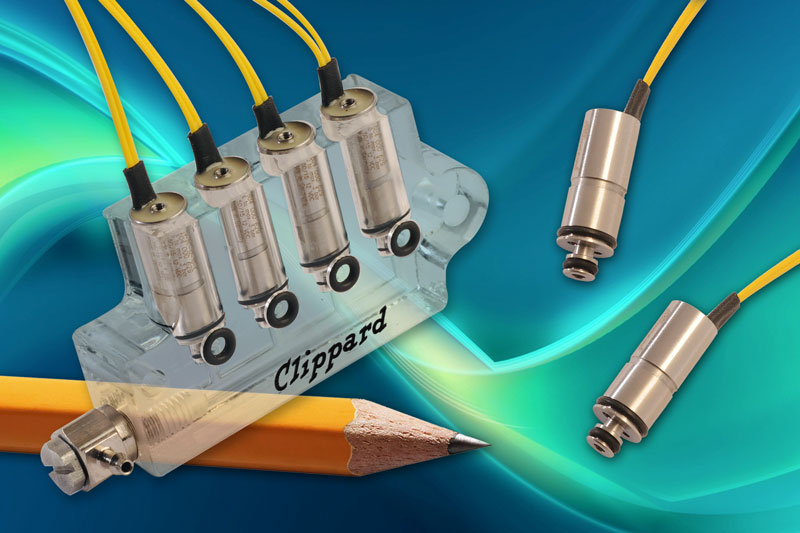

Clippard Miniature 7 mm Electronic Valves Available Online

These direct actuating valves offer an extremely fast response time for accurate dosing of minute volumes. Due to very low moving weights, they are extremely quiet and emit very low vibration. Subminiature size and low energy consumption make them ideal for transportable and mobile systems, among others.

The SV series valves can be fully customized according to the user's unique requirements. Consult Clippard with your specific application.

Clippard SV Series 7 mm 2-Way Normally-Closed Electronic Valves
Features:

• Expected life of over 1 billion cycles*
• Extremely minimal dead volume
• Low vibration and noise
• Fast response time
• Low energy consumption
• 100% tested



The same long life you depend on from Clippard's original EV line of electronic valves!


Valve Type: 2-Way and 3-Way Normally-Closed
Medium:  Air, Gas or other Compatible Fluids
Nominal Power:  0.5 to 1.2 watts
Response Time:  <5 ms*
Coil Resistance:  700.0
Temperature Range:  Up to 122°F (50˚C)
Electrical Connection:  3” (80 mm) Wire Leads
Voltage:  12 or 24 VDC
Mounting:  Cartridge
Weight:  0.14 oz (4.0 grams)
Wetted Materials:  Stainless Steel
Seal Material:  FKM standard. EPDM available

* under certain conditions

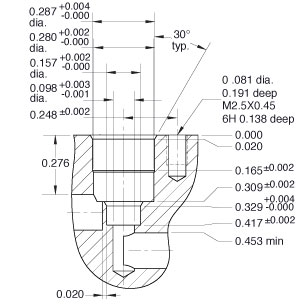

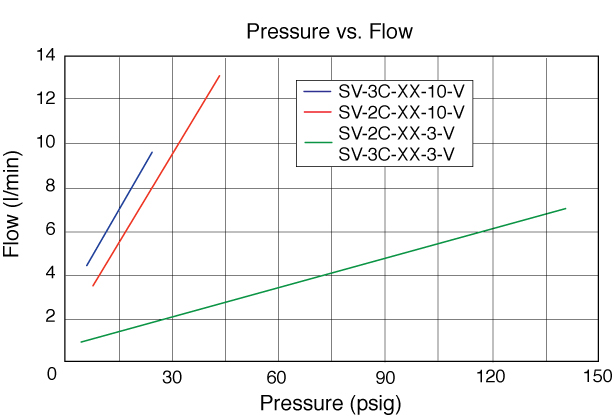

SV Series Flow ChartSVM Bore Drawing
