CR-ETO-3M-12

   Product will ship within 15 business days
CR-ETO-3M-12

More Views

Get CAD files:

Details

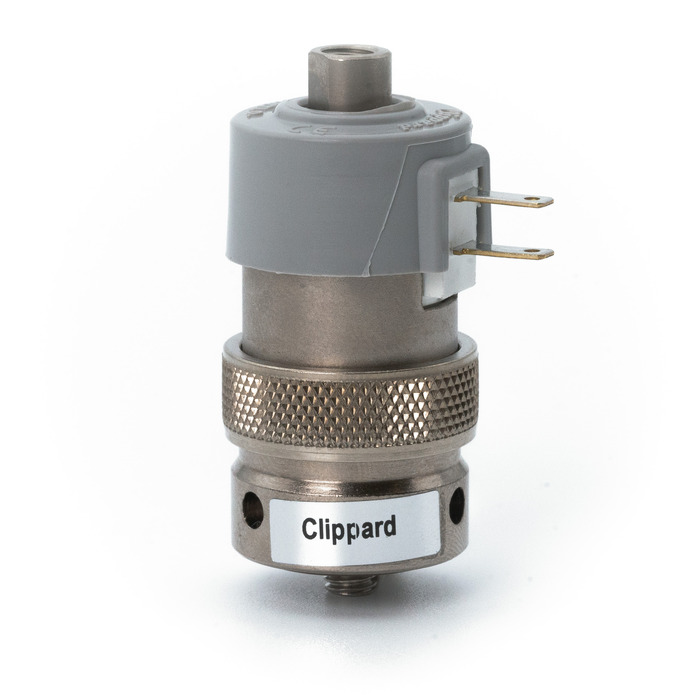

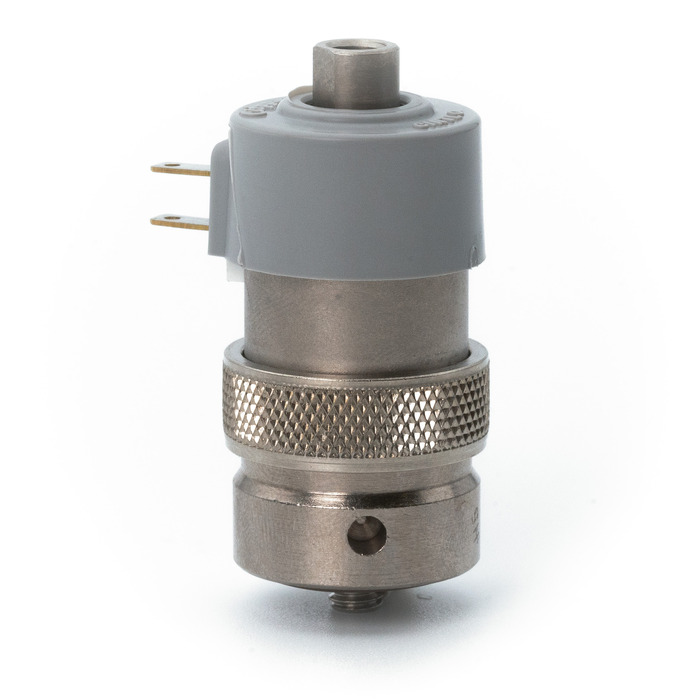

3-Way Elec. Valve, Manifold Mount, Spade Term., 12 VDC
See Catalog: Page 183

Uses

Normally-Closed, Normally-Open, Selector, or Diverter

Additional Information

Accessories2020 2021 EVB-2 EVB-3
Available SealsFKM Standard, Nitrile, EPR & Silicone Available
Connection0.110" Terminal Spades
Connector P/NET-C48 or ET-C120 or 3831-1-PKG
CyclesOver 1 Billion
Flow0.6 scfm @ 100 psig (17 L/min @ 7 bar)
Function3-Way Fully-Ported
ManifoldsManifolds
MaterialNickel Plated Brass Body & Core (CR-: Stainless Steel Core)
MediumClean, Dry Air (40 micron filter)
MountManifold Mount
Poppet Travel0.007"
Power Consumption1.2 Watts
Pressure Range28" Hg Vac. to 105 psig
Response Time5 to 10 milliseconds (nominal) @ 25 psig
SealsNitrile
SeriesCorrosion-Resistant
Voltage12 VDC
