C33-PKG

More Views

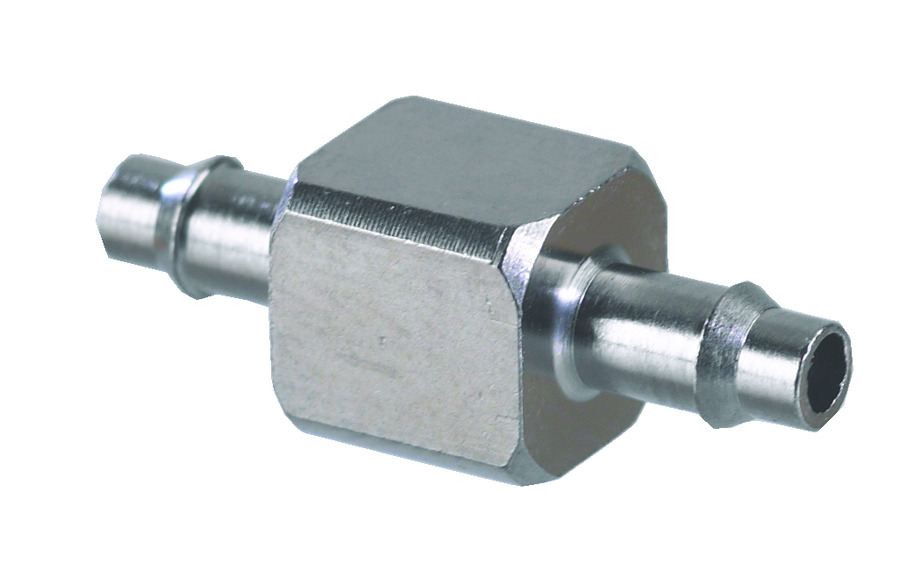

C33-PKG

Minimatic barb fittings provide a flexile, easy alternative to ferrule and push-to-connect/push-quick fittings. Designed for use with urethane hose, barb fittings will provide a leak-free connection that will hold well behond the working pressure of the hose without the need for additional clamps.
Estimated to ship within 5 business days
Lead times may vary based on quantity and availability. Please contact us for the most accurate and up-to-date information.
Packages (5 ea.)
Contact your local Clippard Distributor for volume discounts.

  • Miniature size provides low profile
  • Electroless Nickel-Plated Brass
  • Available with many hose barb sizes
  • Holds to the burst pressure of polyurethane hose

    • AccessoriesIf ordering bulk, seals must be ordered separately: Nitrile: 11761-2, FKM: 11761-8, Nylon 11761-4
    Bottom Port3/32" Hose Barb
    Clippard Tubing3/32" I.D. Tubing
    Fitting MaterialElectroless Nickel Brass
    Hex Size1/4" Square
    Length0.712
    PackagingPackage
    Product Line BrochureMechanical Valves
    Top Port3/32" Hose Barb
    Weight (lbs.)0.0050
    Get CAD files:

    Notes

    Minimatic® barb fittings provide a flexible, easy alternative to ferrule and push-to-connect design fittings for a leak free connection. Designed for use with Clippard's Polyurethane hose
