SS-SDD-12-1

   Product will ship within 3 business days
SS-SDD-12-1

More Views

Get CAD files:

Details

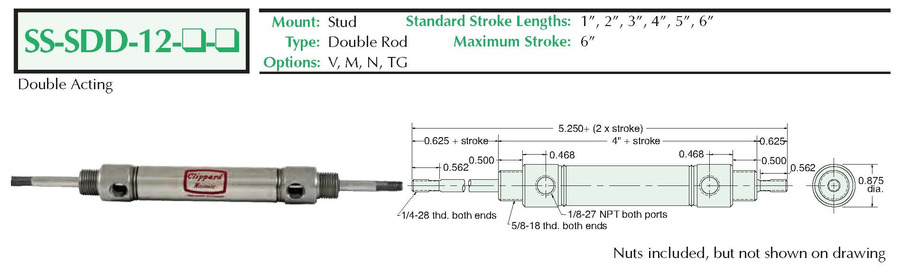

3/4" Bore All S/S Cylinder, Stud Mount, Double Rod, 1"
See Catalog: Page 67

Additional Information

Bore3/4"
Clevis Bracket SkuCB-1795-SS
Cylinder TypeDouble-Acting (D)
Length5" (not including rod)
Magnetic PistonNo
Materials, End Caps303 Stainless Steel
Materials, Rod303 Stainless Steel
Materials, Rod BushingRulon®
Materials, Tube304 Stainless Steel
MountFront Stud (S)
Pressure, Max250 psi
Rod Clevis SkuRC-1281-SS
Rod Nut SkuN04-28A-SS
Rod Thread Dia.1/4-28
Rod TypeDouble End (D)
Seal MaterialNitrile
Stroke1"
Stud NutN10-18-SS (included)
Temperature, Max230°F (400° with FKM)
Temperature, Min-20°F
[[part:N10-18-SS]]N10-18-SS
