PV-1P

   Product will ship within 1 to 2 business days
PV-1P

More Views

Get CAD files:

Details

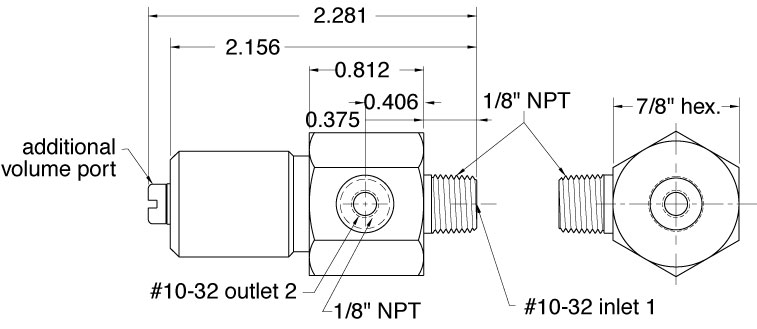

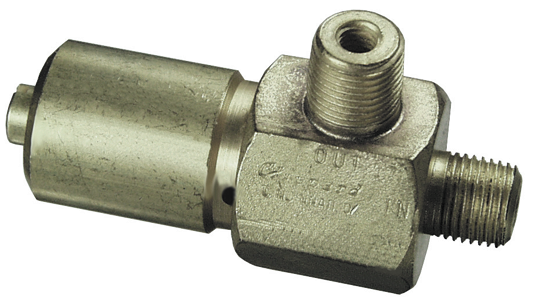

Pulse Valve, 1/8” & #10-32 Ports

Notes

A Normally-Open 3-Way valve that closed shortly after being pressurized and remains closed until supply pressure is exhausted and repressurized. Widely used in control circuits.
See Catalog: Page 166

Uses

#10-32 Volume Chamber

Additional Information

ExhaustHole to atmosphere
Input PSI40 to 150 psig
Max PSI150 psig
MediumAir
Mount1/8" NPT thread. Nut furnished.
Ports1/8
Weight0.2300
