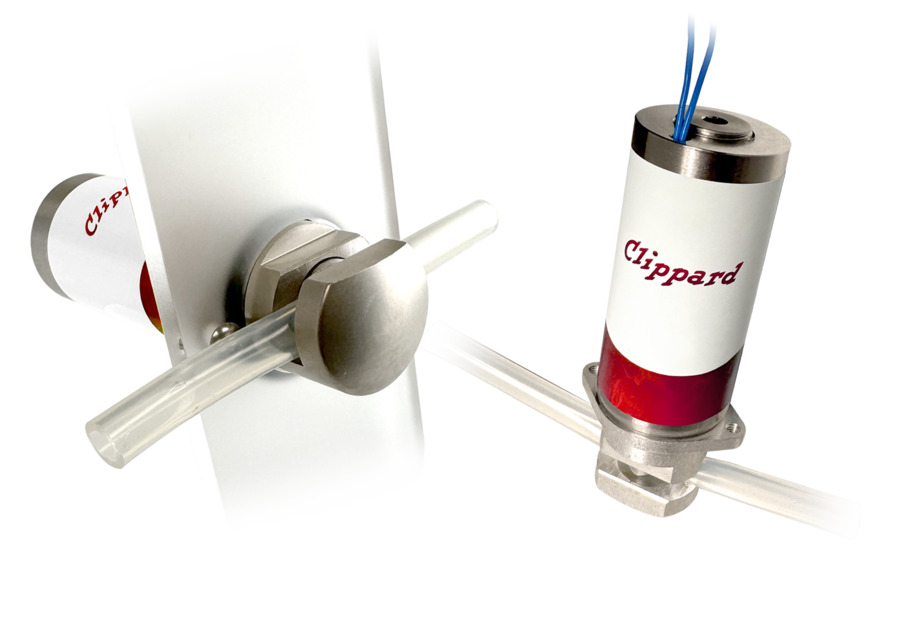

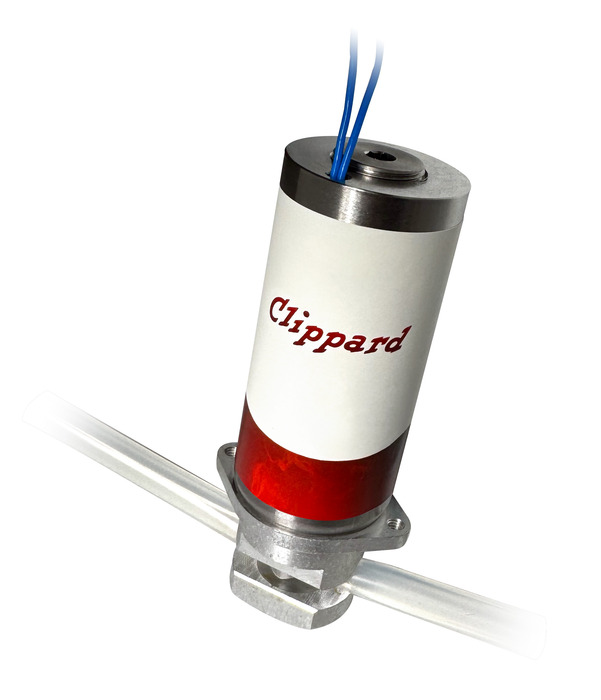

NPV7-1CP-06-24

Clippard’s high flow pinch valve provides the same functionality as the standard series but with the added benefits of a longer stroke. This makes it ideal for applications that require greater flow or those that utilize viscous or particulate-laden media. As with all Clippard pinch valves, each valve comes pre-installed with 12” (30 cm) of your choice of standard medical/laboratory grade or sanitary food grade silicone tubing.
Sorry, this combination of options is not available online.
Contact your nearest distributor for pricing.
  • Unobstructed flow path
  • Each valve comes with 12" (30 cm) of silicone tubing pre-installed
  • Tubing is easily replaceable
  • Higher flow
  • Longer stroke

Applications

  • Medical and analytical testing
  • Dialysis
  • Blood analysis and processing
  • Peptide synthesis
  • DNA synthesis
  • Bioreactors
  • Bioprocessing
  • Inkjet printing
  • Liquid and gas chromatography
  • Drug manufacturing
  • Chemical processing
  • Controlling the flow of chemical liquids and slurries
  • Waste and wastewater treatment
  • Precision control of chemical injections
  • Food processing
  • Pulp processing
  • Handling abrasive or viscous fluids
2D DrawingsFile
Applications FormApplications Form
Connection18" (45 cm) Wire Leads
Data SheetData Sheet
DocumentationIEC, RoHs
Function2-Way Normally-Closed
Length4.570" (116.1 mm)
Material, BodyStainless Steel and Aluminum (ENP)
Material, TubeSilicone
Material, WettedSilicone Tubing (no wetted areas in valve)
Max psi20 psi (1.4 bar)
Max. Panel Thickness1/4" (6.4 mm)
MediumAir, Water, Gas, or Compatible Fluids
MountPanel
Operating Pressure0 to 20 psig (0 to 1.4 bar) with standard medical/laboratory grade silicone tubing
Operating Temperature Range-20 to 158°F (-29 to 70°C)
Product Line BrochureIsolation Valves
Response Time50 ms
Silicone TubingMedical/Laboratory Grade
Thread Depth#2-56 (max. 0.094")
Tubing (mm)3/16" (4.8) ID-5/16" (7.9) OD
Tubing, Durometer Hardness50 Shore A
Tubing, Elongation at Break815%
Tubing, Modulus at 200%299 psi (21 bar)
Tubing, Tear Strength263 ppi
Tubing, Tensile Strength at Break1,388 ppi
Tubing, Wall Thickness1/16" (1.6 mm)
Voltage24 VDC
Wattage72 Watts
Weight0.21
